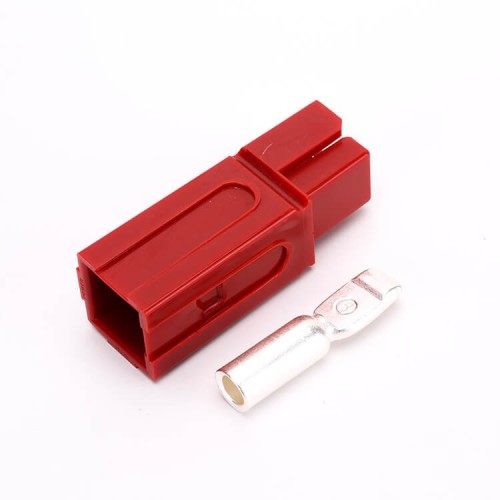

1 Way Power Connector Quick Connect Disconnect 600V 180Amp Battery Cable Connector (Red Housing, 1.0/2/4/6AWG)

Connector-SD180:

Rated Current(Amperes): 180A

Rated Voltage(Volts): 600V

Material of Terminal: Red Copper

Housing material: PC

Housing Size: 82.3 * 30 *30 (mm)

Flammability: UL94 V-0

Terminal-SD180:

Terminal material: Silver Plated Copper

Terminal Size: 3 different type (Pls check the drawing below)

Suitable for Cable Size: 1.0AWG, 2AWG, 4AWG

Termination Type: Terminals can be either crimped or soldered to the cables

Feature:

[Application] Heavy-duty & multipurpose universal battery quick connector set from Driver Recovery Products. Provides a simple and convenient method for connecting/disconnect power to a winch or other electrical device such as remote battery chargers, power inverters, solar setups, trailers, or for any purpose requiring a high-current, quick-disconnect connector.

[Durable] Combined shell made from sturdy PC fire-retardant materials, allowing for over 10,000 connect/disconnect actions. With fitted rubber boot covers, protect against dust, moisture, and corrosion

[Safe] Both ends are suitable for connection to the power or load side because of their identical connectors. The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another, preventing accidental reverse polarity when hooking up a charger.
