10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount
10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

Features:

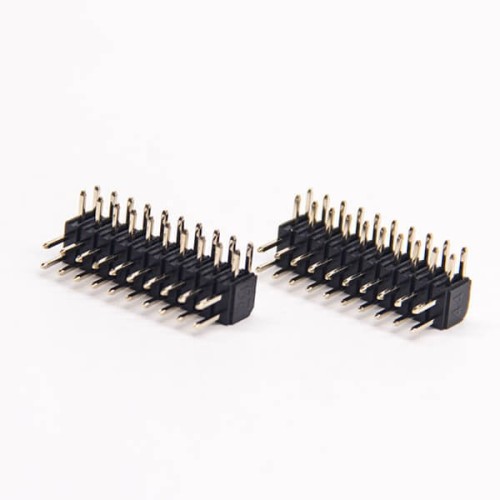

  • Pin Header Connector,Male/Plug,Right Angled/90°,20Pin,2.0mm,Dual Row,Through Hole,PCB Mount,Solder Type,Gold Plating，Black,Square
  • Normally associated with ribbon cable connectors, or worked as recipients for jumpers
  • consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$6.69
Ex Tax: $6.69
10 or more $6.15
30 or more $5.69
50 or more $5.35
100 or more $5.02
  • Stock: In Stock
  • Model: JE00009466
  • Weight: 8.60g
  • SKU: JE00009466
Products Sold: 0
Product Views: 5
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Through Hole
Insulator Colour black
Number of Positions 20pin
Continuous plating Gold
Direction Right Angle
Number of Rows 2
Spacing 2.0mm
Contact Shape Circular
Installation method PCB Mount
  • Description

Main Application

  • Electronic device
  • Home appliances
  • Electrical instruments
  • Automotive: Car navigation LCD panel and so on.
  • Lighting industry
  • The above applications are typical but not limited, these products are widely use in many fields

Electrical Characteristics

  • Current Rating: 1.5 Amp
  • Insulation Resistance: 1000M ohms min
  • Contact Resistance: 20M ohms max
  • Dielectric Withstanding: AC500V
  • Contact Material: Copper Alloy
  • Insulator Material: PA6T,UL 94V-0 Black

Mechanical characteristics

  • Durability (Gold finish)：300 mating cycles
  • Durability (Tin finish)：50 mating cycles
  • Insertion force：2N max per contact
  • Withdrawal Force：0.3N min per contact

Environmental and Processing

  • Operating Temperature: -40°C to +105°C
  • LCP Suitable For: IR Reflow, Wave, Manual solder

10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

  • Reviews

There are no reviews for this product.

Write a review

Note: HTML is not translated!
Bad           Good
Quickview
SGM-0.33 SGM-0.33
New
SGM-0.33
Product ParametersMaterial Feature Material (Contacts) Copper Alloy Surface (Contacts) Gold-plating RoHS Meet Exemption Criteria ELV Status Me..
