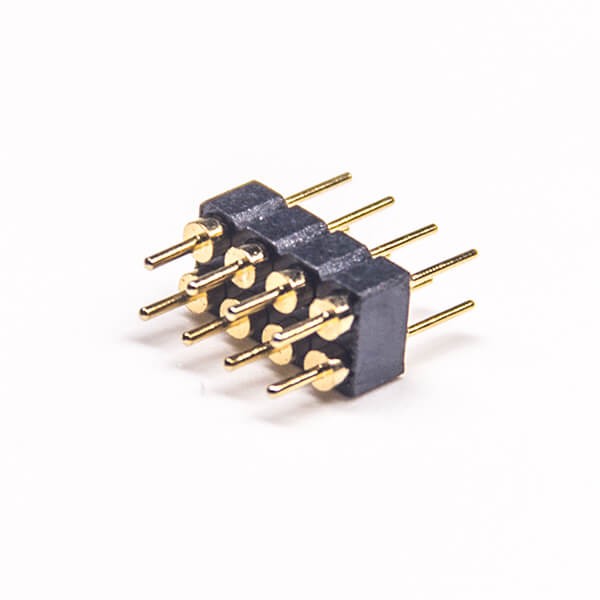

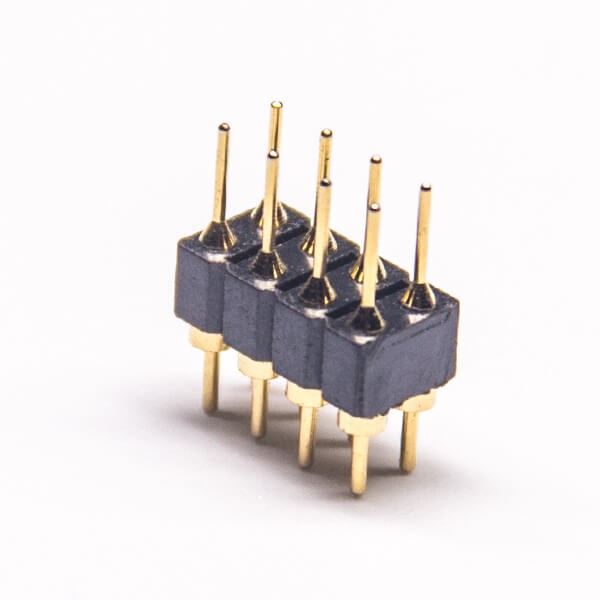

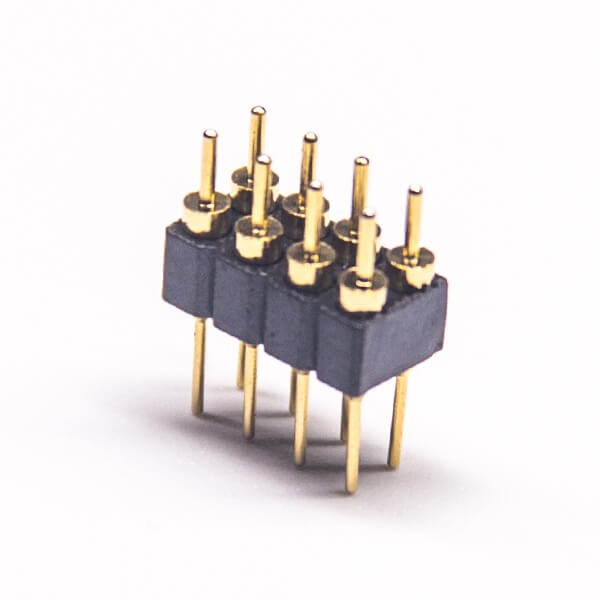

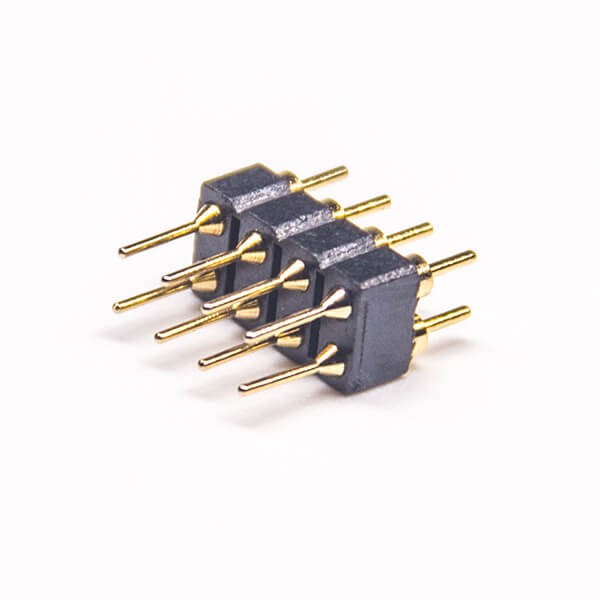

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type

Features:

  • Pin Header Connector,Male/Plug,Straight/180°,2.54mm,8Pin,Double Row,DIP Type,Circular Holes,Solder Type，Gold Plating,H3.0mm,Circular, Black
  • Normally associated with ribbon cable connectors, or worked as recipients for jumpers
  • consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$4.29
Ex Tax: $4.29
10 or more $3.95
30 or more $3.65
50 or more $3.43
100 or more $3.22
  • Stock: In Stock
  • Model: JE00009471
  • Weight: 8.60g
  • SKU: JE00009471
Products Sold: 0
Product Views: 1
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Through Hole
Insulator Colour black
Number of Positions 8 pin
Continuous plating Gold
Direction Straight
Number of Rows 2
Spacing 2.54mm
Plastic High 3.0mm
Contact Shape Square
Installation method PCB Mount
  • Description

Main Application

  • Electronic device
  • Home appliances
  • Electrical instruments
  • Automotive: Car navigation LCD panel and so on.
  • Lighting industry
  • The above applications are typical but not limited, these products are widely use in many fields

Electrical Characteristics

  • Current Rating: 1.5 Amp
  • Insulation Resistance: 1000M ohms min
  • Contact Resistance: 20M ohms max
  • Dielectric Withstanding: AC500V
  • Contact Material: Copper Alloy
  • Insulator Material: PA6T,UL 94V-0 Black

Mechanical characteristics

  • Durability (Gold finish)：300 mating cycles
  • Durability (Tin finish)：50 mating cycles
  • Insertion force：2N max per contact
  • Withdrawal Force：0.3N min per contact

Environmental and Processing

  • Operating Temperature: -40°C to +105°C
  • LCP Suitable For: IR Reflow, Wave, Manual solder

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type

10pcs 8 Pin Header 2X4 Dual Row Circular Holes 180 Degree 2.54mm Gap DIP Type
