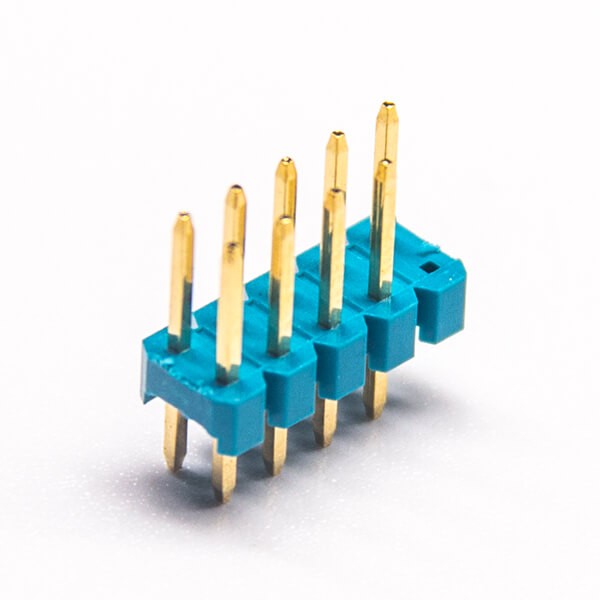

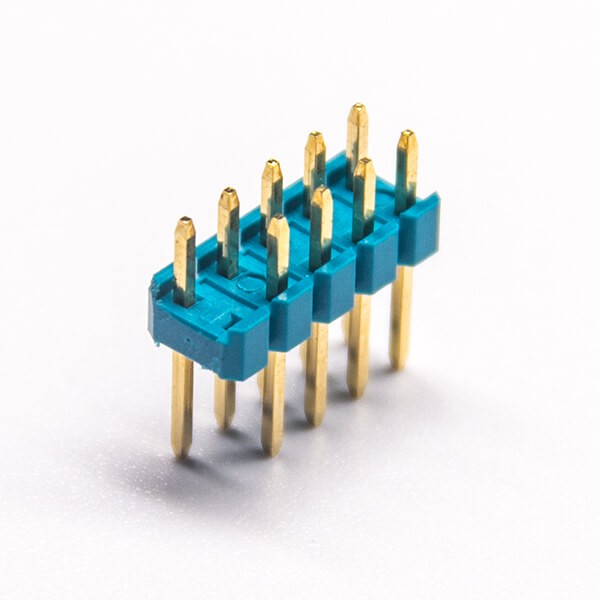

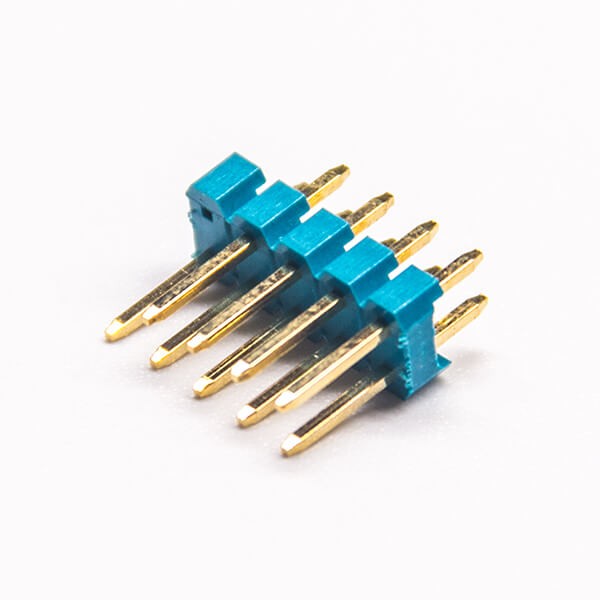

10pcs Header 9 Pin Dual Row Green Plastic Through Hole

Main Application

• Electronic device
• Home appliances
• Electrical instruments
• Automotive: Car navigation LCD panel and so on.
• Lighting industry
• The above applications are typical but not limited, these products are widely use in many fields

Electrical Characteristics

• Current Rating: 1.5 Amp
• Insulation Resistance: 1000M ohms min
• Contact Resistance: 20M ohms max
• Dielectric Withstanding: AC500V
• Contact Material: Copper Alloy
• Insulator Material: PA6T,UL 94V-0 Black

Mechanical characteristics

• Durability (Gold finish)：300 mating cycles
• Durability (Tin finish)：50 mating cycles
• Insertion force：2N max per contact
• Withdrawal Force：0.3N min per contact

Environmental and Processing

• Operating Temperature: -40°C to +105°C
• LCP Suitable For: IR Reflow, Wave, Manual solder
