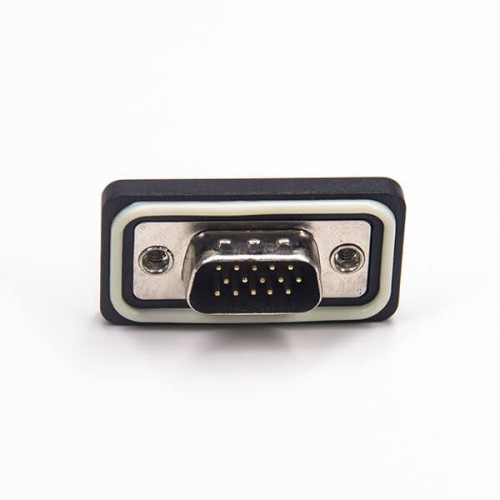

15 pin d sub connector Standard IP67 type 3 Rows Through Hole Panel Mount With Harpoon 20pcs
Features:
- Waterproof D-sub,Plug,15 Pin,3 Rows,Single Port,Straight Type,Machined Pin,Gold plated,Vertical PCB Mount,IP67,Without Filtered.
- Interfacial seal to ensure function even when immersed;
- Better against mechanical impacts during installation;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- industrial machinery
- medical equipment
- test and measurement equipment
communications
from
$188.82
Ex Tax: $188.82
- Stock: In Stock
- Model: JE00004036
- Weight: 25.00g
- SKU: JE00004036
Products Sold: 0
Product Views: 6
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | Solder Type |
Installation characteristics | Shell (M3.0) |
Connector Type | Plug |
Number of Positions | 15 pin |
Continuous plating | machined pin |
Direction | Straight |
Number of Rows | 3 |
Filter | No |
Waterproof level | IP67 |
Port number | Single |
Installation method | PCB Mount |
- Description
Electrical Characteristics
- Contact resistance:10 mOhm
- Current rating signal:7,5 A
- Dielectric with standing voltage signal:1000 V
- Working voltage signal:125 V
- Test voltage:1000V
Mechanical Characteristics
- Extraction force:30N
- Insertion force:30N
Environmental Characteristics
- Operating Temperature:-25°C~ +125°C
Material:
Part | Material | Finish |
Body | steel | Tin |
Center Contact Pin | Copper alloy | hard acid gold over nickel |
Insulator | Polyester GF, UL 94V-0 | ------ |
