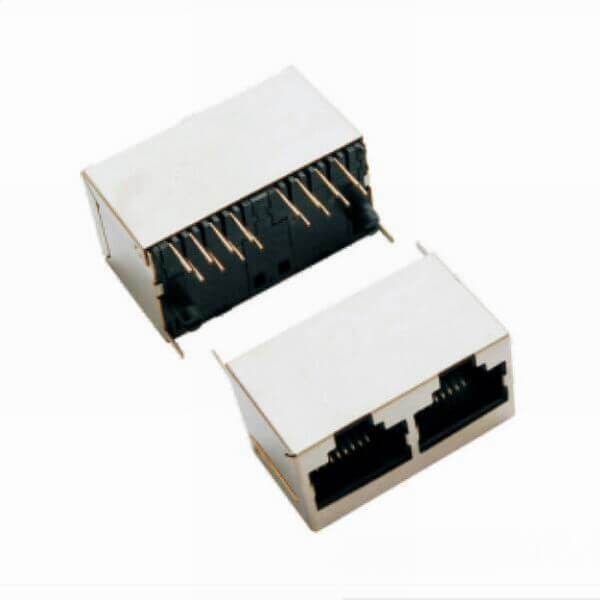

180 Degree RJ45 Connector 1*2 Jack Dual Port Shield Network Socket without Led

180 Degree RJ45 Connector 1*2 Jack Dual Port Shield Network Socket without Led
180 Degree RJ45 Connector 1*2 Jack Dual Port Shield Network Socket without Led

Features:

  •  RJ45 Connector,Jack,8P8C,2 Ports,1*2,Single Row,Straight(180°),Gold Plated,Through Hole,PCB Mount,Shield,Without Led,Without Filtered,Without POE,Not Waterproof
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
from
$3.49
Ex Tax: $3.49
10 or more $3.21
30 or more $2.97
50 or more $2.79
100 or more $2.62
  • Stock: In Stock
  • Model: JE00006028
  • Weight: 20.00g
  • SKU: JE00006028
Products Sold: 0
Product Views: 2
  • Specifications
attribute-list
Terminal type Solder Type
Connector Type Socket
Shield shielded
Number of contacts 8p8c
Continuous plating Gold
Direction Straight
LED No
Number of Rows 1×2
Filter No
Waterproof level Not Waterproof
Port number Dual
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel

180 Degree RJ45 Connector 1*2 Jack Dual Port Shield Network Socket without Led
