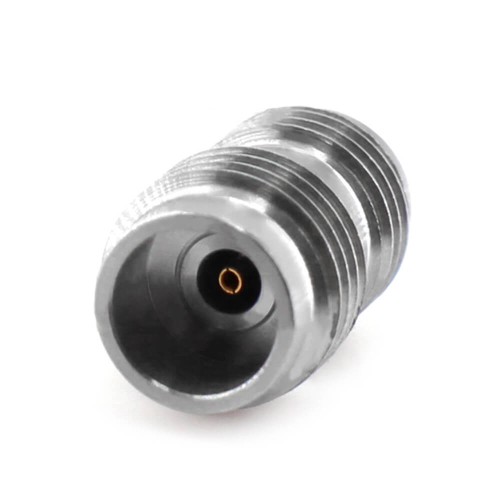

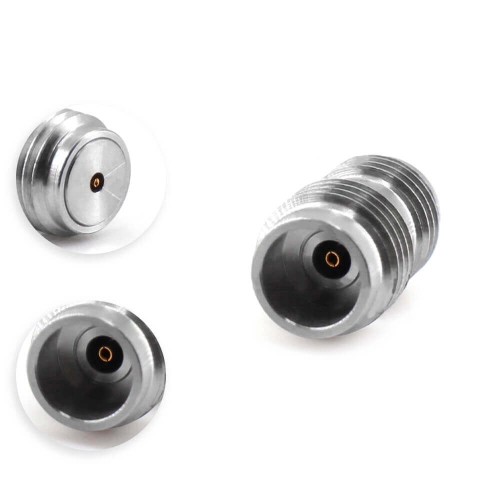

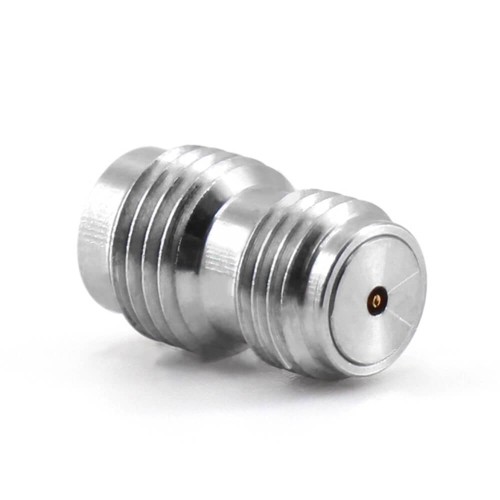

2.4Mm Female 2.4Mm-KYD Dc To 50Ghz RF Coax Connector
from
$59.14
Ex Tax: $59.14
5 or more $56.18
10 or more $53.23
- Stock: In Stock
- Model: JE00012977
- Weight: 0.02kg
- SKU: JE00012977
Products Sold: 0
Product Views: 7
Ask a Question About This Product
- Description
Appliance:
- Test and measurement systems
- Network routers and switches
- RFID
- Instrumentation test fixtures equipment
- Semiconductor ATE test boards
- Radar systems
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range:DC to 50 GHz
- VSWR:1.20 to 1.25
- Insertion Loss:.04 √ f
- Shielding Effectiveness:≥ 100 dB
Mechanical Characteristics
- Mating Torque:5 - 7 in - lbs
- Connector Durability：500 mating cycles min
- Inter-mate ability:1.85mm
Environmental Characteristics
- Temperature Range：-65°C to +165°C
Material:
| Part | Material | Finish |
| Body | Stainless Steel | sliver |
| Center Contact Pin | cube gold plated | gold |
| Insulator | PEI | white |
