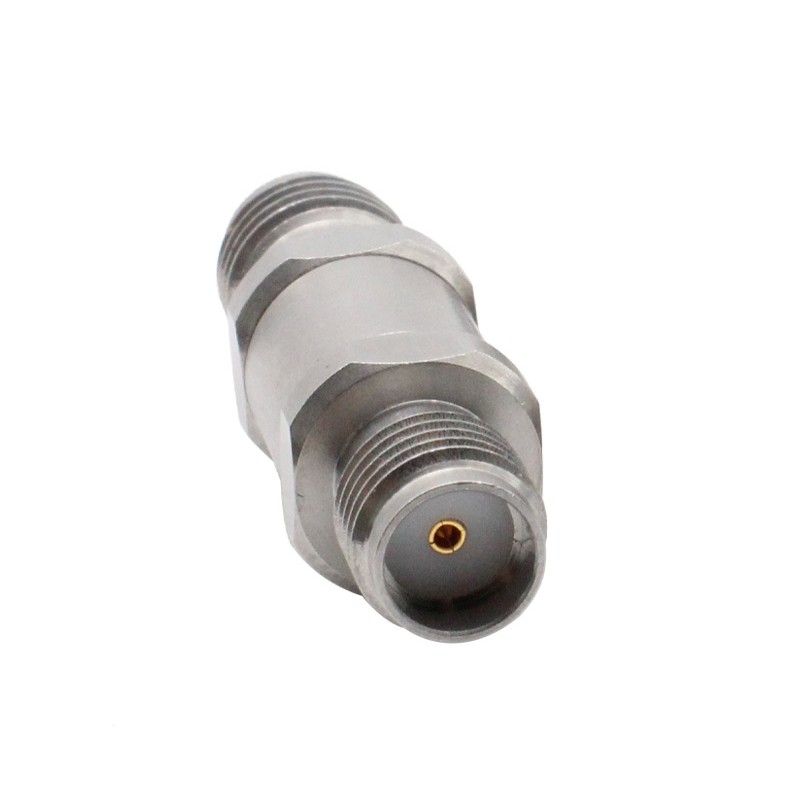

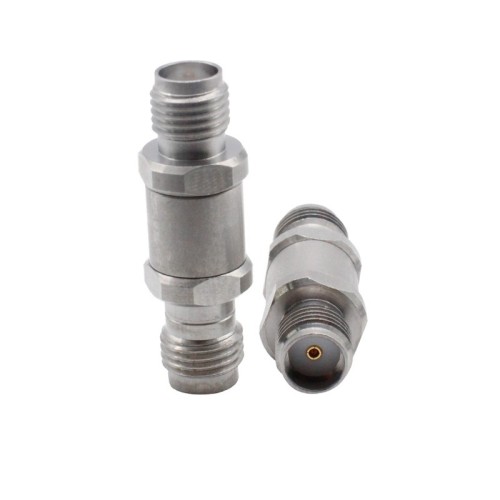

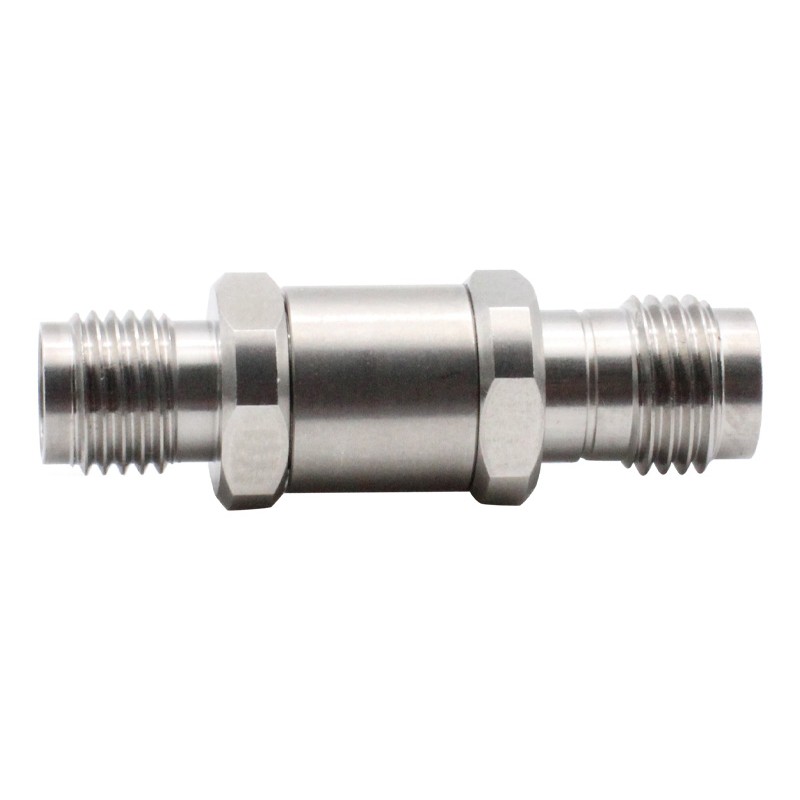

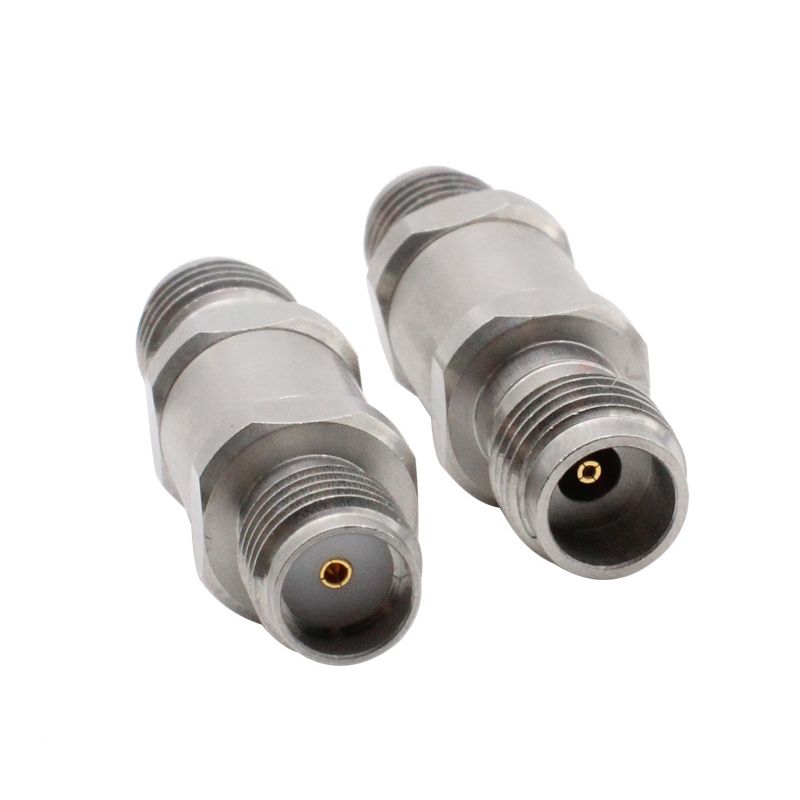

2.4mm Female Jack to SMA Female Jack Coaxial Adapter Stainless Steel 18GHz High Frequency Connector
from
$31.76
Ex Tax: $31.76
5 or more $30.17
10 or more $28.58
- Stock: In Stock
- Model: JE00012971
- Weight: 50.00g
- SKU: JE00012971
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Electrical:
- lmpedance: 50Ω
- Frequency: DC-18GHz
- VSWR: ≤1.25
- Dielectric withstanding voltage: 750v(rms)
- Center contar resistance /SMA: ≤3MΩ
- Outer contart resistance/SMA: ≤2MΩ
- Center contar resistance /2.4mm: ≤4MΩ
- Outer contart resistance/2.4mm: ≤2.5MΩ
- Insulation resistance: ≥1000MΩ
Environmenta &Mechanica:
- Temperture range: -45 ~+165°
- Rohs Compliant: RoHS
- Durability: 500cycles
Material and Plating:
- Inner Contact: beryllium-copper, gold plated
- Outer Contact: Stainless Steel,Passivated
- Insulators: PTFE
Typical Use Cases Include:
• 5G mmWave Networks and Communications Infrastructure
• High-frequency, small cell-based wireless access points
• MIMO ultra-high-speed outdoor backhaul fixed and moving wireless access points
• Test and measurement instrumentation
• High-speed, Mil-Aero, SATCOM, and instrumentation applications
