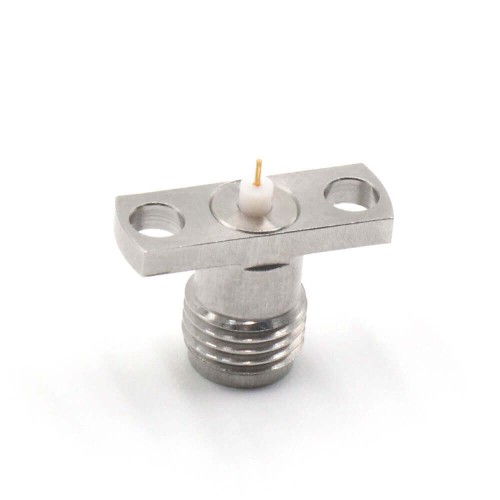

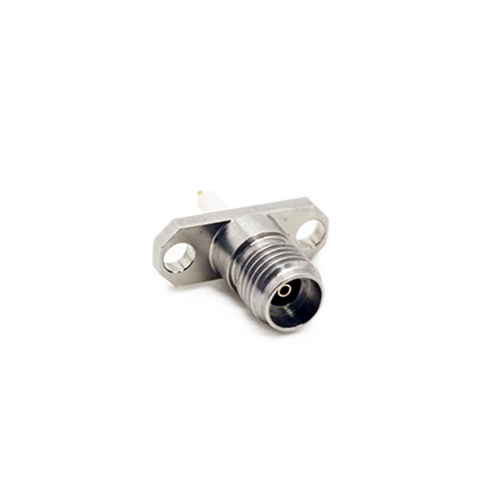

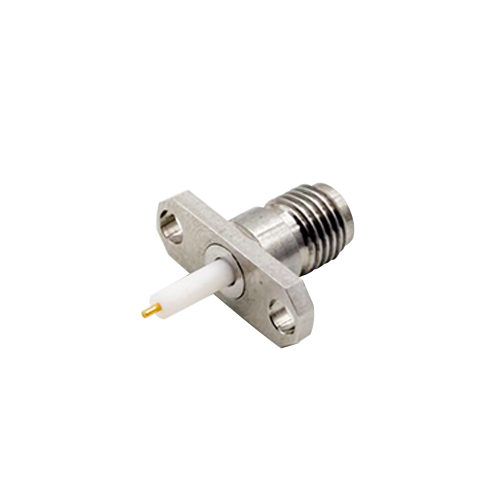

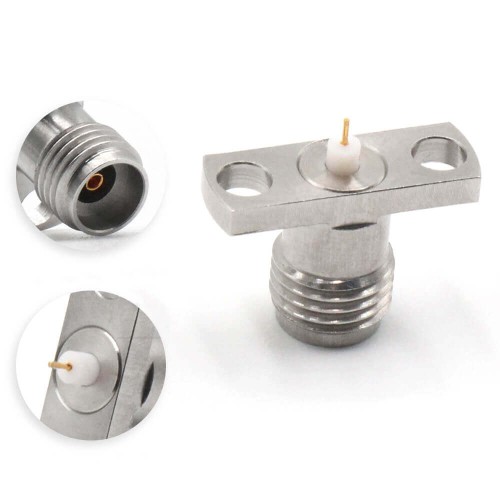

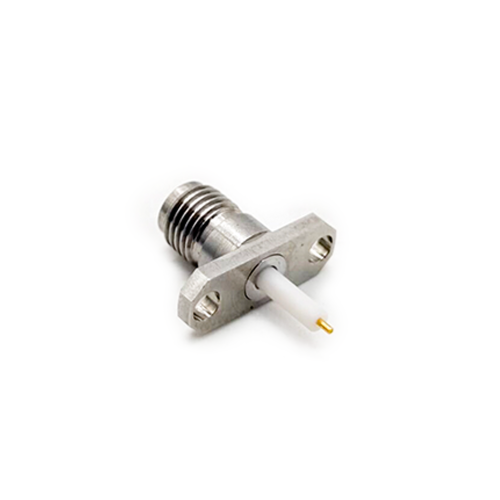

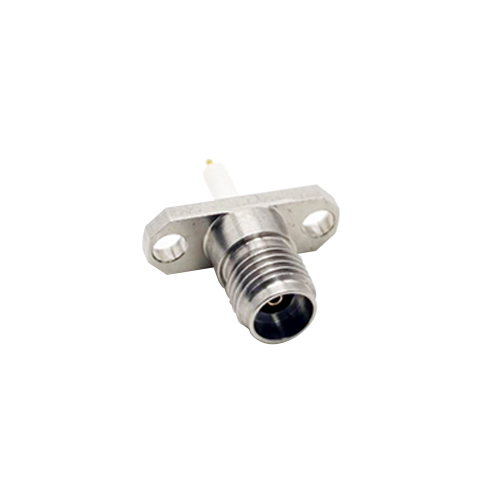

2.92Mm Female Dc To 40Ghz Pcb Mount 2-Hole Flange High Frequency RF Connector
from
$38.97
Ex Tax: $38.97
5 or more $37.02
10 or more $35.07
- Stock: In Stock
- Model: JE00013039
- SKU: JE00013039
Products Sold: 0
Product Views: 2
Ask a Question About This Product
- Description
Appliance:
- Test and measurement systems
- Network routers and switches
- RFID
- Instrumentation test fixtures equipment
- Semiconductor ATE test boards
- Radar systems
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range:DC to 40 GHz
- Insertion Loss:.04 √ f
- Shielding Effectiveness:≥ 100 dB
Mechanical Characteristics
- Mating Torque:5 - 7 in - lbs
- Connector Durability：500 mating cycles min
- Inter-mate ability:SMA, 3.5mm
Environmental Characteristics
- Temperature Range：-55°C to +135°C
Material:
| Part | Material | Finish |
| Body | Stainless Steel | sliver |
| Center Contact Pin | cube gold plated | gold |
| Insulator | PEI | white |
