2.92mm Female Jack Thread-in Flange Jack Bulkhead RF Coaxial Connector 40G for PCB
from
$25.00
Ex Tax: $25.00
5 or more $23.75
10 or more $22.50
- Stock: In Stock
- Model: JE00013023
- Weight: 2.00g
- SKU: JE00013023
Products Sold: 0
Product Views: 2
Ask a Question About This Product
- Description
Part Number: EB-DRF-0095
Description: 2.92mm Female Bulkhead Thread-in Connector

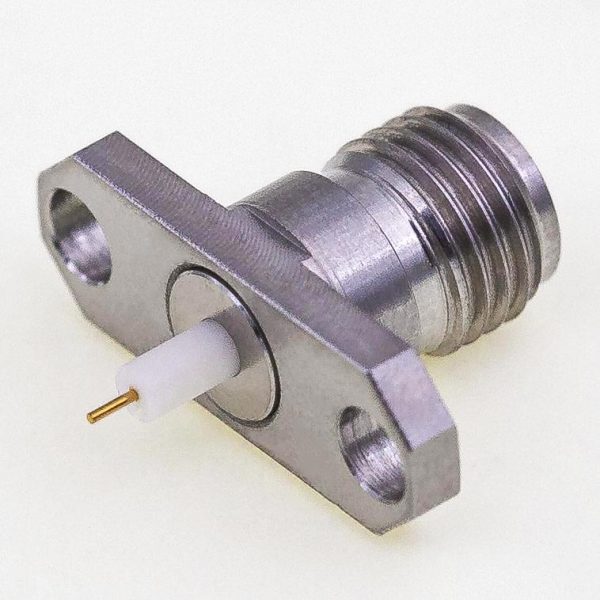

This EB-DRF-0095, 2.92mm 2 hole female bulkhead thread-in connector
frequency range from DC to 40GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~40GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 40GHz
Applications
- General Purpose Test
- Bulkhead Thread-in RF Connection
- Rack and Panel Mount Application
- Diameter 0.3mm / .012″ Pin Terminal
Key Features
| Polarity | Standard |
| Interface | 2.92mm |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 2 Hole Flange |
| Attachment Method | PCB Mount |
Performance Features
| Frequency Range | DC~40GHz |
| VSWR： | DC~40GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
