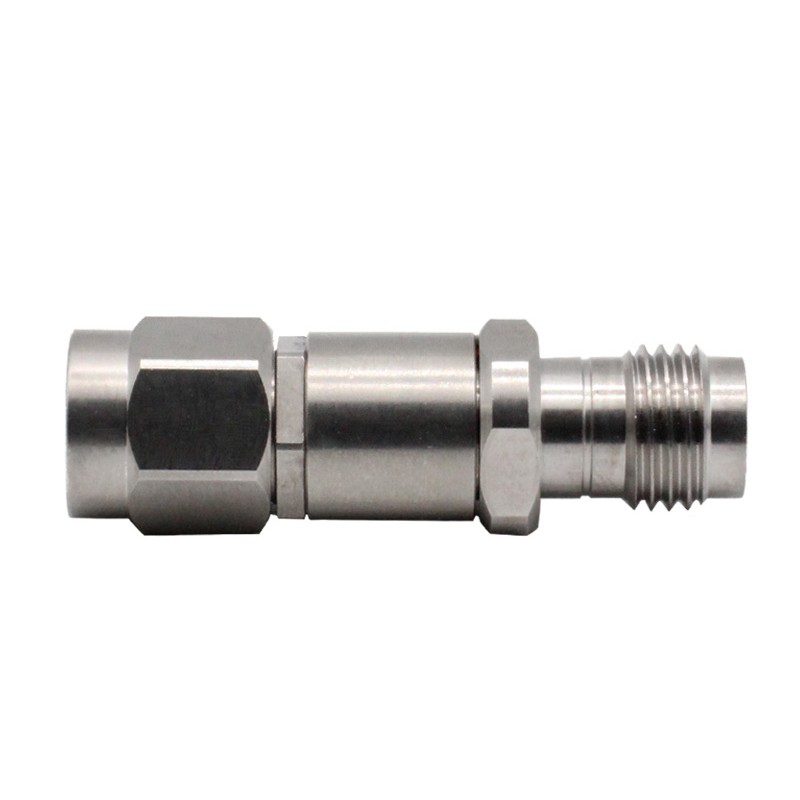

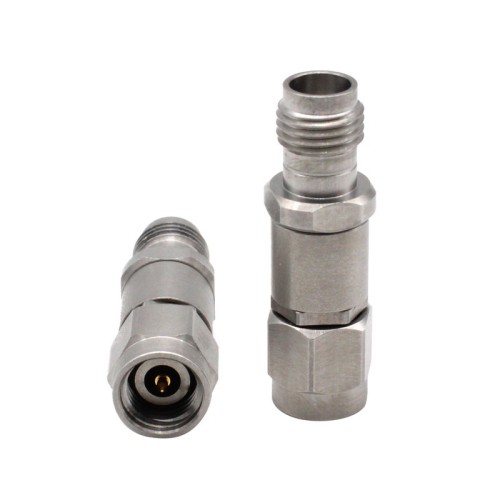

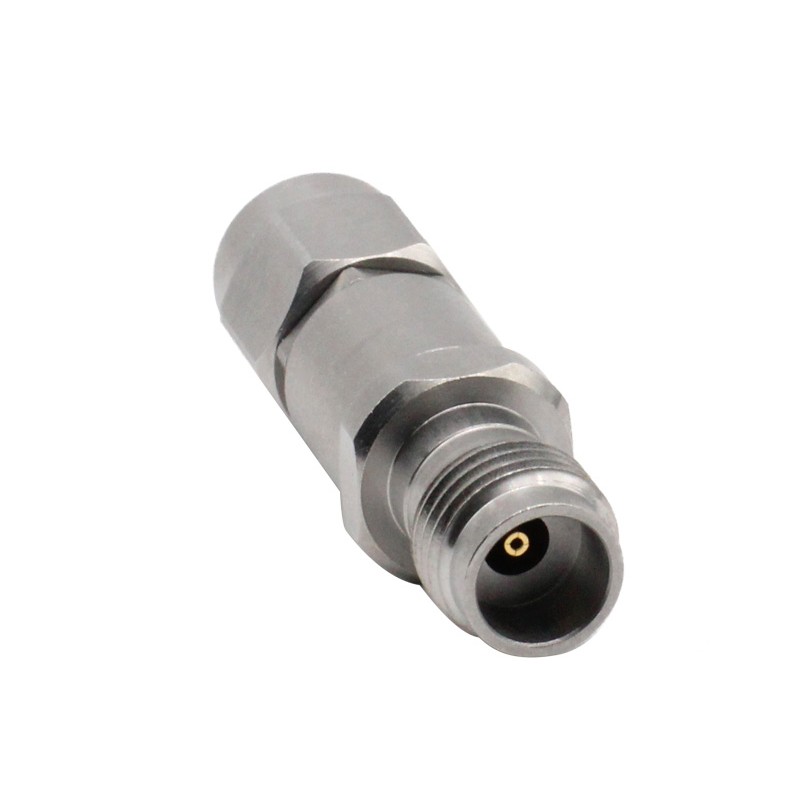

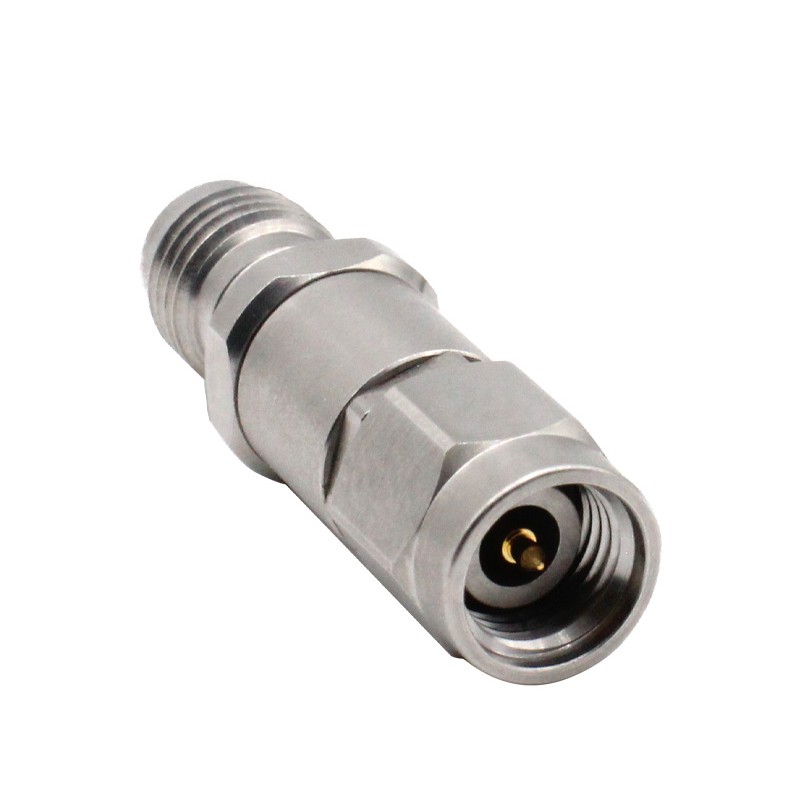

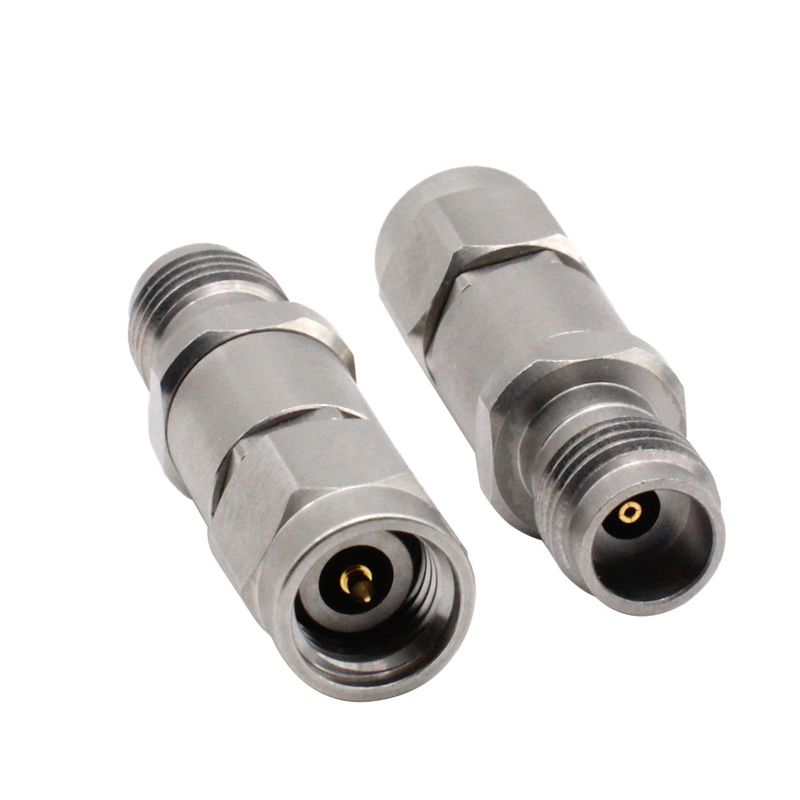

2.92mm Male Plug to 2.4mm Female Jack Coaxial Adapter Stainless Steel High Frequency Connector 40GHz
from
$37.18
Ex Tax: $37.18
5 or more $35.32
10 or more $33.46
- Stock: In Stock
- Model: JE00012968
- Weight: 50.00g
- SKU: JE00012968
Products Sold: 0
Product Views: 2
Ask a Question About This Product
- Description
Electrical:
- lmpedance: 50Ω
- Frequency: DC-40GHz
- VSWR: ≤1.2
- Dielectric withstanding voltage: 750v(rms)
- Center contar resistance /2.92mm: ≤3MΩ
- Outer contart resistance/2.92mm: ≤2MΩ
- Center contar resistance /2.4mm: ≤4MΩ
- Outer contart resistance/2.4mm: ≤2.5MΩ
- Insulation resistance: ≥1000MΩ
Environmental &Mechanical:
- Temperture range: -45 ~+165°
- Rohs Compliant: RoHS
- Durability: 500cycles
Material and Plating:
- Inner Contact: beryllium-copper, gold plated
- Outer Contact: Stainless Steel,Passivated
- Insulators: PEI
Typical Use Cases Include:
• 5G mmWave Networks and Communications Infrastructure
• High-frequency, small cell-based wireless access points
• MIMO ultra-high-speed outdoor backhaul fixed and moving wireless access points
• Test and measurement instrumentation
• High-speed, Mil-Aero, SATCOM, and instrumentation applications
