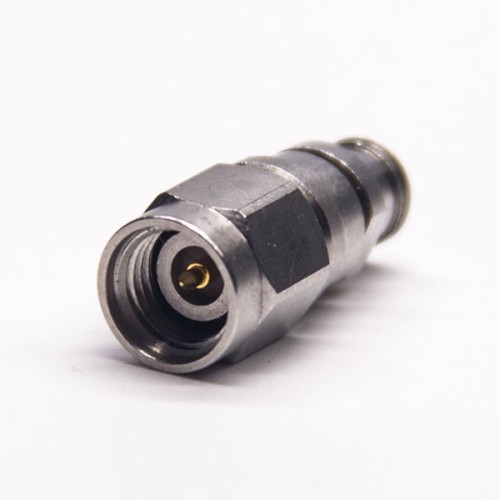

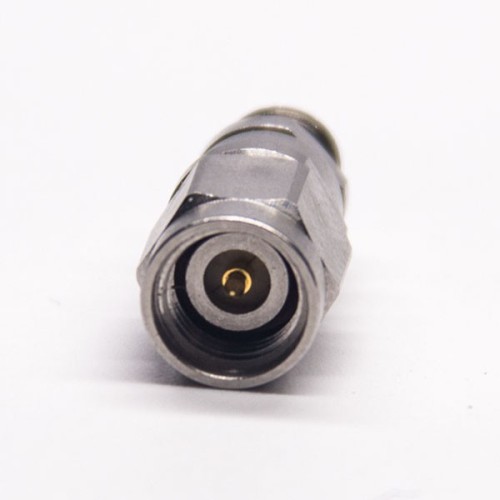

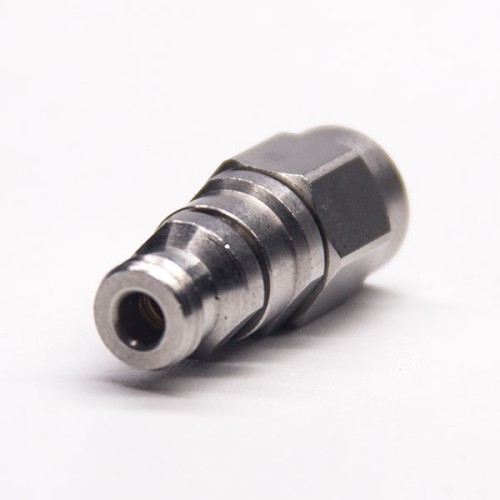

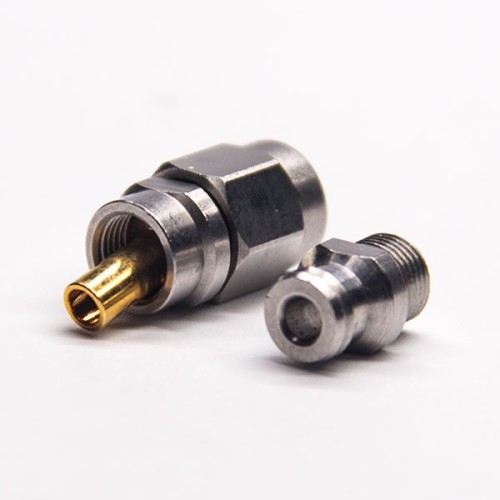

2.92MM Microwave Connector 50GHz Straight Male for Cable

Applications:

• High Speed Digital
• Instrumentation
• Military
• Aerospace
• Satellite Communication Equipment (SATCOM)
• Cable Assemblies
• Test and measurement

Electrical Characteristics

• Impedance: 50 Ohm
• Frequency range: DC~40GHz
• Voltage rating: 250 V(rms)
• Center contact resistance: <3.0mΩ
• Outer contact resistance: <2.0mΩ
• Insertion loss: <.05 sqrt(f(GHz)) dB
• VSWR: <1.30

Mechanical Characteristics

• Center contact retention force: >20 N
• Coupling test torque: 1.70 Nm
• Recommended torque: 0.8 Nm to 1.10 Nm
• Durability: >500 cycles

Environmental Characteristics

•  Temperature Range：-65 ℃~+165 ℃
