Features:

  • High frequency connector,Microwave connector,2.92mm Connector,Male,straight,standard, 50 Ohm,pcb mount,flange,stainless steel
  • Frequency range DC to 40 GHz (usable to 46 GHz)
  • Low VSWR
  • Low RF LeakageSuperior reliability
  • Compatible with SMA and 3.5mm connector series
from
$40.00
Ex Tax: $40.00
5 or more $38.00
10 or more $36.00
  • Stock: In Stock
  • Model: JE00013078
  • Weight: 4.00g
  • SKU: JE00013078
Products Sold: 0
Product Views: 2
  • Specifications
attribute-list
Body Material Steel
Terminal type Solder Type
Installation characteristics 2 Hole Flange
Gender Male
Function Other
Direction Straight
Polarity Standard
Impedance 50 Ω
Installation method PCB Mount / Panel Mount
Outer conductor connection Without
  • Description

Applications:

  • High Speed Digital
  • Instrumentation
  • Military
  • Aerospace
  • Satellite Communication Equipment (SATCOM)
  • Cable Assemblies
  • Test and measurement

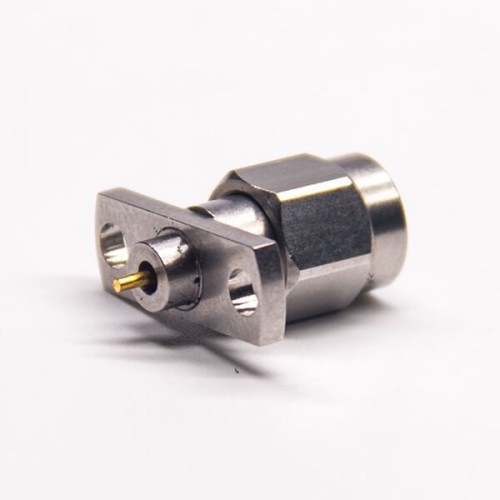

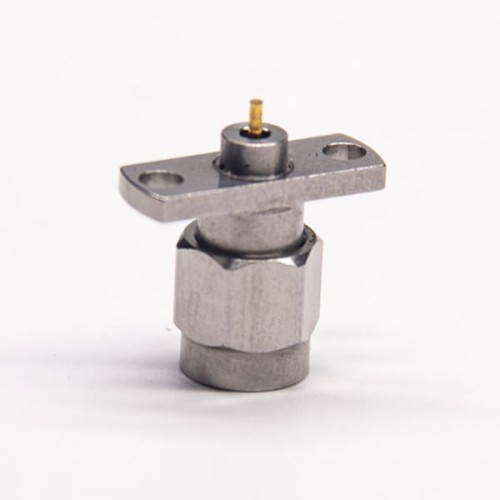

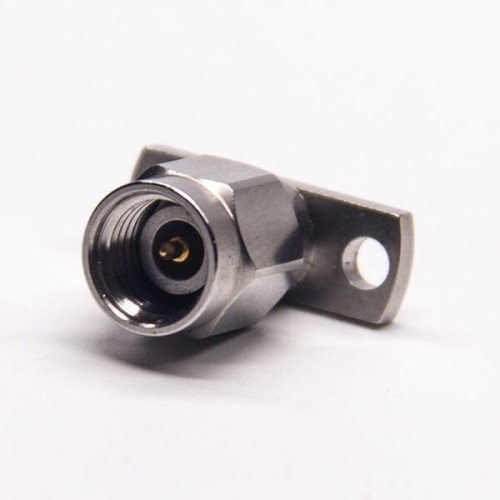

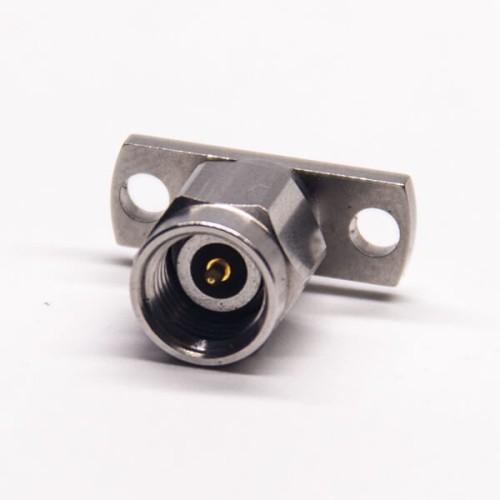

2.92mm Microwave Flange Male Connector


Electrical Characteristics

  • Impedance: 50 Ohm
  • Frequency range: DC~40GHz
  • Voltage rating: 250 V(rms)
  • Center contact resistance: <3.0mΩ
  • Outer contact resistance: <2.0mΩ
  • Insertion loss: <.05 sqrt(f(GHz)) dB
  • VSWR: <1.30

Mechanical Characteristics

  • Center contact retention force: >20 N
  • Coupling test torque: 1.70 Nm
  • Recommended torque: 0.8 Nm to 1.10 Nm
  • Durability: >500 cycles

Environmental Characteristics

  •  Temperature Range:-65 ℃~+165 ℃
