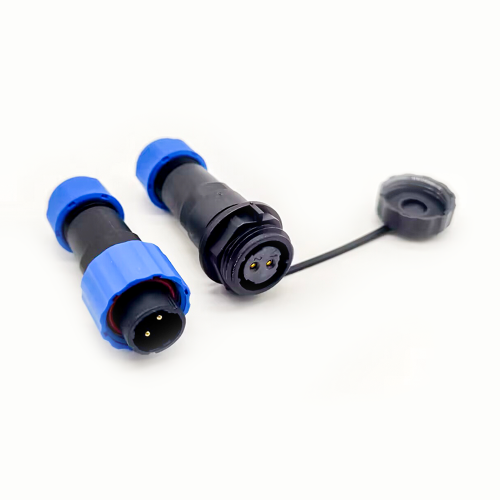

2 Pin Waterproof Connector SP17 IP68 Cable Plug Socket In-line Type

Features:

• SP17 Series Connector, Straight, In-Line Type, In-Line Socket and Plug, Solder Contact,2 Pin,
• With IP68 waterproof rating
• Shell diameter (the panel hole cutout diameter): 17mm
• Threaded coupling, Easy quick connect and disconnect coupling
• Cable outer diameter range of 6-10mm, higher voltage, it is a very strong and very tough connector designed for much harsher environments.

Electrical Characteristics :

• Insulation resistance: 2000MΩ
• Contact Resistance: 2.5MΩ/5MΩ
• Rated Voltage: 500V/ 400V
• Rated Current: 10A/5A

Mechanical Characteristics:

• Mating Type: Thread coupling
• Termination : Solder / Screw
• Durability(mating): 500 cycles

Environmental Characteristics:

• Temperature Range:  -40°C ~ +85°C
• IP Rating: IP68

Material:

• Shell Material: PA66
• Insert Material: PPS
• Contact: Copper, Gold Plated
• Contact Diameter: 1.5MM,1MM
