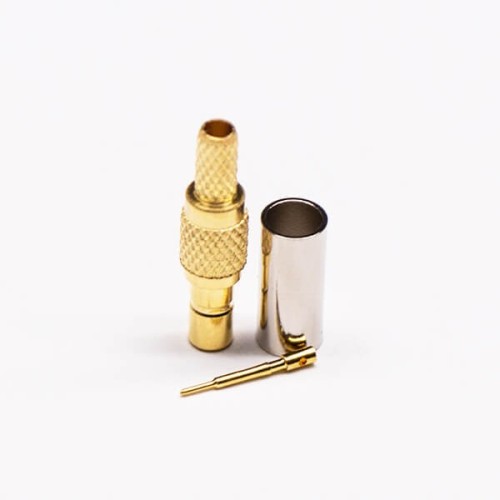

20pcs 50ohm Female SSMB Connector Crimp for Cable 180 Degree

Features:

SSMB Connector,Cable Connector,Female, Straight/180°,Crimp Type;
Lightweight and space saving alternative to SMB;
Snap-on interface for quick and easy installation;
50 Ohm options available;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

- Write a review

from

$47.34

Ex Tax: $47.34

Stock: In Stock
Model: JE00003250
Weight: 0.60g
SKU: JE00003250

Products Sold: 0

Product Views: 6

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Specifications

attribute-list
Body Material	Zinc Alloy
Terminal type	Solder Type
Installation characteristics	None
Gender	Female
Function	Other
Direction	Straight
Polarity	Standard
Coating	Gold Plating
Impedance	50 Ω
Installation method	Cable
Outer conductor connection	Crimp

Description

Main Application of SSMA Connectors:

Military
Instrumentation
PC/LAN
Wireless

Electrical Characteristics

Impedance：50 ohm
Frequency Range: DC- 14 GHz
Straight DC- 3 GHz: 1.05
RF Leakage: -80 dB to 3 GHz (-70 dB to 6GHz)
Power Handling:125 W at 40⁰C

Mechanical Characteristics

Engagement Force: 25 N (5.6 lb) typical
Disengagement Force: 20 N (4.5 lb) typical
Connector Durability: 500 mating cycles min

Environmental Characteristics

Temperature Range: -65⁰C to +165⁰C

Material:

Part	Material	Finish
Body	Brass	Au:1u"
insulator	TEFLON	White
Center Contact Pin	Phosphor	Au:3u"
