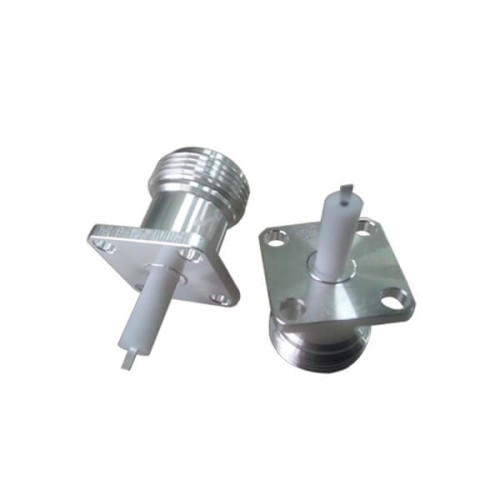

20pcs Coax N Connector Straight Female 4 Hole Flange for Panel Mount
- Panel Mount, jack/female, Straight/180°,50Ω, 4Hole Flange;
- Great performance with DC to 11GHz Frequency and 50 ohm impedance;
- Threaded coupling mechanism ensure durability and stability for vibration application;
- Medium size used in military, industry or consumption electronic area, etc;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of N Connectors:
- Aerospace and Defense: Radar Equipment
- Technology: Ablation equipment
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
- Data/Communications: Broadcast Electronics, Wifi
- Industrial: Machine to Machine Communications
from
$76.50
Ex Tax: $76.50
- Stock: In Stock
- Model: JE00002368
- Weight: 10.00g
- SKU: JE00002368
Products Sold: 0
Product Views: 5
Ask a Question About This Product
- Specifications
attribute-list | |
Body Material | Cooper |
Terminal type | Solder Type |
Installation characteristics | 4 Hole Flange |
Gender | Female |
Function | Other |
Direction | Straight |
Polarity | Standard |
Coating | Nickel Plating |
Impedance | 50 Ω |
Installation method | Panel Mount |
Outer conductor connection | Without |
- Description
Electrical Characteristics
- Impedance:50 ohm
- Frequency Range: 0~13 Ghz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 2500 V rms
- Working Voltage: 1000 V rms
- Center Contact Resistance ≦ 1.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 0.2 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 5/8-24 thread
- Contact Retention: 6 lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -65°C ~ +125°C ( PE Cable-40°C ~ +85°C )
- Vibration: MIL-STD-202 Method204
- Corrosion resistance: MIL-STD-202 Method 101
Material:
Part | Material | Finish |
Body | Brass | Silver Plated |
Center Contact | BeCu | Silver Plated |
Insulator | PTFE | -- |
