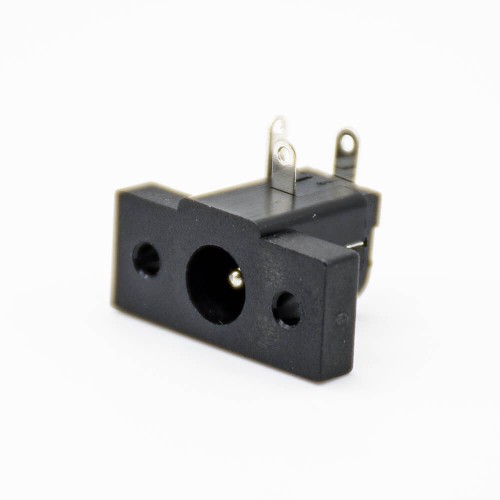

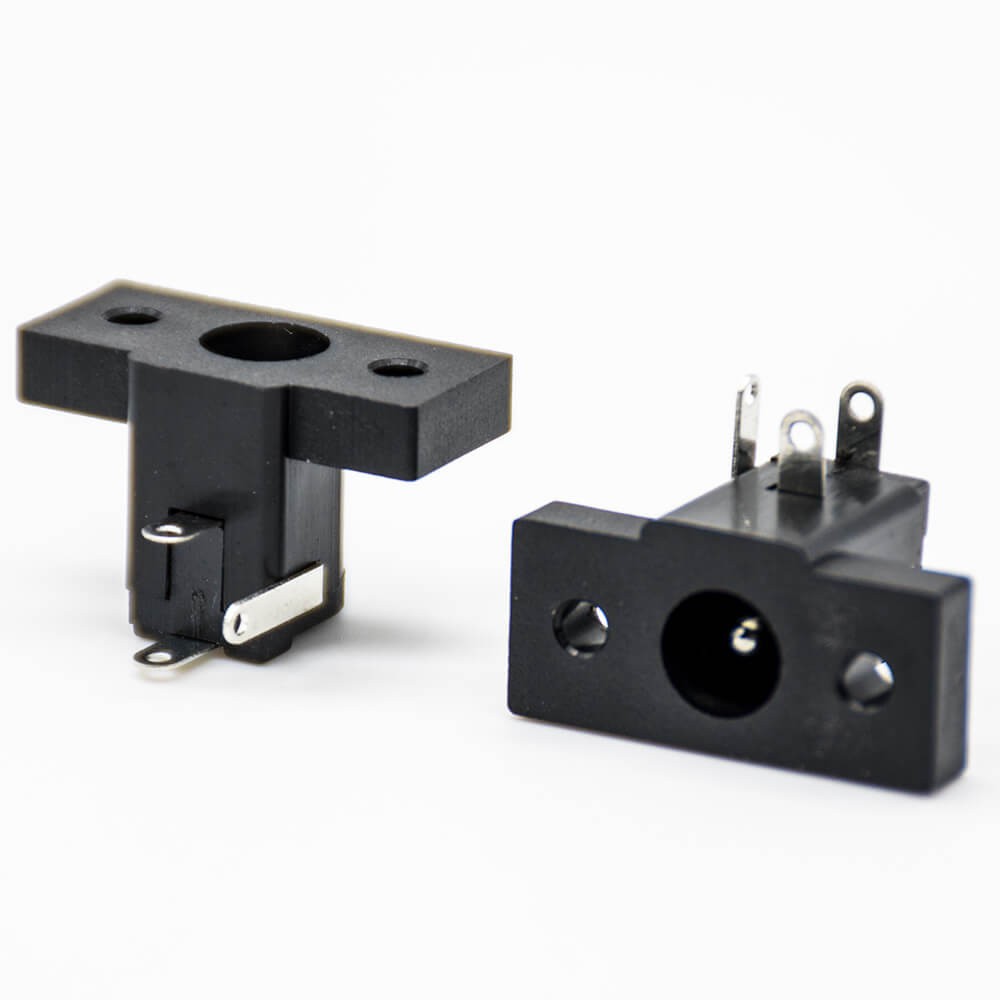

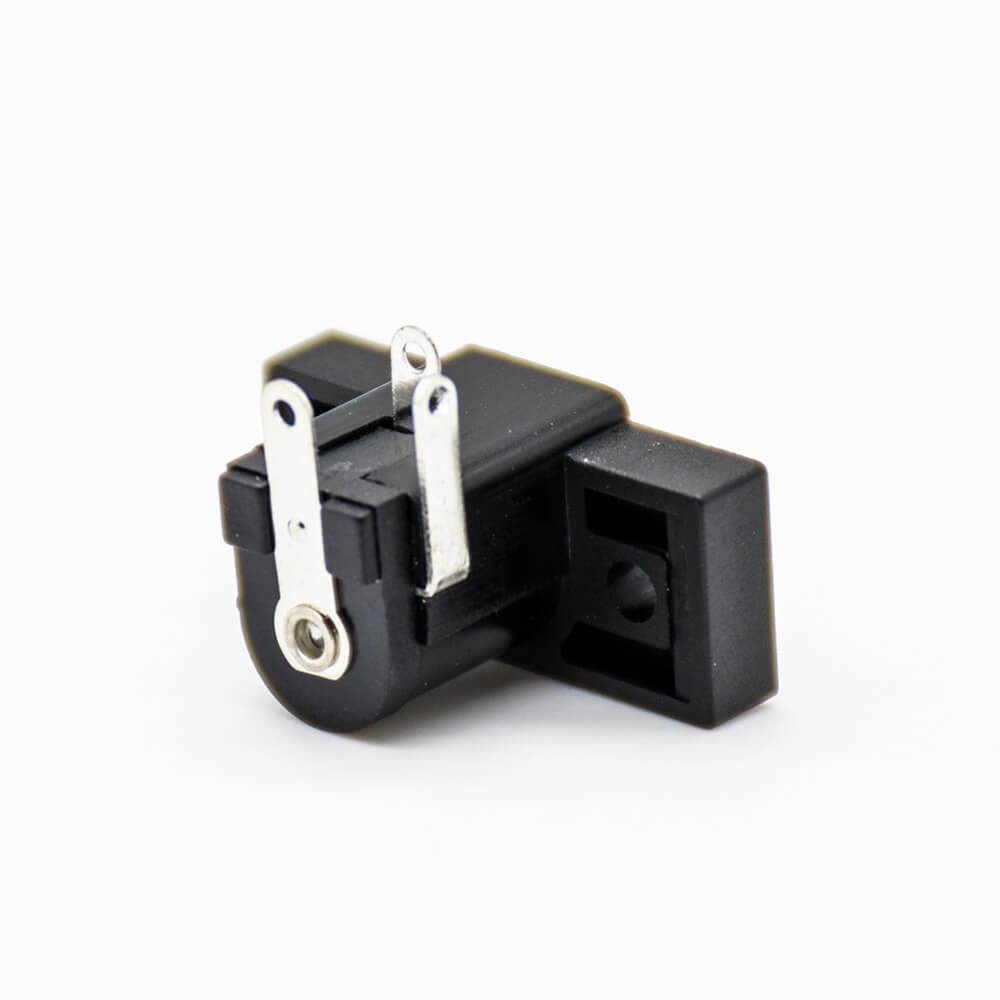

20pcs DC Power Socket Connector Male Jack Panel Mount 2 Holes Flange Through Hole Unshielded
Features:
- DC Power Connector,Male Jack,Panel Mount,2 Holes Flange,Through Hole,Right Angle,Unshiled,Plastic,Black
- The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
- A long shelf life of 10000 insertions and withdrawals
- Connector bodies are moulded in ABS plastic
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Audio / Video product
- Digital devices
- Remote control
- Communication products
- Household electrical appliance
- Security Products
- Toy
- Computer products
- Fitness equipment
- Technology Equipment
from
$2.70
Ex Tax: $2.70
- Stock: In Stock
- Model: JE00006650
- Weight: 1.91g
- SKU: JE00006650
Products Sold: 0
Product Views: 7
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | PCB Soldering |
Connector Type | Socket |
Gender | Female |
Shield | Unshielded |
Direction | Right Angle |
Installation method | Through Hole |
- Description
Electrical Characteristics:
- Voltage Rating: 48V AC/DC
- Current Rating: 5A (current carry only)
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Withstanding: 500 VAC max.
Mechanical Characteristics:
- Installation angle : Straight/ Right Angle
- Connector Mounting Type : Panel Mount/PCB Mount
Environmental Characteristics:
- Ambient temperature: -40°C to 65°C (-40°F to 149°F)
Material:
art | Material | Finish |
Pin/ Terminal | Brass | Nickel |
Shunt Terminal | Brass | Silver (Over Nickel) |
Tip Spring | Copper Alloy | Silver (Over Nickel) |
Ground Spring | Stainless Steel | ------ |
Shield | Brass | Nickel |
Body | Brass | Nickel |
Contacts | Brass | Nickel |
Insulator | Thermoplastic | ------ |
Hex Nut | Die Cast | Nickel |
