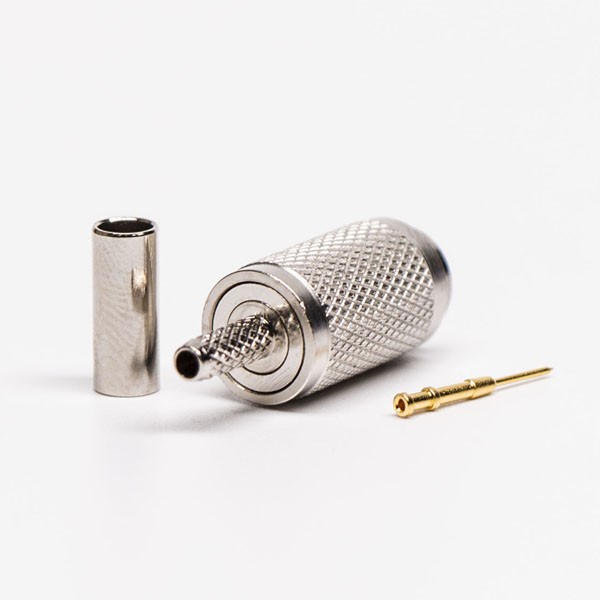

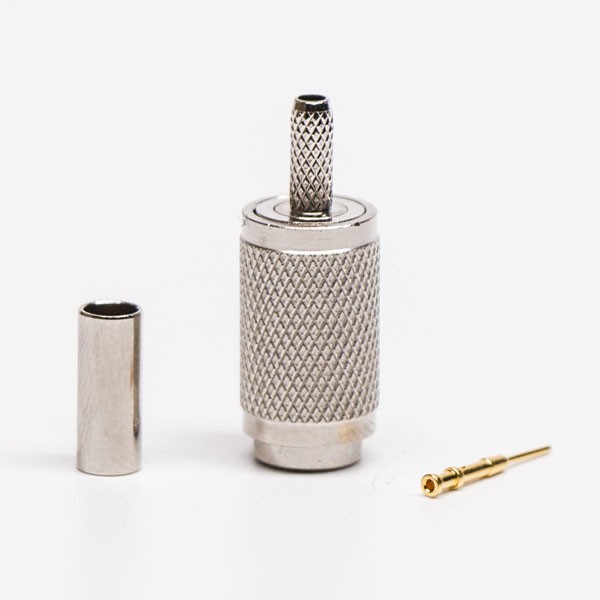

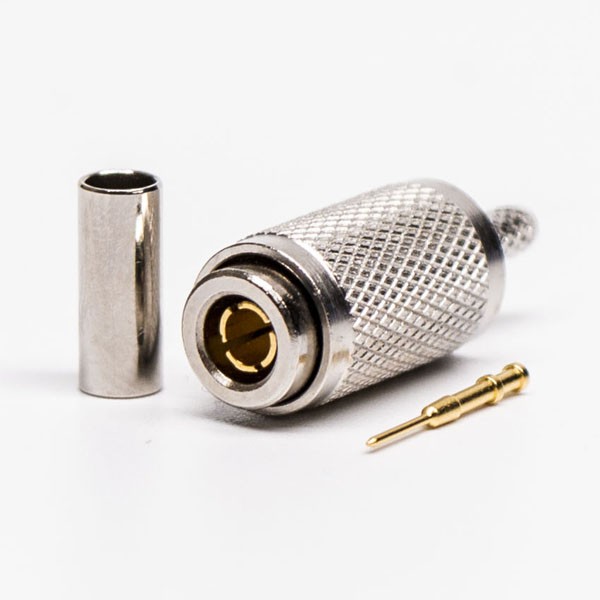

20pcs DIN 1.0/2.3 Connector Straight Male Crimp Type for Cable RG316-RG174
- Cable Connector, male/plug, DIN1.0/2.3, Crimp Type,Straight/180° ;
- Compact design is ideal for limit space application and save space in delivery;
- Push/pull mating is excellent for quick installation without vibrate loose;
- Great performance with frequency up to 10GHz support high data rates.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of DIN1.0/2.3 Connectors:
Aerospace and Defense: Communication systems
Telecommunications: CATV, Central office, High-density Radios, Base station, Switching equipment
Networking: Video Equipment, Radio boards
from
$141.84
Ex Tax: $141.84
- Stock: In Stock
- Model: JE00002735
- Weight: 5.70g
- SKU: JE00002735
Products Sold: 0
Product Views: 11
Ask a Question About This Product
- Specifications
attribute-list | |
Body Material | Cooper |
Terminal type | Solder Type |
Installation characteristics | None |
Gender | Male |
Function | Other |
Direction | Straight |
Polarity | Standard |
Coating | Nickel Plating |
Impedance | 75 Ω |
Installation method | Cable |
Outer conductor connection | Crimp |
- Description
Electrical Characteristics
- Impedance:50 ohm or 75 ohm
- Frequency Range: 0~6
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 750 V rms
- Working Voltage: 250 V rms
- Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance 3.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 10⁴ mΩ
Mechanical Characteristics
- Coupling: Push-pull
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -40°C ~ +155°C
Material:
Art | material | Finish |
Body | Brass | gold |
Contact Pin | brass | gold |
Insulator | PETE | natural |
