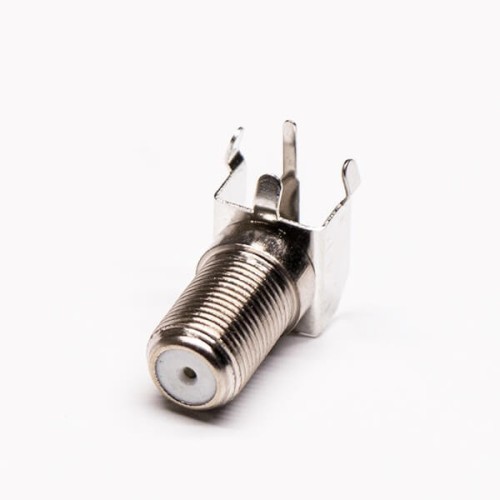

20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount

20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount
20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount

Product features:

  • F Connector,Jack/female,Angled/90°,Solder Type,Front Bulkhead,PCB Mount;
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Consumer Electronic: Statellite Boxes, set top boxes
  • Telecommunications: CATV, CATV Networks.
- Write a review
from
$21.96
Ex Tax: $21.96
  • Stock: In Stock
  • Model: JE00001018
  • SKU: JE00001018
Products Sold: 0
Product Views: 7
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Zinc Alloy
Terminal type Solder Type
Installation characteristics Bulkhead / Through Hole
Gender Female
Function Other
Direction Right Angle
Polarity Standard
Coating Nickel Plating
Impedance 75 Ω
Installation method PCB Mount
Outer conductor connection Without
  • Description


20pcs F Connector 90 Degree Bulkhead Female Solder Type for PCB Mount

Electrical Characteristics

  • Impedance：75 ohm
  • Frequency Range: 0~3Ghz
  • VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
  • Withstanding Voltage: 500 V rms
  • Working Voltage: 170 V rms
  • Center Contact Resistance ≦ 10 mΩ
  • Outer Contact Resistance ≦ 5 mΩ
  • Insultation Resistance ≧ 1000 mΩ
  • RF Leakage -100dB min @1GHz

Mechanical Characteristics

  • Coupling: 3/8-32 thread
  • Cable Retention: 20 lbs min.
  • Durability(mating) ≧ 500 cycles

Environmental Characteristics

  • Temprature Range: -40°C ~ +60°C

Material:

PartMaterialFinish
BodyZINC NI:80-120u"NI:80-120u"
Center Contact Pinphosphor  SN
InsulatorPPWhite
