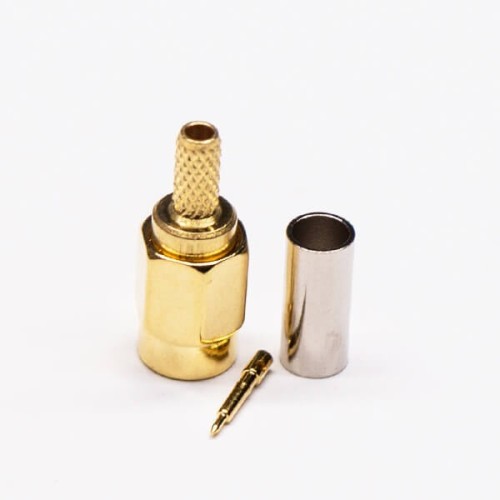

20pcs SSMA Straight Plug Coaxial Connector Crimp Type for Cable

Main Application of SSMA Connectors:

• Mil-Aero
• Telecommunication
• RFID
• Antennas
• Test and measurement
• Radar systems

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: DC-  14 GHz
• Straight DC- 6 GHz:1.3
• RF Leakage: - 128 dB DC - 1 GHz
• Power Handling: .60kW - 10kW max
• PIM: -160 dBc

Mechanical Characteristics

• Engagement Force：15 N (3.37 lb) typical
• Disengagement Force：10 N (2.25 lb) typical
• Retention Force of Interface：550 N (123.65 lb) min
•  Connector Durability：500 mating cycles min

Environmental Characteristics

•  Temperature Range：-65°C to +165°C

Material:
