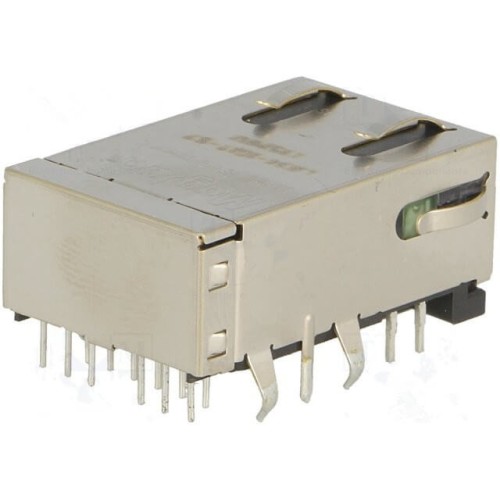

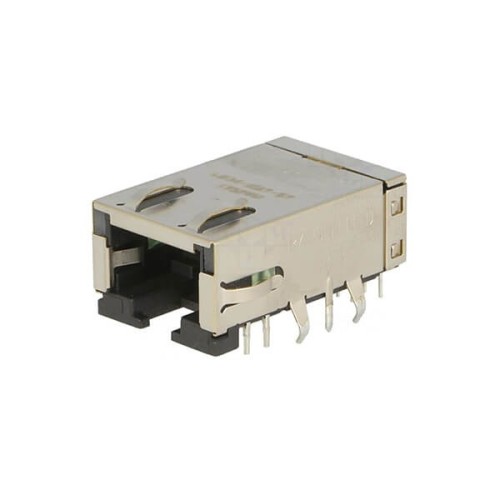

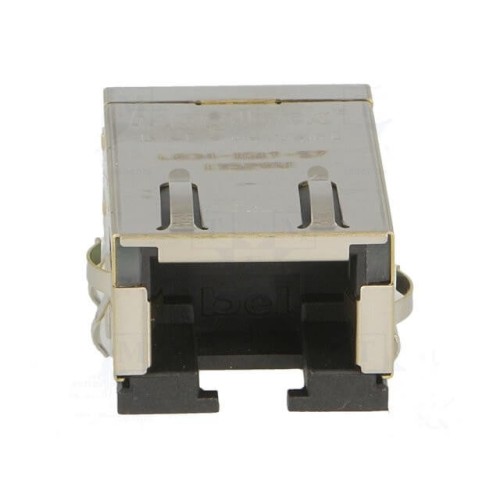

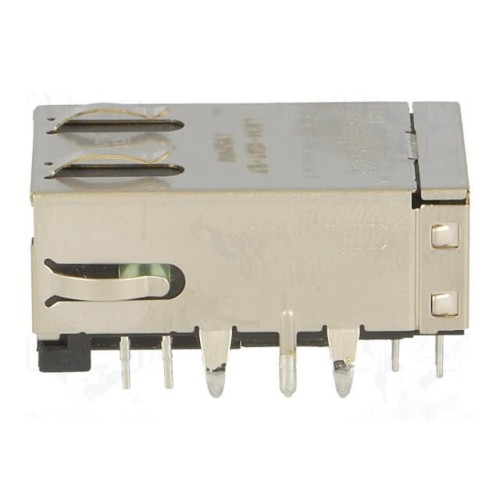

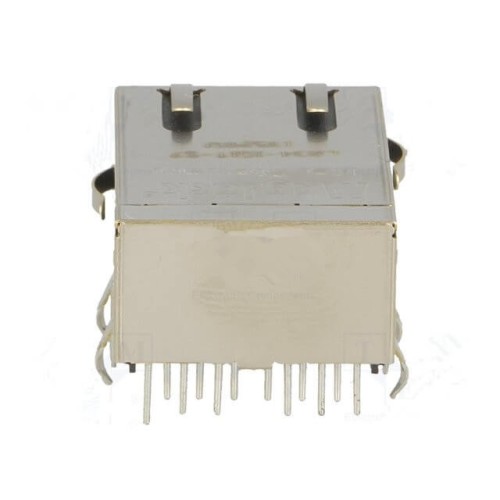

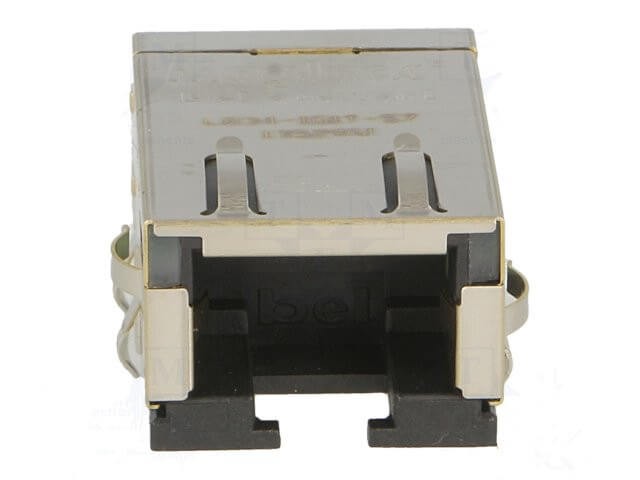

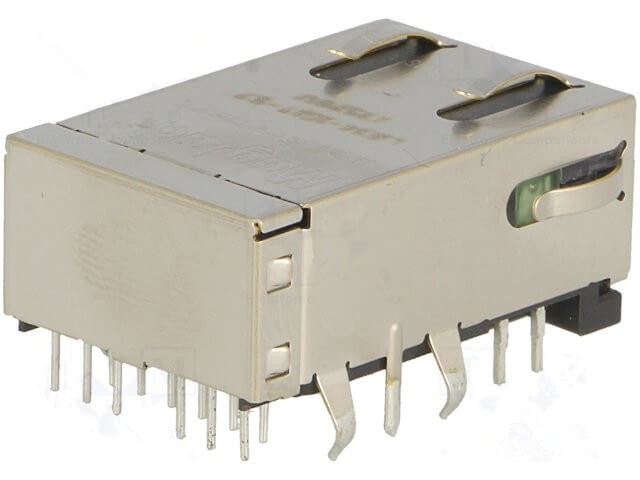

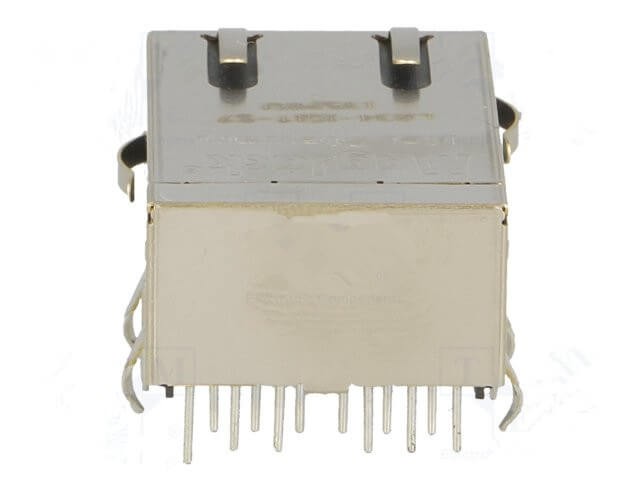

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack

Features:

  • RJ45,Female,PCB Mount,8P8C,1*1,1 Port, Angled,With Shield,With Shrapnel,With LED,Without Magnetics,Copper,Nickel Plated
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$4.00
Ex Tax: $4.00
10 or more $3.68
30 or more $3.40
50 or more $3.20
100 or more $3.00
  • Stock: In Stock
  • Model: JE00006347
  • Weight: 5.00g
  • SKU: JE00006347
Products Sold: 0
Product Views: 10
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Connector Type Socket
Shield shielded
Number of contacts 8p8c
Continuous plating Nickel
Direction Right Angle
LED Yes
Number of Rows 1×1
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack

2pcs Ethernet RJ45 Connector 1X1 10/100 Mbit LED Indicators 8p8c Jack
