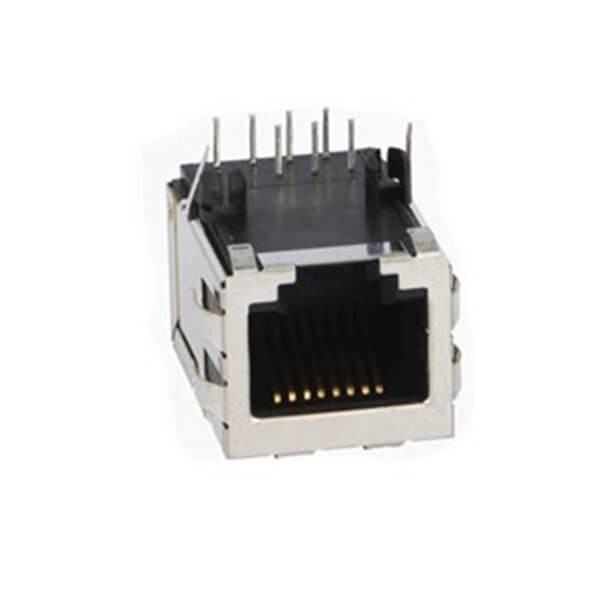

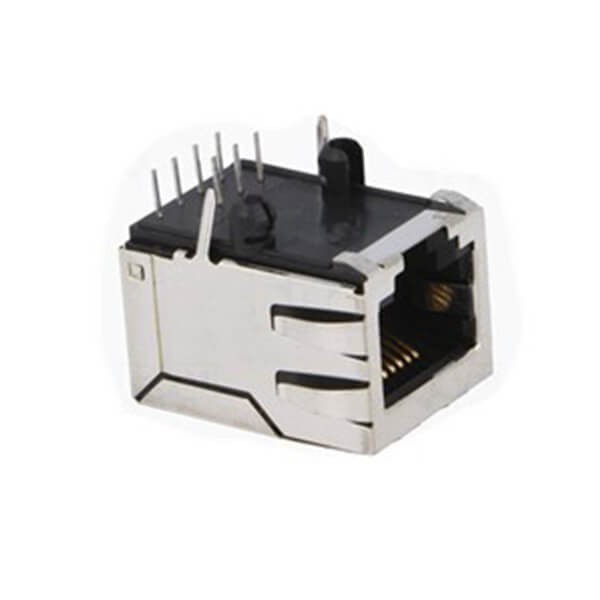

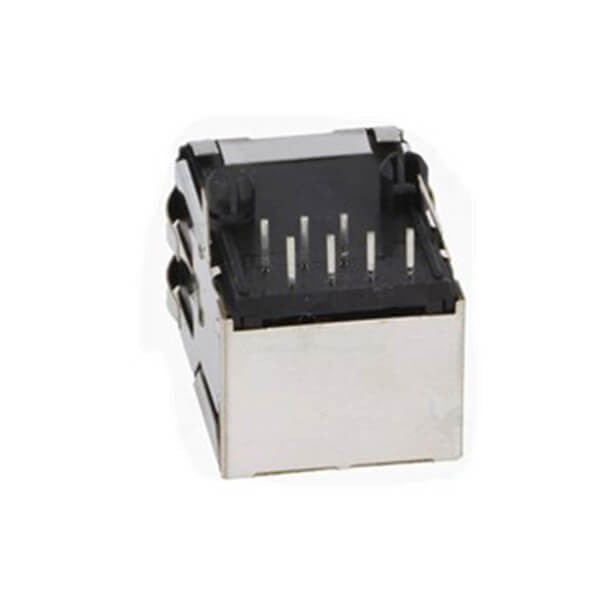

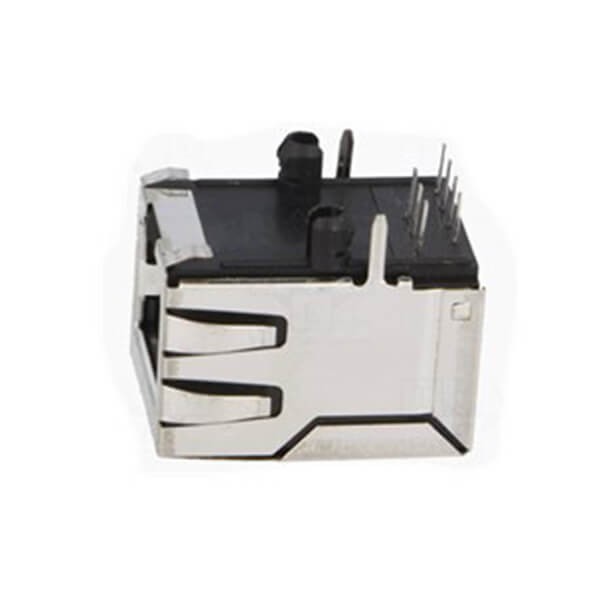

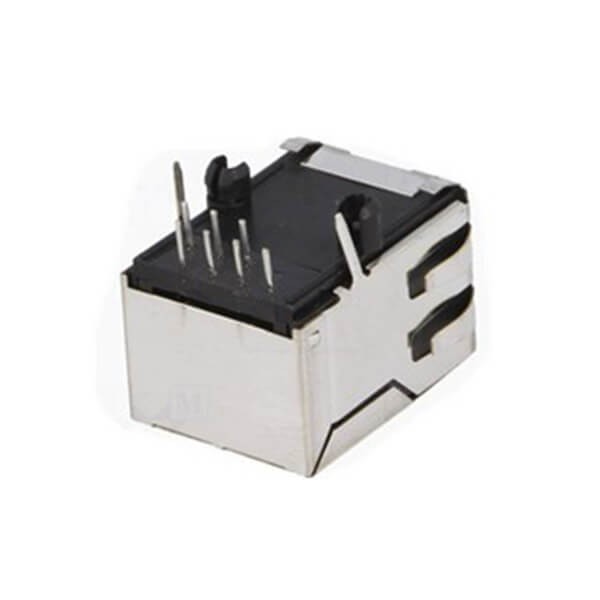

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

Features:

  •  RJ45,Female,PCB Mount,8P8C,1*1,1 Port, Angled,With Shield,With Shrapnel,Without LED,Without Magnetics,Copper,Nickel Plated
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$3.50
Ex Tax: $3.50
10 or more $3.22
30 or more $2.98
50 or more $2.80
100 or more $2.63
  • Stock: In Stock
  • Model: JE00006368
  • Weight: 4.80g
  • SKU: JE00006368
Products Sold: 0
Product Views: 7
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Connector Type Socket
Shield shielded
Number of contacts 8p8c
Continuous plating Tin
Direction Right Angle
LED No
Number of Rows 1×1
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED

2pcs RJ45 8 Pin Connector Modular Jack With Shield 90 Degree Without LED
