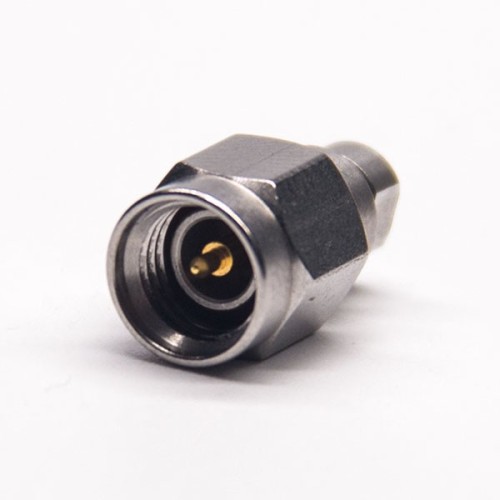

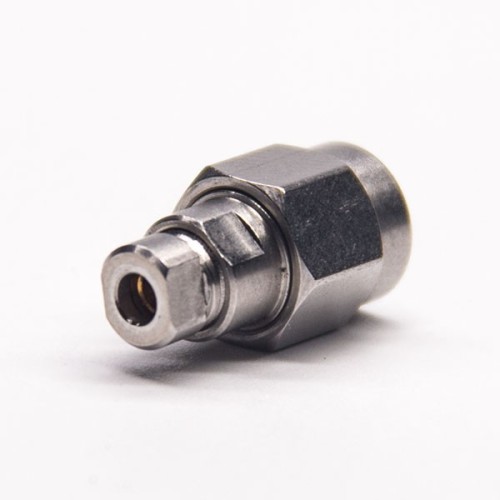

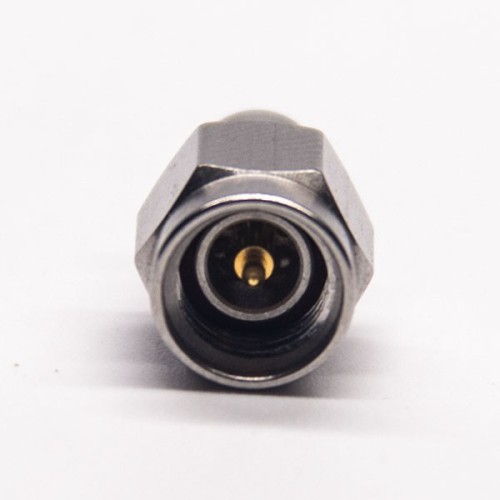

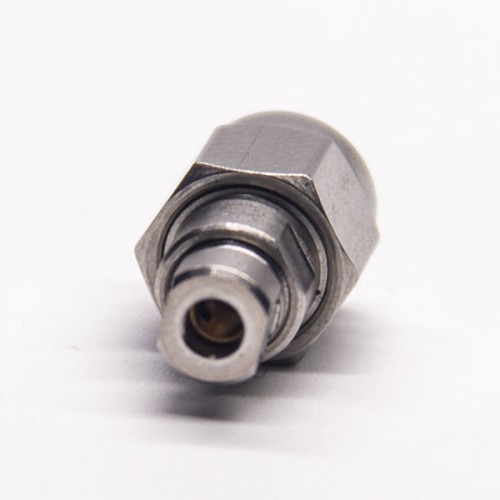

3.5MM Microwave Connector 50GHz Male Connector for Cable

3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable
3.5MM Microwave Connector 50GHz Male Connector for Cable

Features:

  • High Frequency Connector,Microwave Connector,3.5mm,Male,50 Ohm,Standard,Straight,for cable,Crimp type,Waterproof
  • Excellent performance DC to 34 GHz
  • Low VSWR
  • Low Insertion Loss
  • Low RF LeakageSuperior reliability
- Write a review
from
$63.33
Ex Tax: $63.33
5 or more $60.16
10 or more $57.00
  • Stock: In Stock
  • Model: JE00013088
  • Weight: 3.50g
  • SKU: JE00013088
Products Sold: 0
Product Views: 5
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Terminal type Solder Type
Gender Male
Function Waterproof
Direction Straight
Polarity Standard
Impedance 50 Ω
Installation method Cable
Outer conductor connection Crimp
  • Description

Applications:

  • High Speed Digital
  • Instrumentation
  • Military
  • Aerospace
  • Satellite Communication Equipment (SATCOM)
  • Cable Assemblies
  • Test and measurement

3.5MM Microwave Connector 50GHz Male Connector for Cable

Electrical Characteristics

  • Impedance: 50 Ohm
  • Frequency range: DC~34GHz
  • Voltage rating: 150 V(rms)
  • Center contact resistance: <3.0mΩ
  • Outer contact resistance: <2.0mΩ
  • VSWR: <1.20

Mechanical Characteristics

  • Center contact retention force: >20 N
  • Coupling test torque: 1.70 Nm
  • Durability: >500 cycles

Environmental Characteristics

  • Temperature Range：-65 ℃~+150 ℃
