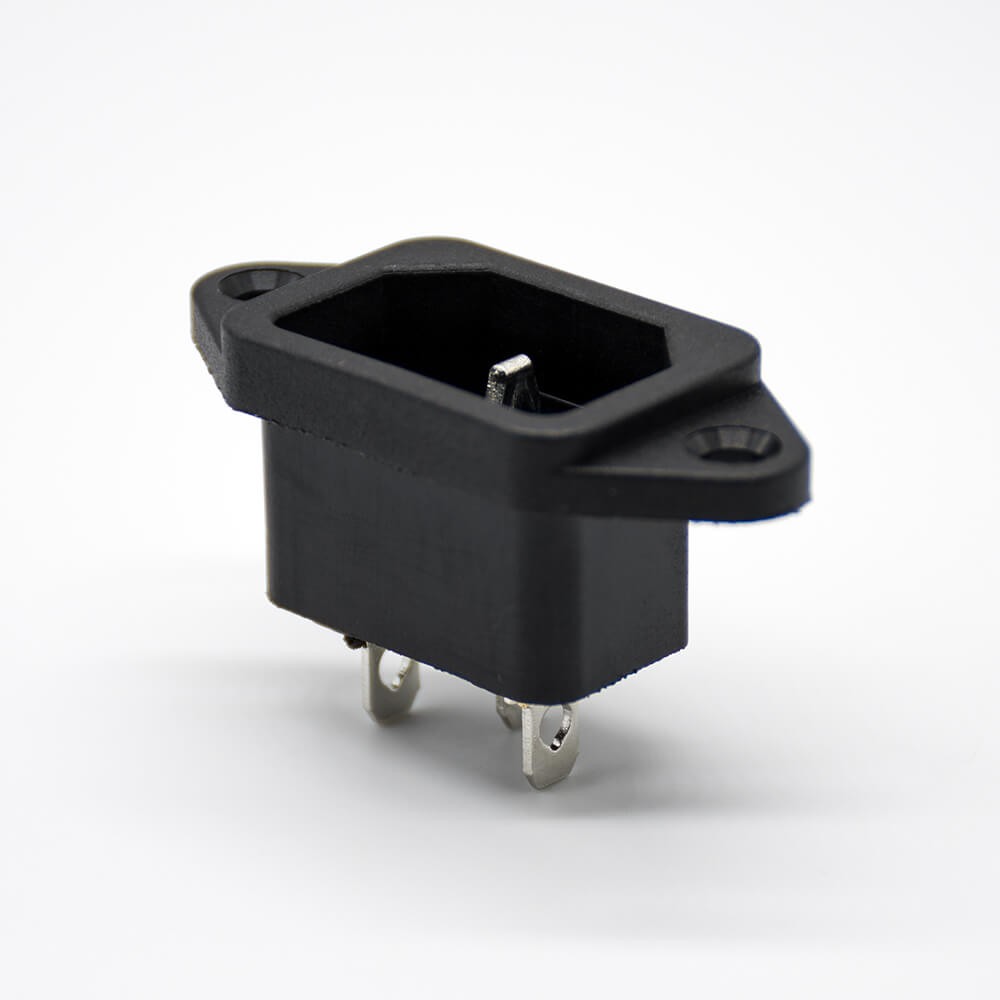

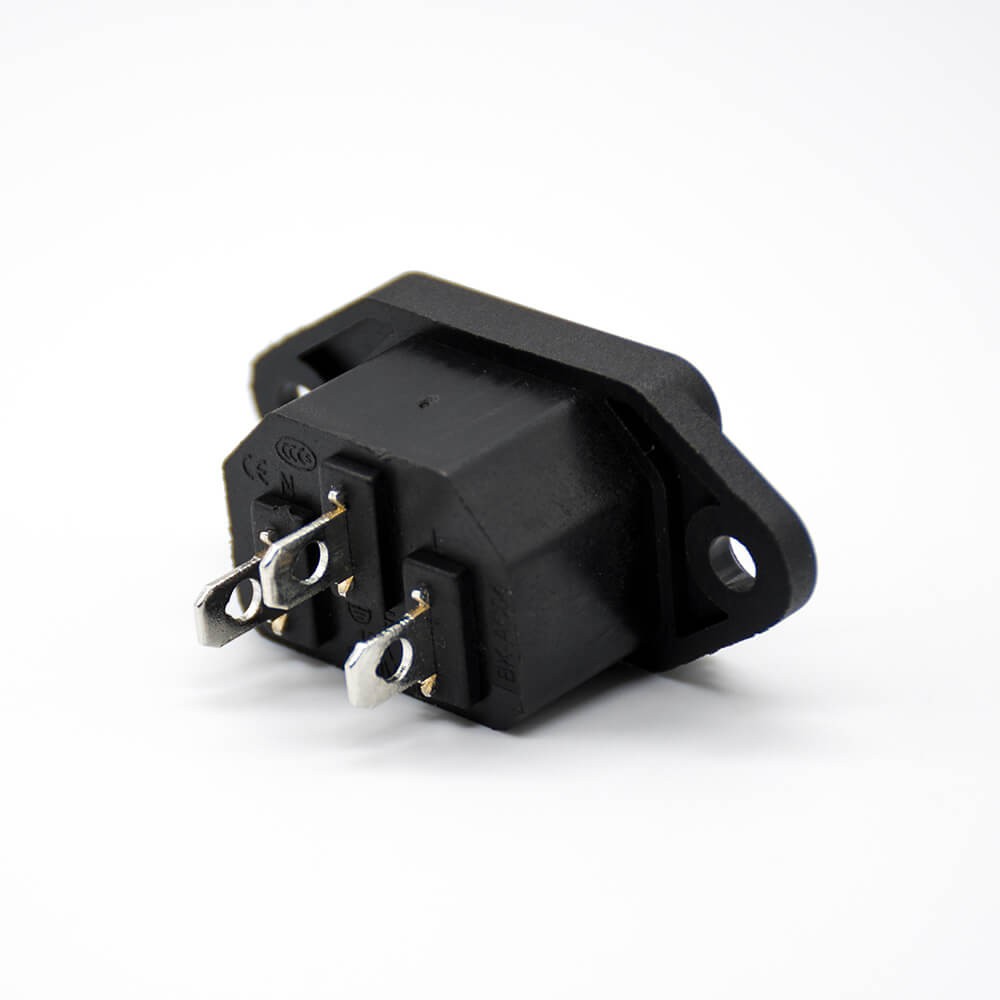

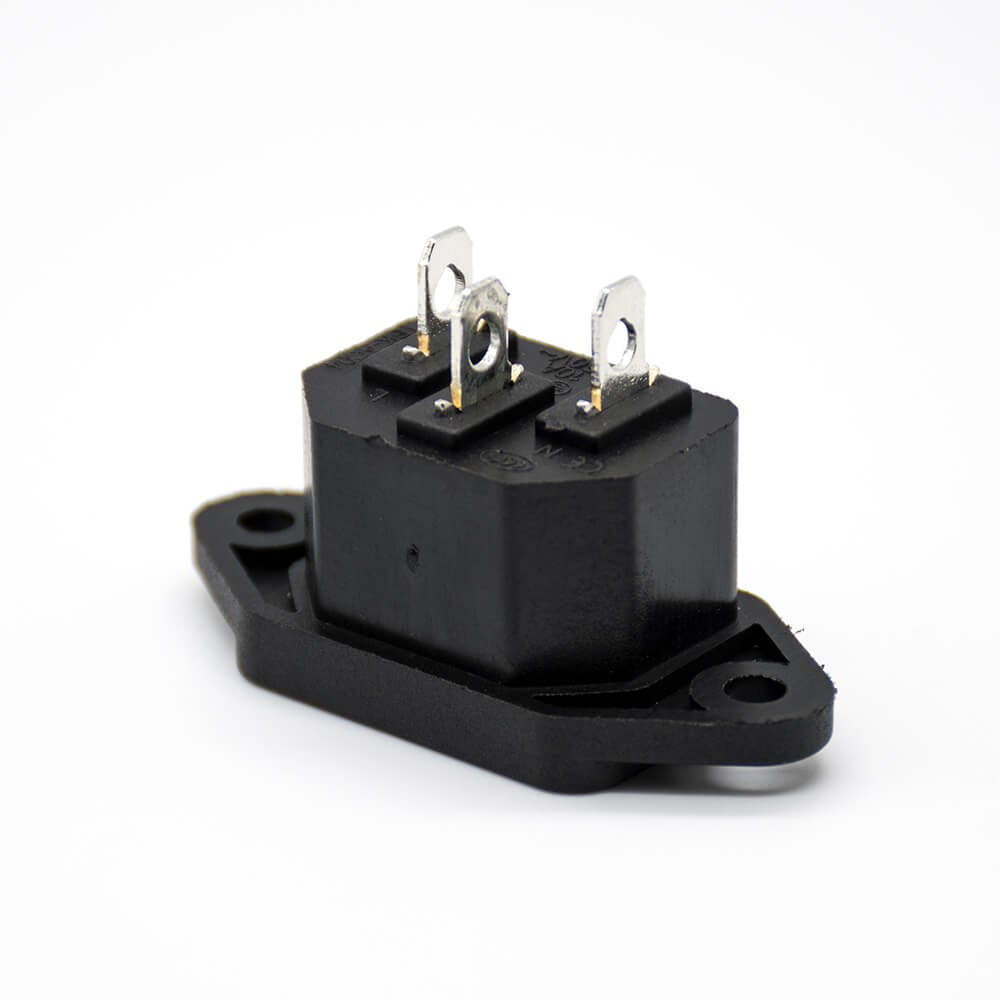

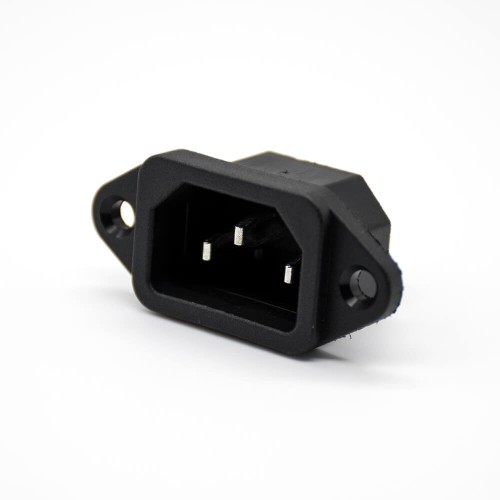

3 Pin AC Power Connector Through Hole AC-04 Jack Straight Male With Fuse
Features:
- AC Power Jack,AC-04,Jack,Male,Through Hole,Straight,3 Pin
- The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
- Connector bodies are moulded in ABS plastic
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Audio / Video product
- Digital devices
- Remote control
- Communication products
- Household electrical appliance
- Security Products
- Toy
- Computer products
- Fitness equipment
- Technology Equipment
from
$0.18
Ex Tax: $0.18
- Stock: In Stock
- Model: JE00006880
- Weight: 8.00g
- SKU: JE00006880
Products Sold: 0
Product Views: 6
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | Through Hole |
Connector Type | Socket |
Gender | Male |
Shield | Unshielded |
Number of Positions | 3 pin |
Direction | Straight |
Installation method | Through Hole |
- Description
Electrical Characteristics:
- Rated load: AC 250V 10A
- Withstand voltage: 2000V, AC/min
- Insulation resistance: ≥100MΩ
- Contact resistance: ≤0.03Ω
Mechanical Characteristics:
- Electrical life: 5000 times
Environmental Characteristics:
- Ambient temperature: -40°C to 70°C
Material:
Component | Material | Finish |
Pin/ Terminal | Brass | Nickel |
Shunt Terminal | Brass | Silver (Over Nickel) |
Shield | Brass | Nickel |
Body | Brass | Nickel |
Contacts | Brass | Nickel |
Insulator | Thermoplastic | ------ |
Hex Nut | Die Cast | Nickel |
