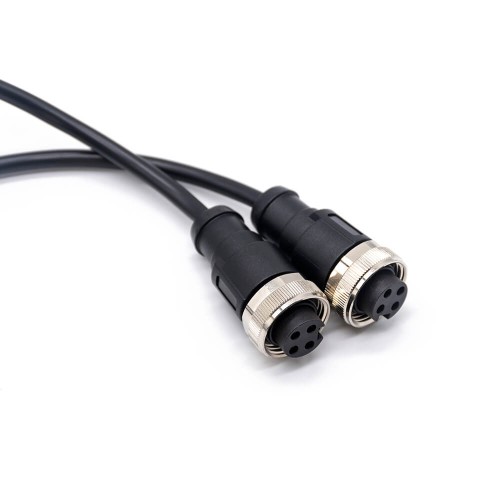

M7/8 Straight Jack to 7/8 Straight Jack Cable Assemblies 4 Pin 1m 18AWG Cable UnShielded

 Main Applications

• Machine building
• Factory automation and fieldbus module
• Material handling
• Automotive

Electrical Characteristics

• Rated voltage: 300V for 3/4/5 pin
• Rated current: 12A for 3 pin, 9A for 4/5 pin
• Insulation resistance: ≥100 MΩ
• Contact resistance: ＜3 MΩ

Mechanical Characteristics

• Coupling method: threaded connection
• Direction: Straight/Angled
• Mechanical operation: ＞500 mating cycles
• Wire gauge: max.2.5mm²(max.16AWG) for 3/4 pin, max.1.5-2.5mm²(max.16-14AWG) for 5 pin

Mechanical Characteristics

• Temperature range： -25°C ~ + 85°C
• Protection degree： IP67/IP68

Material

• Pin contant: CuZn
• Socket contact: CuSn
