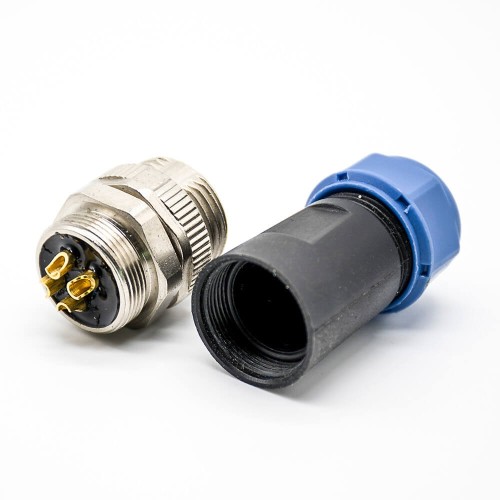

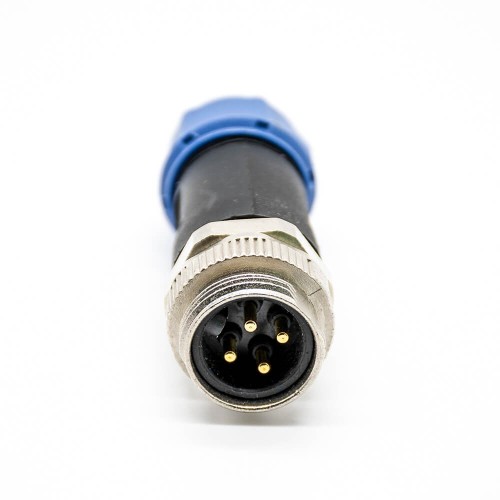

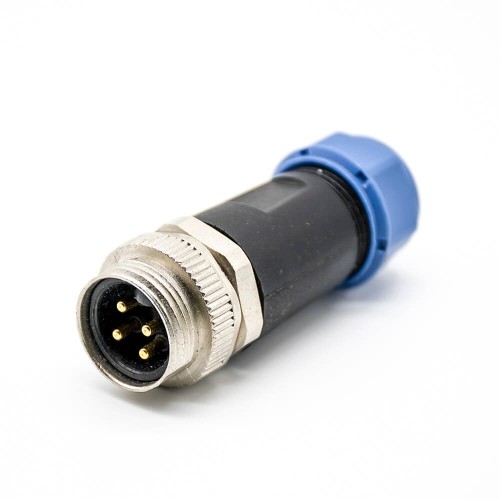

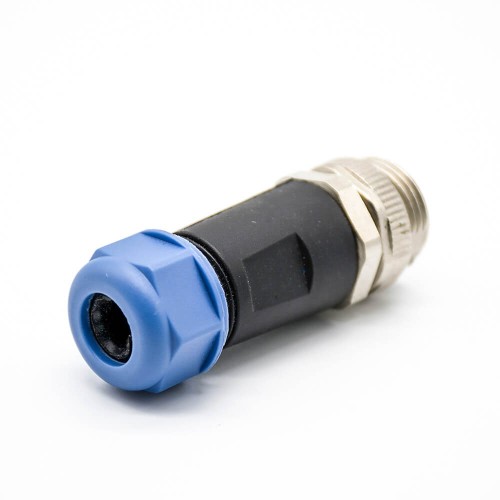

7/8" Connectors 4 pin Male Solder Type For Cable Straight Non-Shield

Features:

  • TAG:4pin,Male,Straight,for Cable,Solder Type,7/8 Connector,Non-Shield
  • high-class material ensuring a long lifetime and exceptional operational reliability;
  • a wide range of versions offers flexible connection solutions;
  • internationally standardized interface for global usage;
  • 7/8" Series feature very high mechanical and electrical durability;
- Write a review
from
$22.93
Ex Tax: $22.93
10 or more $21.10
30 or more $19.49
  • Stock: In Stock
  • Model: JE00008290
  • Weight: 56.00g
  • SKU: JE00008290
Products Sold: 0
Product Views: 10
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Gender Male
Shield Unshielded
Number of Positions 4 pin
Direction Straight
Installation method Cable
  • Description

Main Applications

  • Machine building
  • Factory automation and fieldbus module
  • Material handling
  • Automotive

Electrical Characteristics

  • Voltage withstand：230VAC/DC |600 VAC/DC
  • Rated Voltage: 600V
  • Rated Impulse Voltage: 2500V
  • Rated Current: 12 A
  • Volume Resistivity: ≤ 10 mΩ

Mechanical Characteristics

  • Tightening torque: 1.5 Nm
  • Mechanical Operation: > 100 Mating cycles
  • Pollution Degree: 3

Mechanical Characteristics

  • Ambient Temperature：-40℃to+90℃
  • Degree of Protection: IP67

Material

  • Material of Contact:
  • Contact Plating: Gold

7/8" Connectors 4 pin Male Solder Type For Cable Straight Non-Shield
