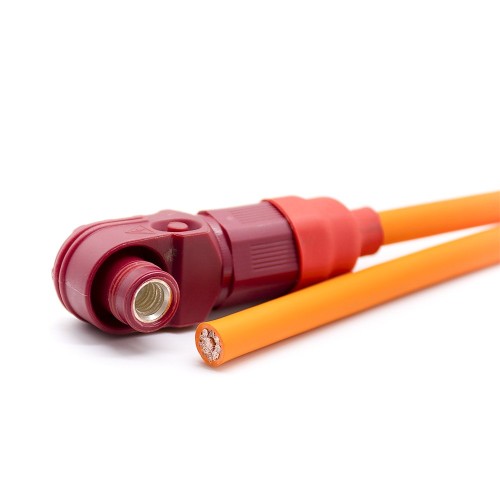

8mm Energy Storage Connector Cable 1 Pin 90° Plug To Plug Red To Black Plastic 200A IP67 25mm2
from
$46.15
Ex Tax: $46.15
- Stock: In Stock
- Model: JE00010133
- Weight: 20.00g
- SKU: JE00010133
Products Sold: 0
Product Views: 8
Ask a Question About This Product
- Description
Energy storage connector compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools.This connector available in smaller sizes, and features a quick lock and press-to-release design.Incorporating the latest flexcoil finger connecting technology, our energy storage connector is a compact, quick mating, and robust product line.
Battery Storage Connector Cable| Material | |
| Shell | PA66 |
| Contact | Copper Alloy, Silver Plating |
| Electrical Performance | |
| Rated Voltage | 1000V/DC |
| Rated Current | From 60A to 500A MAX |
| Withstand Voltage | 2500V AC |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Performance | |
| Terminal | 6-12mm |
| Cable Range | 10~95m㎡ |
| Connection Type | Terminal Machine |
| Mating Cycles | >500 |
| Shielding | 360° |
| Environmental Performance | |
| IP Degree | IP67 |
| Operating Temperature | -40℃~125℃ |
| Flammability Rating | UL94 V-0 |
| Application | |
| BMS / Energy Storage | EV / HEV |
| Rail Mass Transit | Process Control / Automation |
| Heavy Equipment |
