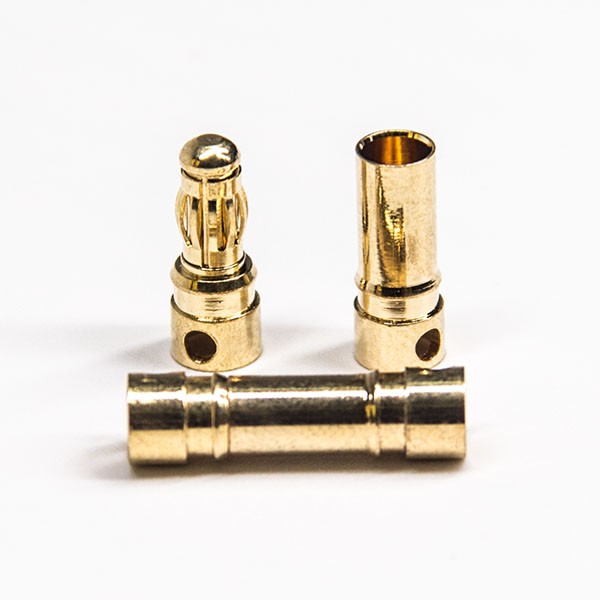

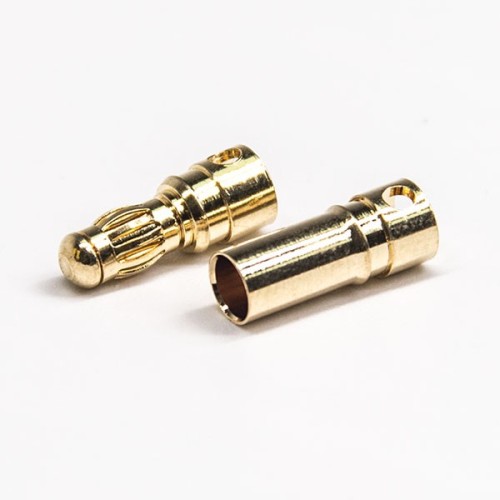

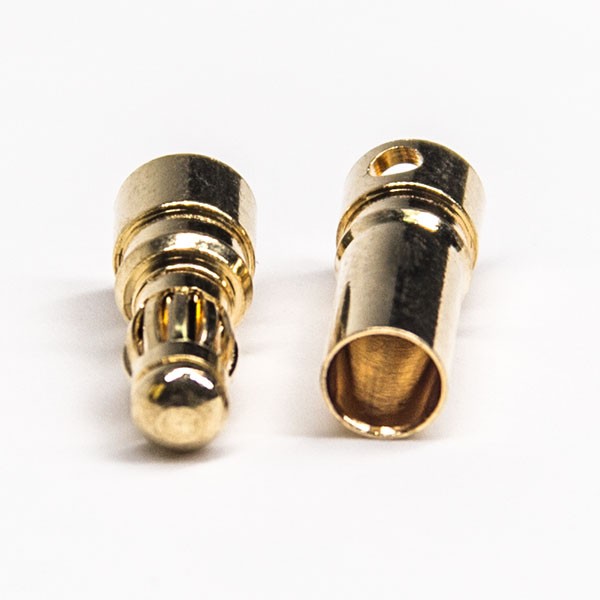

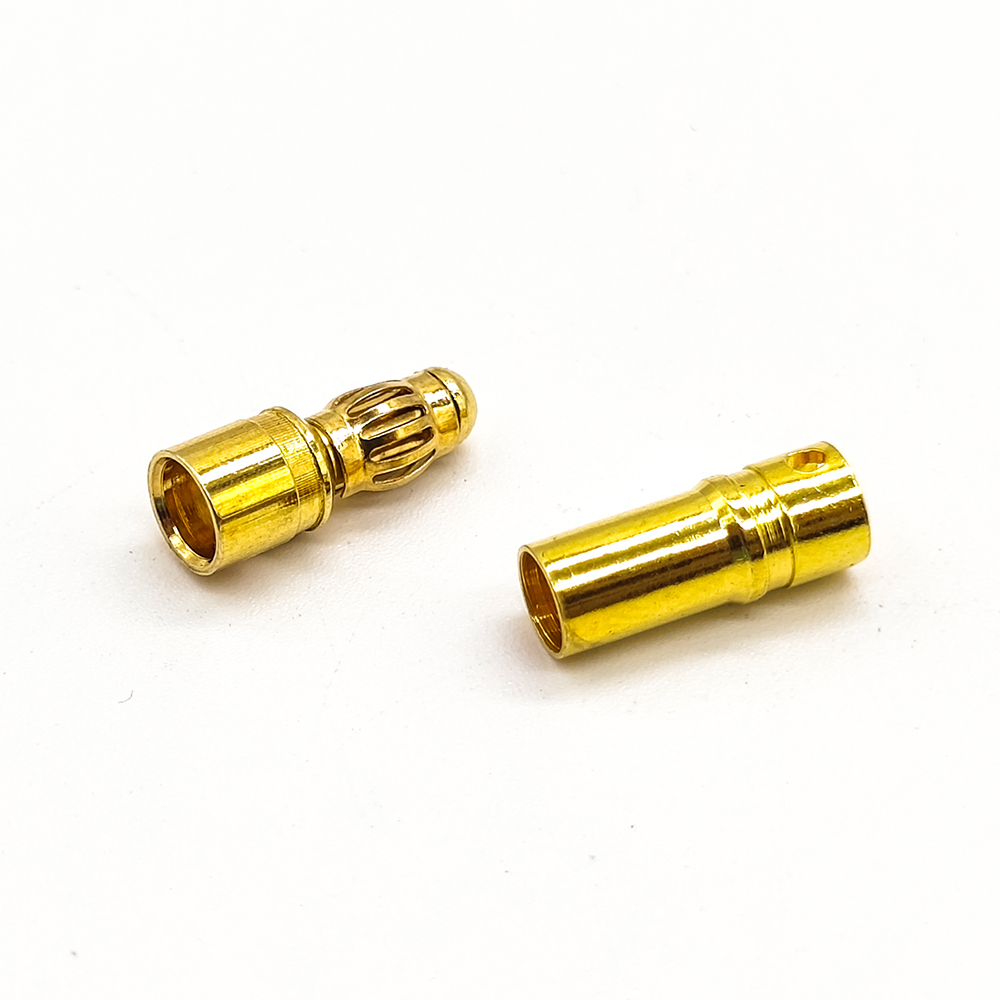

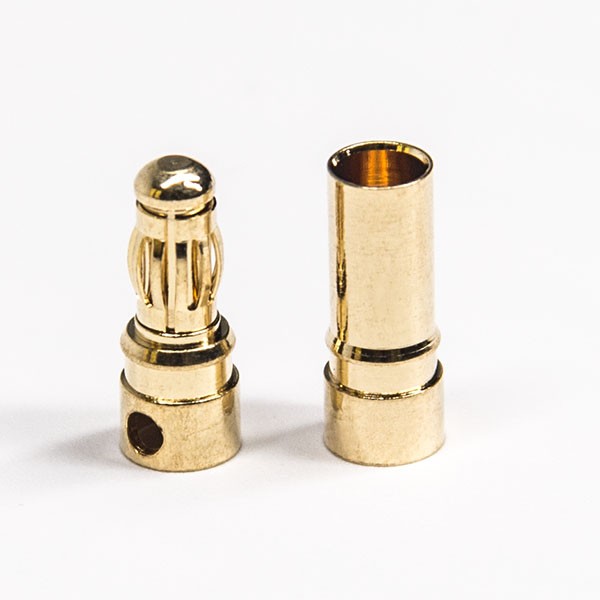

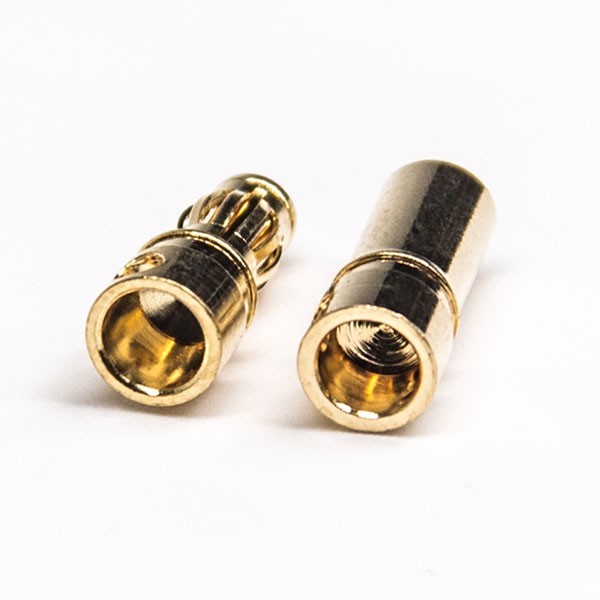

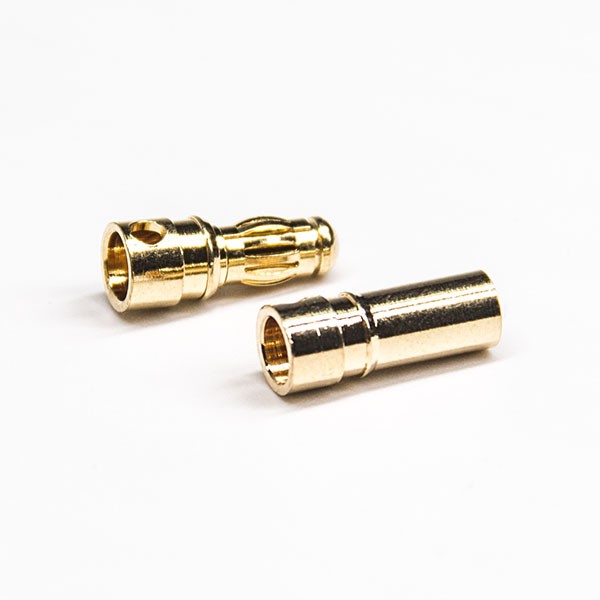

Banana 3.5MM BP3503-04-A Femal-Male 25A
from
$1.19
Ex Tax: $1.19
10 or more $1.09
30 or more $1.01
50 or more $0.95
100 or more $0.89
200 or more $0.83
- Stock: In Stock
- Model: JE00006627
- Weight: 1.60g
- SKU: JE00006627
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Electrical Characteristics:
- Impedance:75 Ohm
- Frequency Range: DC- 11 GHz
- Straight DC- 6 GHz:1.3
- Straight 6-14 GHz:1.25
- RF Leakage: - 128 dB DC - 1 GHz
- Power Handling: 60kW - 10kW max
- PIM: -160 dBc
Mechanical Characteristics：
- Engagement Force：15 N (3.37 lb) typical
- Disengagement Force：10 N (2.25 lb) typical
- Retention Force of Interface：550 N (123.65 lb) min
- Connector Durability：500 mating cycles min
- These characteristics are typical and may not apply to all connectors.
Environmental Characteristics：
- Temperature Range：-55°C to +155°C
