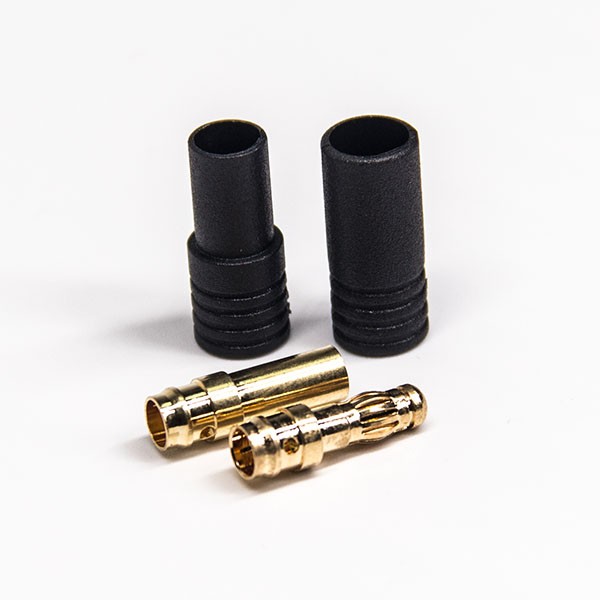

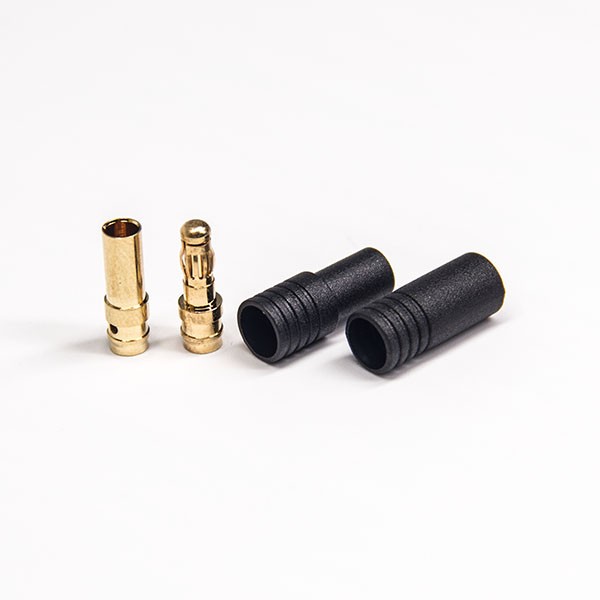

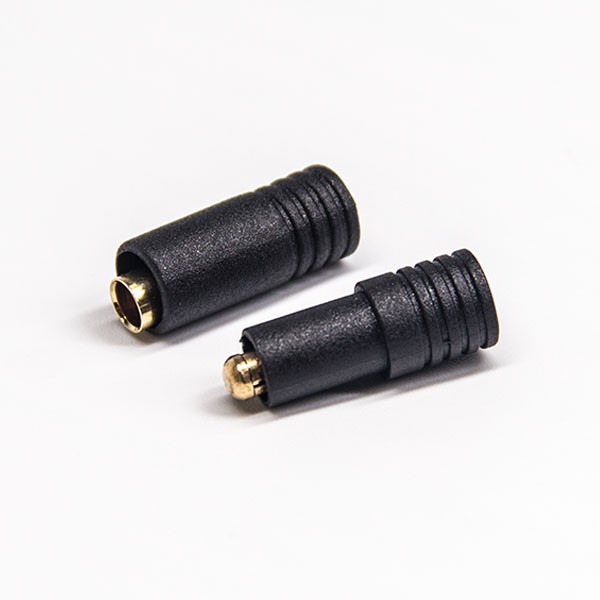

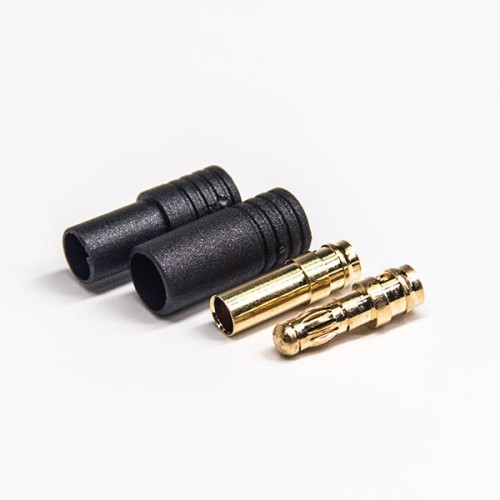

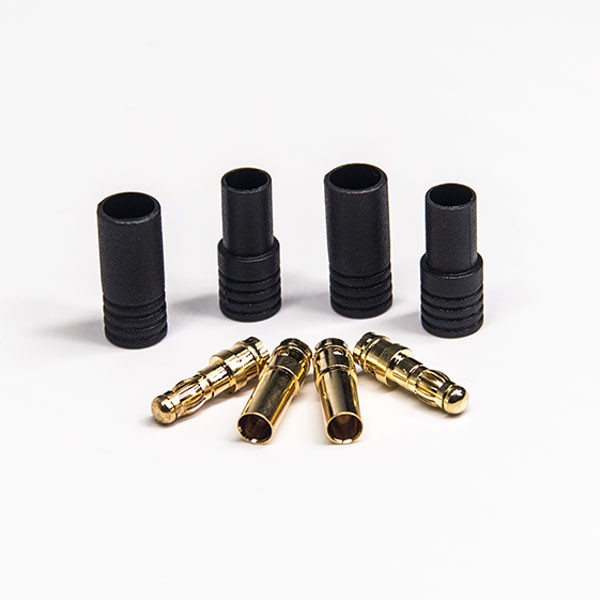

Banana Terminal PM3506-B 30-60A Straight Aerial connector

Electrical Characteristics:

• Impedance:75 Ohm
• Frequency Range: DC- 11 GHz
• Straight DC- 6 GHz:1.3
• Straight 6-14 GHz:1.25
• RF Leakage: - 128 dB DC - 1 GHz
• Power Handling: 60kW - 10kW max
• PIM: -160 dBc

Mechanical Characteristics：

• Engagement Force：15 N (3.37 lb) typical
• Disengagement Force：10 N (2.25 lb) typical
• Retention Force of Interface：550 N (123.65 lb) min
• Connector Durability：500 mating cycles min
• These characteristics are typical and may not apply to all connectors.

Environmental Characteristics：

• Temperature Range：-55°C to +155°C
