![Best MMCX Connectors Jack Straight Crimp Type for Cable RG178 Best MMCX Connectors Jack Straight Crimp Type for Cable RG178](image/cache/catalog/product/rf-coaxial-connector/mcx-mmcx-connector/best-mmcx-connectors-jack-straight-crimp-type-for-cable-rg178-0-500x500.jpg)

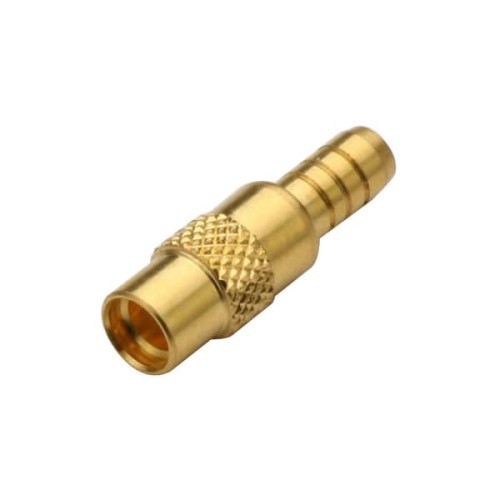

Best MMCX Connectors Jack Straight Crimp Type for Cable RG178
- Cable Connector, jack/female, Straight/180°, 50Ω, Crimp Type,RG178;
- Micro-miniature version of MCX with all features of MCX series conenctor.;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of MMCX Connectors:
Consumer Electronic: Smart phones GPS and wireless antennas,
Aerospace and Defense: GPS
Technology: Technology Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN
from
$2.05
Ex Tax: $2.05
10 or more $1.89
30 or more $1.74
50 or more $1.64
100 or more $1.54
200 or more $1.44
- Stock: In Stock
- Model: JE00002708
- Weight: 10.00g
- SKU: JE00002708
Products Sold: 0
Product Views: 9
Ask a Question About This Product
- Specifications
attribute-list | |
Body Material | Cooper |
Terminal type | Solder Type |
Installation characteristics | None |
Gender | Female |
Function | Other |
Direction | Straight |
Polarity | Standard |
Coating | Gold Plating |
Impedance | 50 Ω |
Installation method | Cable |
Outer conductor connection | Crimp |
- Description
![Best MMCX Connectors Jack Straight Crimp Type for Cable RG178](/image/catalog/product/rf-coaxial-connector/mcx-mmcx-connector/mmcx-crimp-connector-180-degree-plug-for-cable-description0.jpg)
Electrical Characteristics
- Impedance:50 ohm
- Frequency Range: 0~6 Ghz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance ≦ 5.0 mΩ (Milliohms max.)
- Outer Contact Resistance 1.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 1000 mΩ
Mechanical Characteristics
- Coupling: Snap-on/Snap-off
- Contact Retention: 2.3 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: Teflon -65°C ~ +155°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
Part | Material | Finish |
Body | Brass | Gold |
Center Contact Pin | Be-Cu | Gold |
Insulator | PTFE | ------ |
