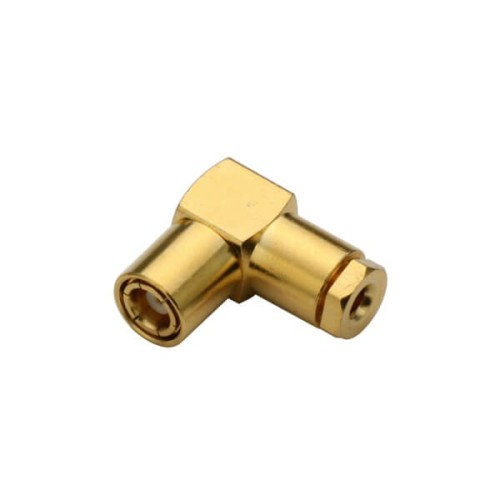

Best SMB Connector Angled Male Clamp Type for Cable RG178

Best SMB Connector Angled Male Clamp Type for Cable RG178
Best SMB Connector Angled Male Clamp Type for Cable RG178
  • Angled/90°, 50Ω,Cable Connector,plug/male,RG178, Clamp Type;
  • Snap-on coupling design for fast installation;
  • With boardband performance and low reflection;
  • To reduce your Cost by using die casting process in non-critical areas.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMB Connectors:

Aerospace and Defense: Test Stands
Technology: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation



- Write a review
from
$3.50
Ex Tax: $3.50
10 or more $3.22
30 or more $2.98
50 or more $2.80
100 or more $2.63
200 or more $2.45
  • Stock: In Stock
  • Model: JE00001974
  • Weight: 10.00g
  • SKU: JE00001974
Products Sold: 0
Product Views: 10
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics None
Gender Male
Function Other
Direction Right Angle
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method Cable
Outer conductor connection Clamp
  • Description
Best SMB Connector Angled Male Clamp Type for Cable RG178

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: 0~4 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage:
    1000 V rms min for RG316, RG402
    750 V rms min. for RG178
  • Working Voltage:
    335 V rms max. for RG316, RG402
    250 V rms max. for RG178
  • Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance  1.5 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 1000 mΩ(Megohms min.)

Mechanical Characteristics

  • Coupling: Snap-on
  • Contact Retention: 4 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: -65°C ~ +155°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

PartMaterialFinish
BodyBrassGold
Center Contact PinBe-CuGold
InsulatorPTFE------
