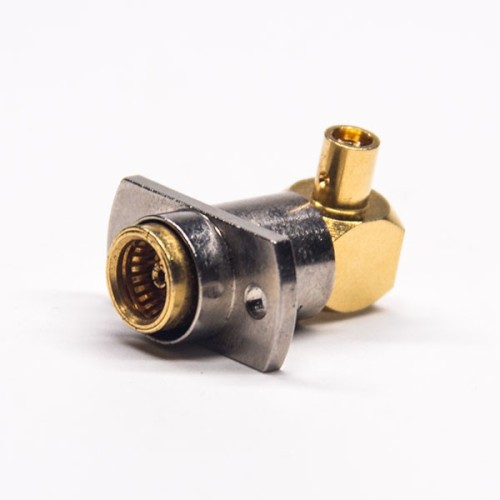

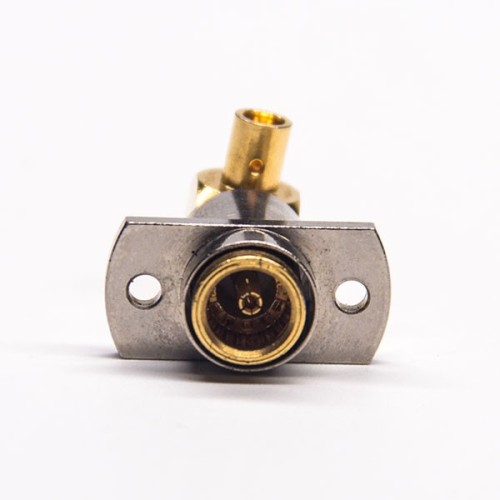

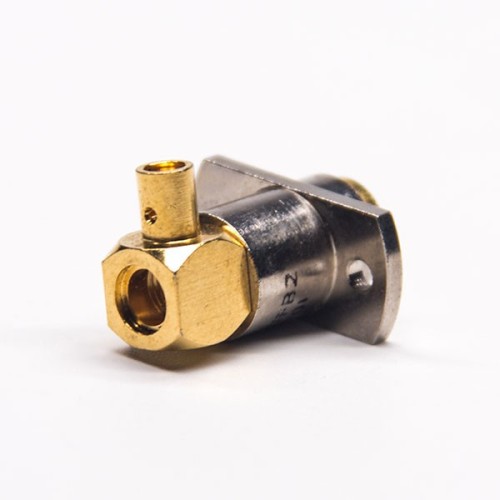

BMA Connector 40GHz Male Connector Right Angle for Cable

BMA Connector 40GHz Male Connector Right Angle for Cable
BMA Connector 40GHz Male Connector Right Angle for Cable
BMA Connector 40GHz Male Connector Right Angle for Cable
BMA Connector 40GHz Male Connector Right Angle for Cable
BMA Connector 40GHz Male Connector Right Angle for Cable
BMA Connector 40GHz Male Connector Right Angle for Cable
BMA Connector 40GHz Male Connector Right Angle for Cable

Features:

  • High Frequency Connector,Microwave Connector,BMA Connector,Male,50 Ohm,Standard,Right Angle,Flange,Panel mount,Waterproof
  • Excellent performance DC to 18 GHz
  • Low VSWR
  • Low Insertion Loss
  • Low RF LeakageSuperior reliability
- Write a review
from
$5.33
Ex Tax: $5.33
10 or more $4.90
30 or more $4.53
50 or more $4.26
  • Stock: In Stock
  • Model: JE00013094
  • Weight: 5.00g
  • SKU: JE00013094
Products Sold: 0
Product Views: 2
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Terminal type Solder Type
Installation characteristics 2 Hole Flange
Gender Male
Function Waterproof
Direction Right Angle
Polarity Standard
Impedance 50 Ω
Installation method Panel Mount
  • Description

Applications:

  • High Speed Digital
  • Instrumentation
  • Military
  • Aerospace
  • Satellite Communication Equipment (SATCOM)
  • Cable Assemblies
  • Test and measurement

BMA Connector 40GHz Male Connector Right Angle for Cable

Electrical Characteristics

  • Impedance: 50 Ohm
  • Frequency range: DC~18GHz
  • Voltage rating: 350 V(rms)
  • Center contact resistance: <3.0mΩ
  • Outer contact resistance: <2.0mΩ
  • VSWR: <1.30

Mechanical Characteristics

  • Center contact retention force: >20 N
  • Coupling test torque: 1.70 Nm
  • Durability: >500 cycles

Environmental Characteristics

  • Temperature Range：-65 ℃~+125 ℃
