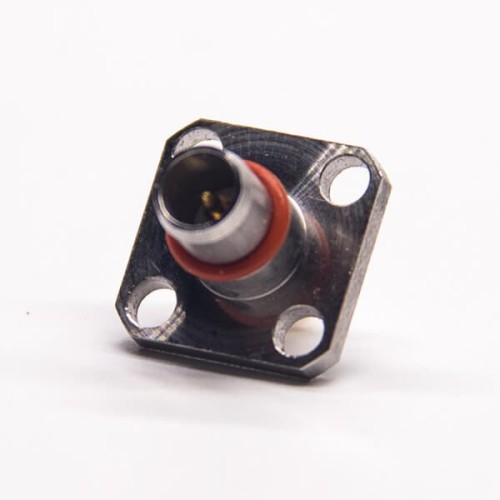

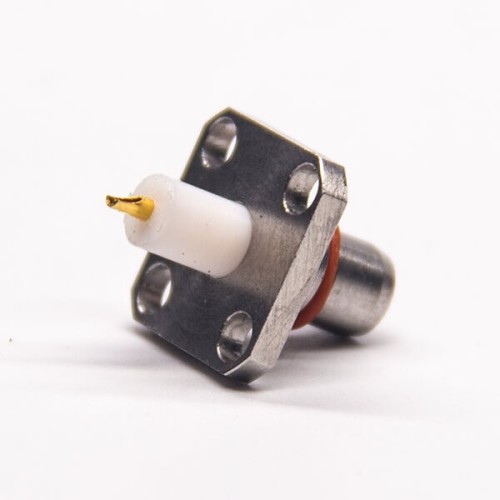

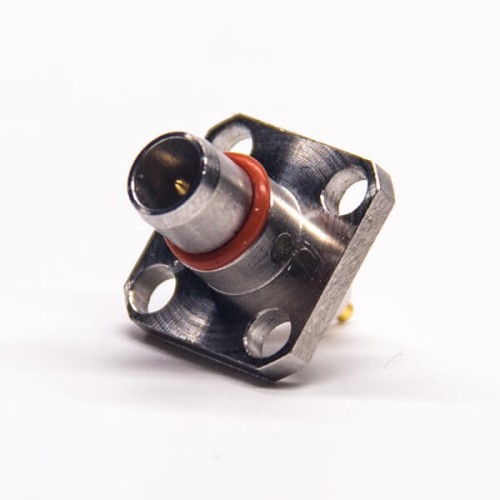

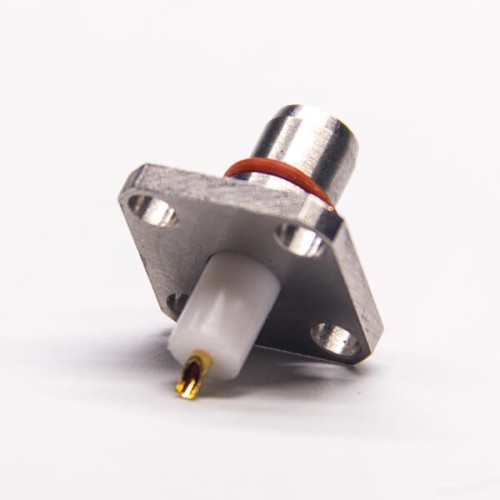

BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof

BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof
BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof

Features:

  • High frequency connector,Microwave connector,BMA connector,male,straight,standard,50 Ohm,cable,flange,solder,waterproof,stainless steel
  • Excellent performance DC to 18 GHz
  • Low VSWR
  • Low Insertion Loss
  • Low RF LeakageSuperior reliability
- Write a review
from
$5.00
Ex Tax: $5.00
10 or more $4.60
30 or more $4.25
50 or more $4.00
  • Stock: In Stock
  • Model: JE00013091
  • Weight: 5.00g
  • SKU: JE00013091
Products Sold: 0
Product Views: 2
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Terminal type Solder Type
Installation characteristics 4 Hole Flange
Gender Male
Function Waterproof
Direction Straight
Polarity Standard
Impedance 50 Ω
Installation method Panel Mount / Cable
Outer conductor connection Solder
  • Description

Applications:

  • High Speed Digital
  • Instrumentation
  • Military
  • Aerospace
  • Satellite Communication Equipment (SATCOM)
  • Cable Assemblies
  • Test and measurement

BMA Male Solder Type Connector Flange with 4 Holes for Cable Waterproof

Electrical Characteristics

  • Impedance: 50 Ohm
  • Frequency range: DC~18GHz
  • Voltage rating: 350 V(rms)
  • Center contact resistance: <3.0mΩ
  • Outer contact resistance: <2.0mΩ
  • VSWR: <1.30

Mechanical Characteristics

  • Center contact retention force: >20 N
  • Coupling test torque: 1.70 Nm
  • Durability: >500 cycles

Environmental Characteristics

  • Temperature Range：-65 ℃~+125 ℃
