BNC Connector HD Video Bulkhead Jack Receptacle for Panel

BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
BNC Connector HD Video Bulkhead Jack Receptacle for Panel
  • Panel Mount, jack/female, Straight/180°,50Ω
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.


- Write a review
from
$3.80
Ex Tax: $3.80
10 or more $3.50
30 or more $3.23
50 or more $3.04
100 or more $2.85
  • Stock: In Stock
  • Model: JE00000668
  • Weight: 10.00g
  • SKU: JE00000668
Products Sold: 0
Product Views: 4

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Zinc Alloy
Terminal type Solder Cup
Installation characteristics 4 Hole Flange
Gender Female
Function Other
Direction Straight
Polarity Standard
Coating Nickel Plating
Impedance 50Ω/75Ω
Installation method Panel Mount
Outer conductor connection Without
  • Description

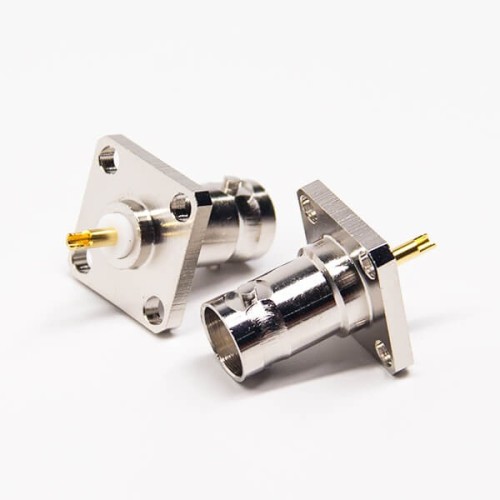

BNC Connector HD Video Bulkhead Jack Receptacle for Panel

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: 0~4 GHz
  • VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
  • Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
  • Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)

Mechanical Characteristics

  • Coupling: bayonet
  • Contact Retention: 6 lbs min.
  • Mating Durability: ≧500 cycles

Environmental Characteristics

  • Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Method 204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

PartMaterialFinish
BodyBrassNickel (Ni)
Center Contact PinBe-CUGold
InsulatorPTFE------
