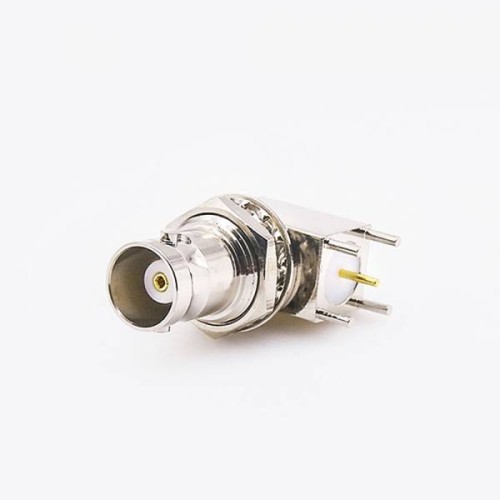

BNC Connector PCB Mount Front Bulkhead Through Hole Female Right Angle
from
$1.33
Ex Tax: $1.33
10 or more $1.22
30 or more $1.13
50 or more $1.06
100 or more $1.00
200 or more $0.93
- Stock: In Stock
- Model: JE00000343
- Weight: 20.00g
- SKU: JE00000343
Products Sold: 0
Product Views: 0
Ask a Question About This Product
- Description
Electrical Characteristics
- Impedance：50ohm/75ohm
- Frequency Range: 0~1 GHz for 75 ohm
- VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧5 × 103 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Method 204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Nickel(Ni) |
| Center Contact Pin | Brass | Gold |
| Insulator | Teflon | White |
