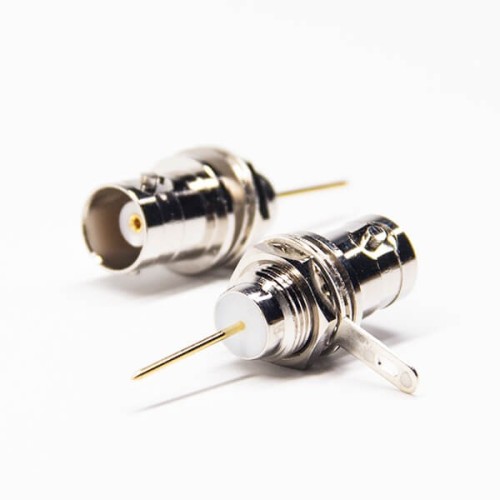

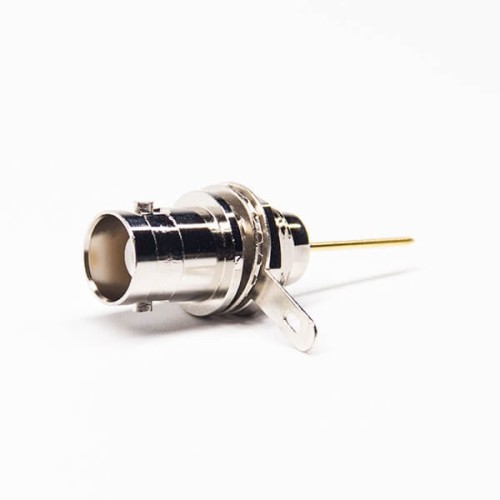

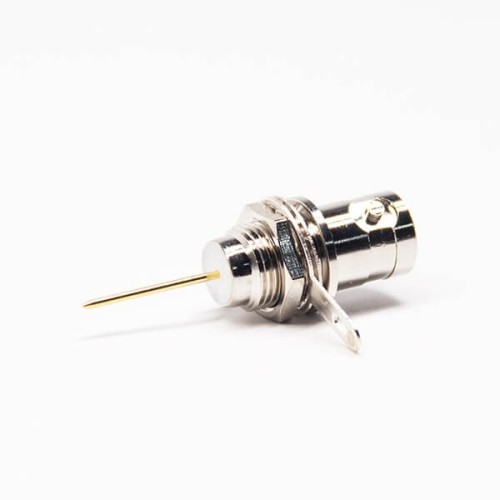

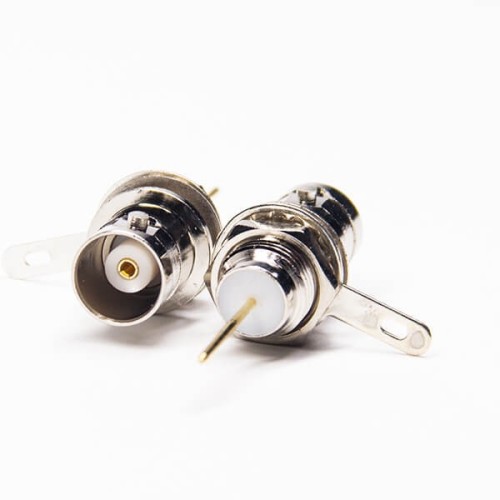

BNC Connector to Coaxial Cable Bulkhead Straight Female

BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
BNC Connector to Coaxial Cable Bulkhead Straight Female
  • Cable Connector, Jack/female, Straight/180°, 50Ω, bulkhead;
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.


- Write a review
from
$1.80
Ex Tax: $1.80
10 or more $1.66
30 or more $1.53
50 or more $1.44
100 or more $1.35
200 or more $1.26
  • Stock: In Stock
  • Model: JE00000580
  • Weight: 10.00g
  • SKU: JE00000580
Products Sold: 0
Product Views: 0

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Zinc Alloy
Terminal type Solder Type
Installation characteristics Bulkhead
Gender Female
Function Other
Direction Straight
Polarity Standard
Coating Nickel Plating
Impedance 50Ω/75Ω
Installation method Panel Mount
Outer conductor connection Without
  • Description
BNC Connector to Coaxial Cable Bulkhead Straight Female

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: 0~4 GHz
  • VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
  • Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
  • Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)

Mechanical Characteristics

  • Coupling: bayonet
  • Contact Retention: 6 lbs min.
  • Mating Durability: ≧500 cycles

Environmental Characteristics

  • Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Method 204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

PartMaterialFinish
BodyBrassNickel (Ni)
Center Contact PinPhos BronzeGold
InsulatorDelrinNatural
