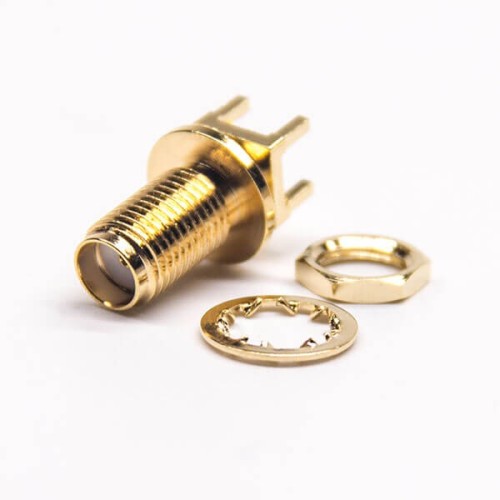

Bulkhead SMA Straight Jack Connector for PCB Through Hole
from
$2.28
Ex Tax: $2.28
10 or more $2.10
30 or more $1.94
50 or more $1.82
100 or more $1.71
200 or more $1.60
- Stock: In Stock
- Model: JE00001178
- Weight: 10.00g
- SKU: JE00001178
Products Sold: 0
Product Views: 9
Ask a Question About This Product
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~18 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178 - Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178 - Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -40°C ~ +165°C
- Vibration: MIL-STD-202 Method204
- Corrosion resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold Plated |
| Center Contact Pin | Beryllium copper | Gold Plated |
| Insulator | PTFE | -- |
