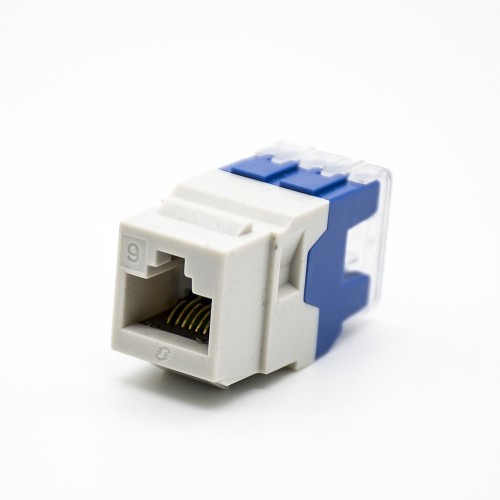

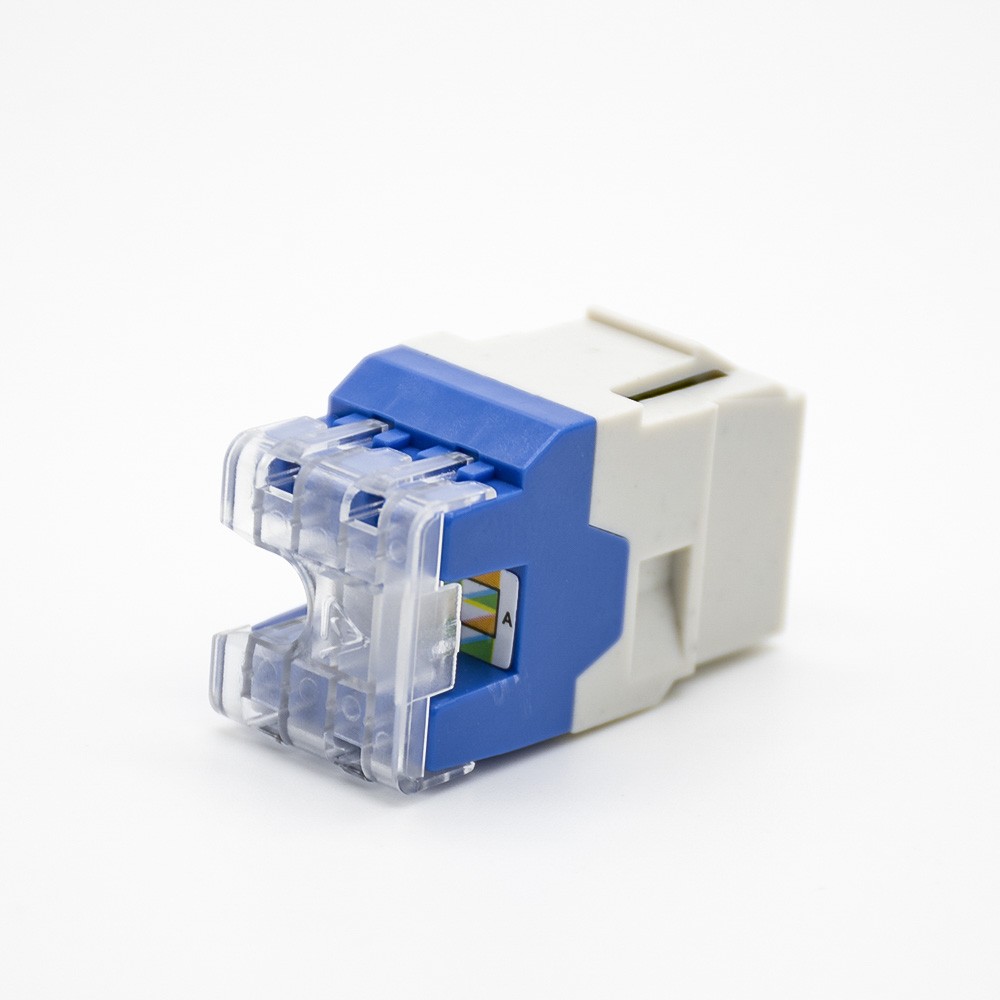

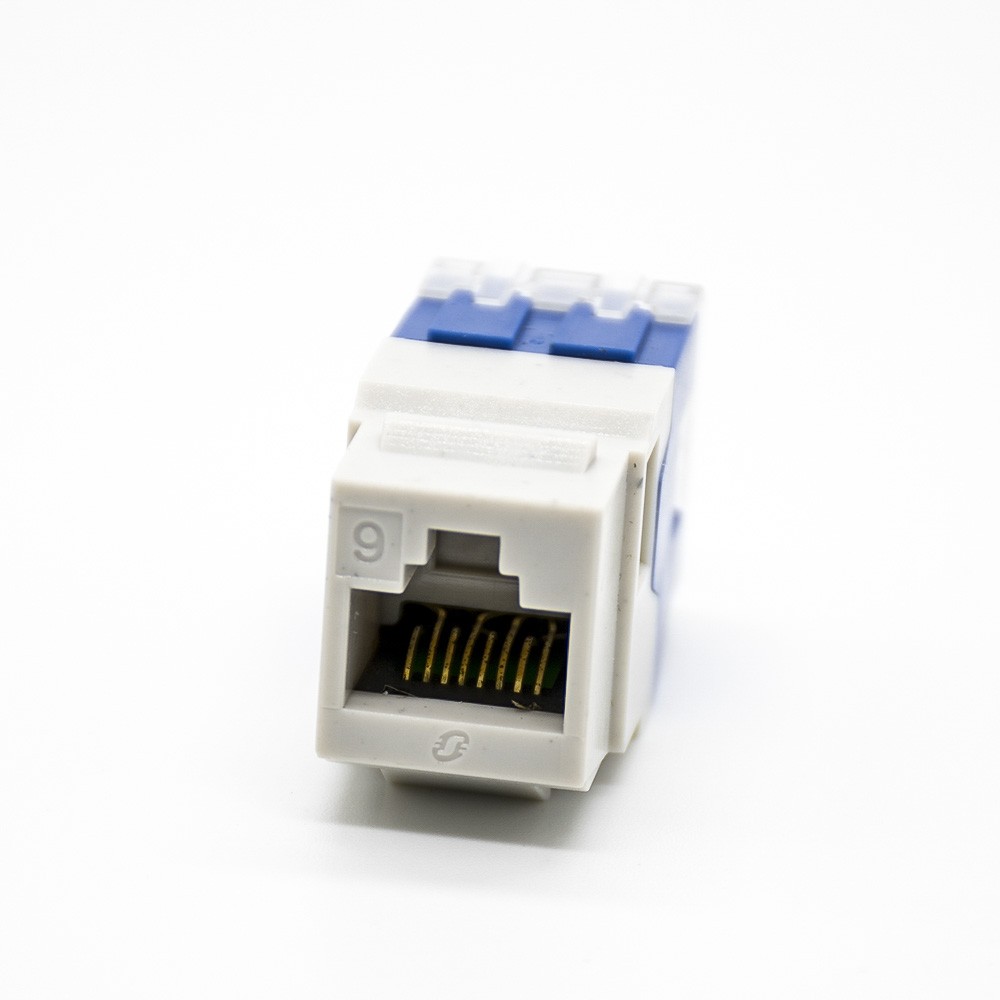

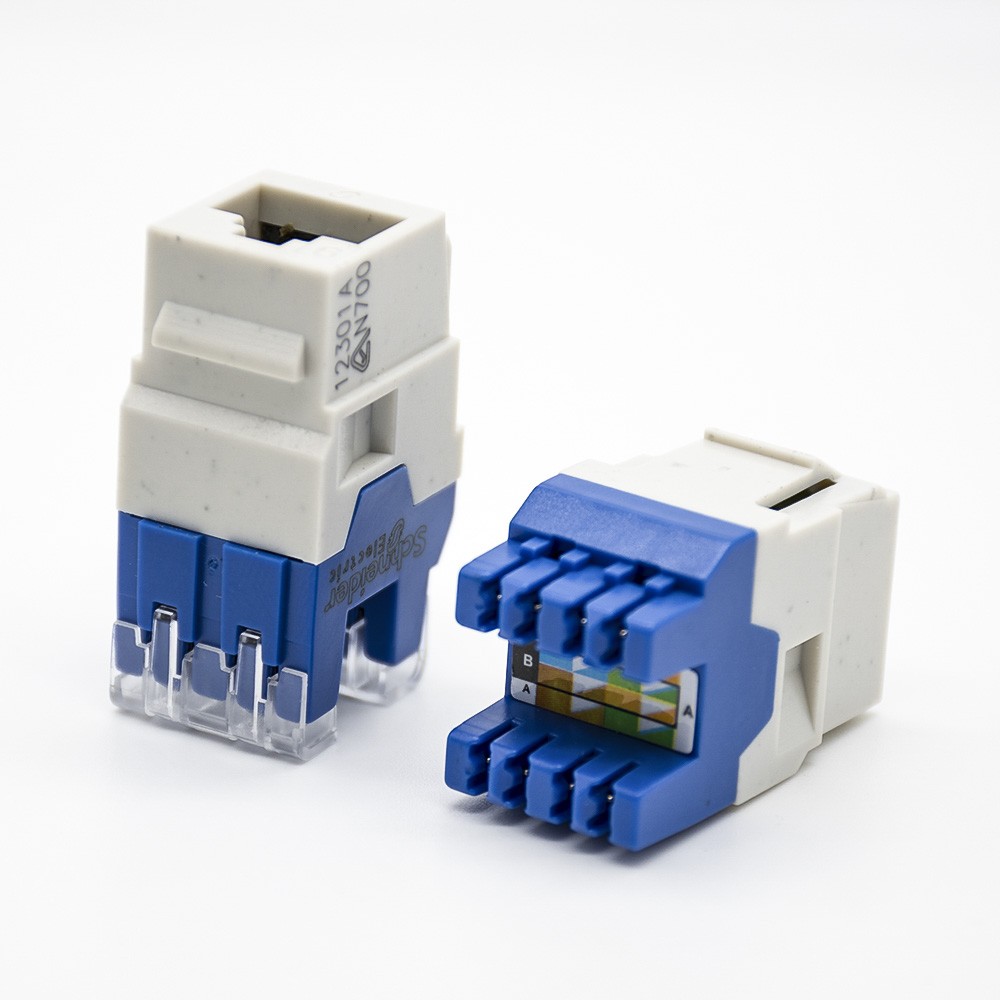

Cat6 RJ45 Jack Straight Single Port Unshielded 8 Pin Network Module
from
$0.75
Ex Tax: $0.75
10 or more $0.69
30 or more $0.64
50 or more $0.60
100 or more $0.56
200 or more $0.53
- Stock: In Stock
- Model: JE00006179
- Weight: 7.20g
- SKU: JE00006179
Products Sold: 0
Product Views: 2
Ask a Question About This Product
- Description
Applications:
- Routers
- Ethernet switches
- ATMs
- Point of sales terminals
- Vending machines
- Set-top boxes
- Technology analysis equipment
- Laptops
- Phone line security systems
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
| Part | Material | Finish |
| Housing | Nylon 46 glass filled | UL94V-0 |
| Shield | Copper Alloy | Nickel Plating |
| Contact | Copper Alloy | Au over nickel |
