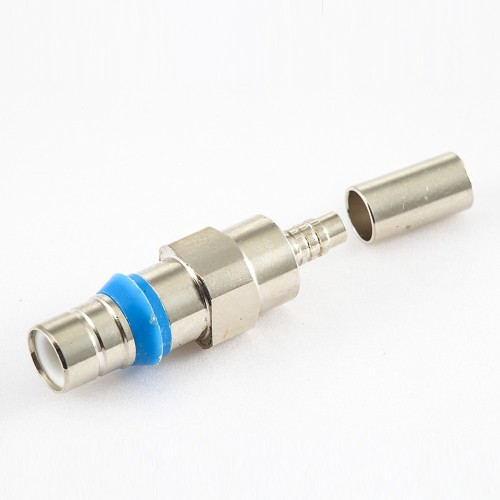

Crimp Type SMZ (BT43) Connector Male Straight SYV75-2-2 Cable
from
$1.67
Ex Tax: $1.67
10 or more $1.53
30 or more $1.42
50 or more $1.33
100 or more $1.25
200 or more $1.17
- Stock: In Stock
- Model: JE00003506
- SKU: JE00003506
Products Sold: 0
Product Views: 6
Ask a Question About This Product
- Description
Appliance:
- Small electronic equipment
- Network system
Electrical Characteristics
- Impedance：50 Ω
- Rated voltage : 500V
- Frequency Range: DC- 4 GHz
- Voltage resistance : 1000 V
- Contact resistance : inner conductor : ≤ 6.0 mΩ /outer conductor : ≤ 2.0 mΩ
- VSWR :≤ 1.30
- Insultation Resistance: ≧ 1000 mΩ
Mechanical Characteristics
- Connector Durability：500 cycles
Environmental Characteristics
- Temperature Range: -40⁰C to +100⁰C
Material:
- Needle : brass, gold plated
- Plug : beryllium bronze, gold plated
- Shells and other metal parts : brass, gold or nickel plating
- Insulator : PTFE
- Wire clip : brass, nickel plating
- Sealing ring : silicone rubber
Note : The parameters are only for reference. If there are special requirements for the parameters, please contact us for confirmation.
