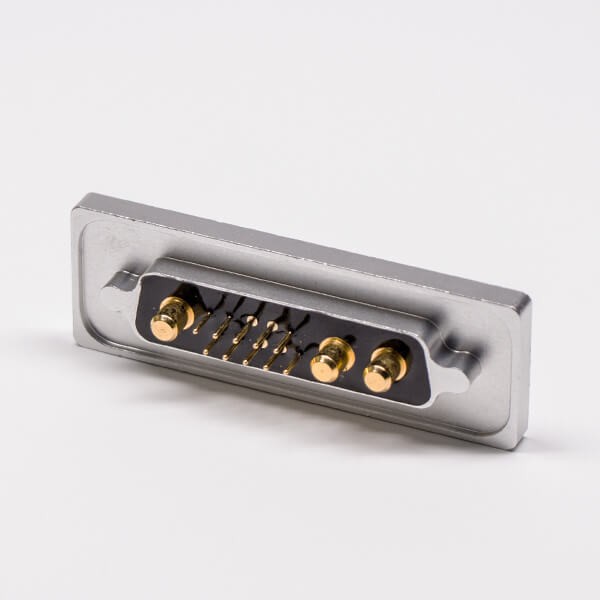

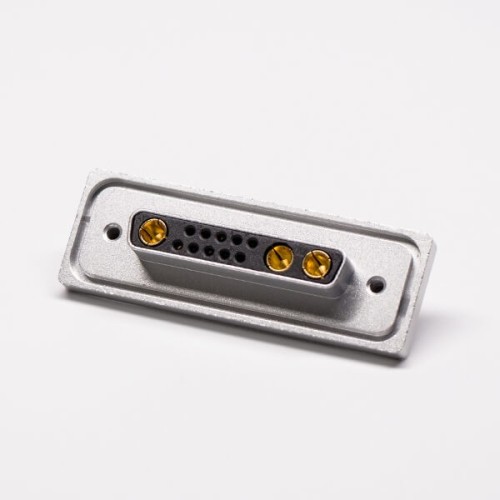

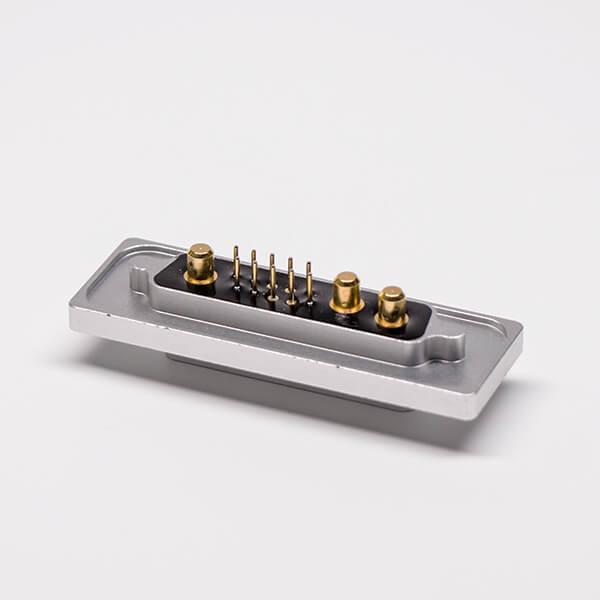

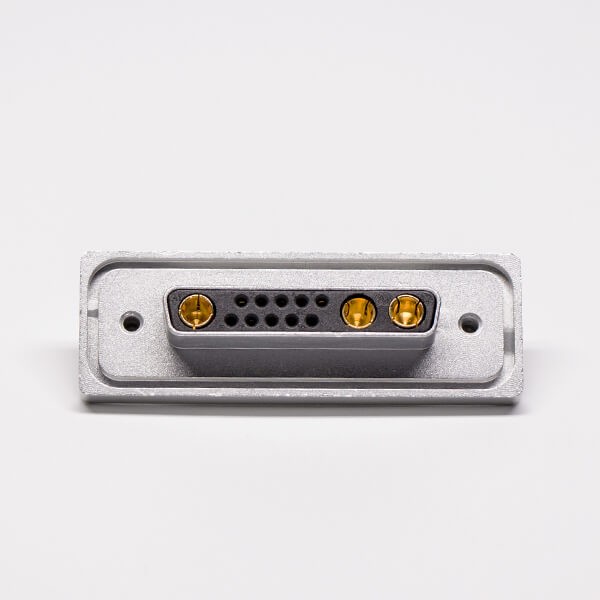

D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount

D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount
D sub 13w3 Waterproof Jack 180° Power Through Hole for PCB Mount

Features:

  • Power D-sub,Waterproof,Female/Jack,Straight/180°,Machined,13w3,PCB Mount,Through Hole;
  • Interfacial seal to ensure function even when immersed;
  • Better against mechanical impacts during installation;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • industrial machinery
  • medical equipment
  • test and measurement equipment

communications

from
$27.80
Ex Tax: $27.80
10 or more $25.58
30 or more $23.63
  • Stock: In Stock
  • Model: JE00004454
  • Weight: 19.80g
  • SKU: JE00004454
Products Sold: 0
Product Views: 2
  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Shell (M3.0)
Connector Type Socket
Number of Positions 13W3
Continuous plating machined pin
Direction Straight
Number of Rows 2
Filter No
Waterproof level IP67
Port number Single
Installation method PCB Mount
  • Description

Electrical Characteristics

  • Contact resistance:10 mOhm
  • Current rating signal:7,5 A
  • Dielectric with standing voltage signal:1000 V
  • Working voltage signal:125 V
  • Test voltage:1000V

Mechanical Characteristics

  • Extraction force:30N
  • Insertion force:30N

Environmental Characteristics

  • Operating Temperature:-25°C~ +125°C

Material:

PartMaterialFinish
Body steelTin
Center Contact PinCopper alloy    hard acid gold over nickel
Insulator Polyester GF, UL 94V-0
------
