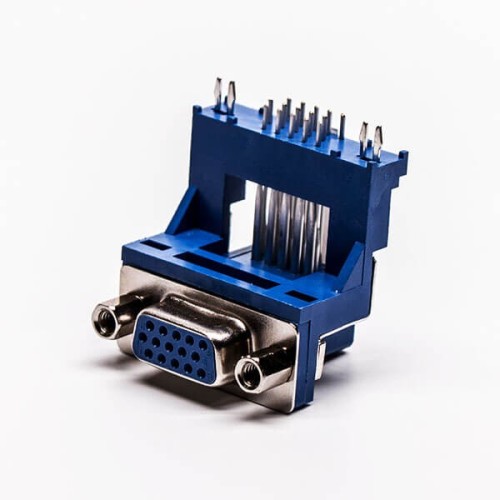

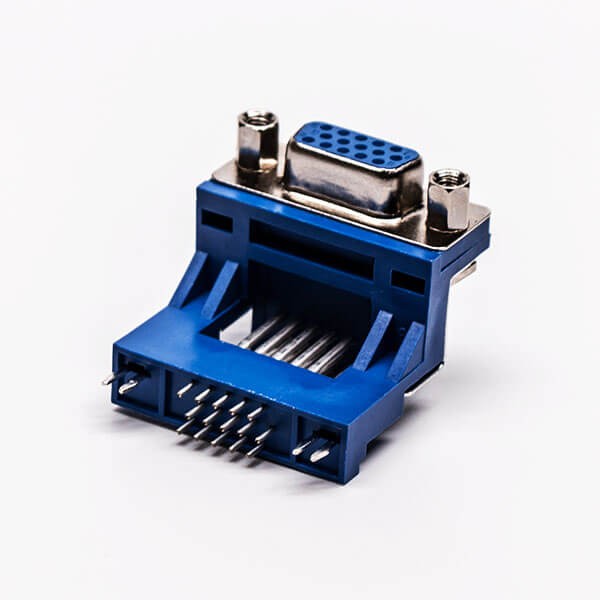

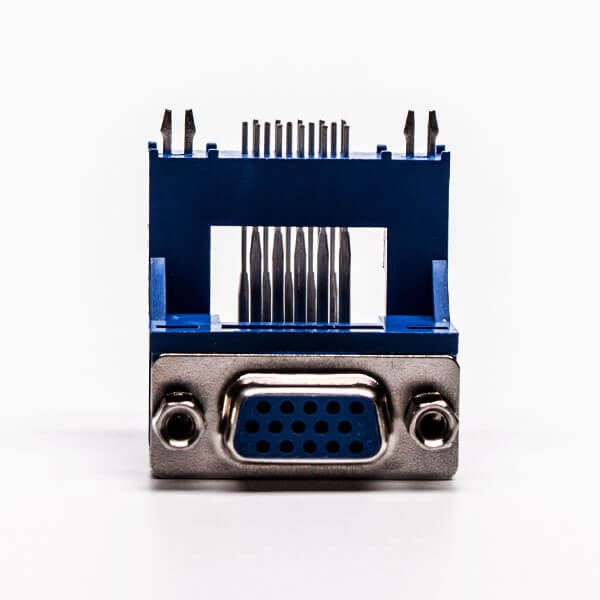

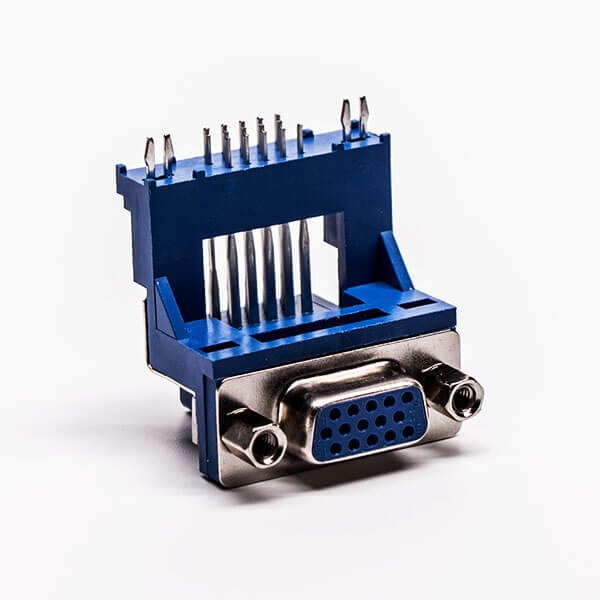

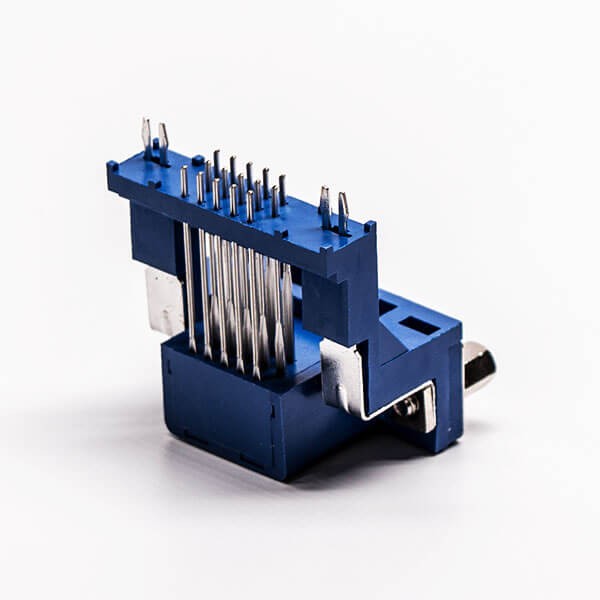

D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole

D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole
D sub 15 Pin Female 90° Degree Elevated Staking Type Though Hole

Features:

  • D-sub Connector,High density,Right Angled/90°,Female/Jack,15 Pin,Blue,Pcb Mount,elevated
  • Metal shell provides EMI/RFI shielding;
  • High density design maximizes board space;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$3.13
Ex Tax: $3.13
10 or more $2.88
30 or more $2.66
50 or more $2.50
100 or more $2.35
  • Stock: In Stock
  • Model: JE00004008
  • Weight: 16.70g
  • SKU: JE00004008
Products Sold: 0
Product Views: 3
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Front Open Screwlock(4-40)
Connector Type Socket
Number of Positions 15 pin
Continuous plating stamped pin
Direction Right Angle
Number of Rows 3
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method PCB Mount
  • Description

Applications:

  • data transmission
  • Consumer Electronics
  • telecommunications
  • measurement
  • regulation and control devices
  • Military Equipment

Electrical Characteristics

  • Contact resistance :10 mOhm
  • Current rating signal:3 A
  • Working voltage:60 V
  • Dielectric with standing voltage signal:1000 V
  • Insulation resistance: 5000mΩ min

Mechanical Characteristics

  • Extraction force:<50 N
  • Insertion force：<50 N
  • Mating cycles ：50

Environmental Characteristics

  • Operating Temperature：-55°C~ + 105°C

Material:

PartMaterialFinish
Body SPCC steelTin
Center Contact PinCopper alloy------
InsulatorGlass Filled Thermoplastic (UL94V-0)
Black
