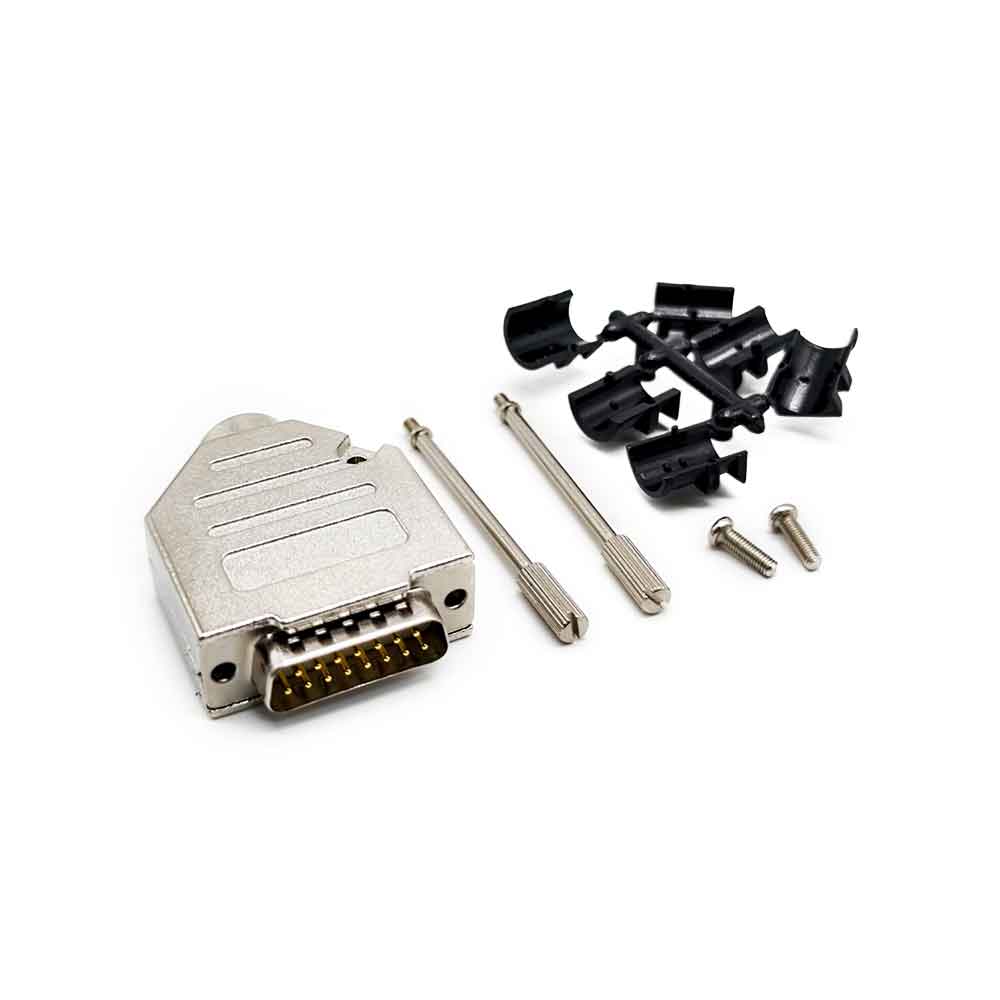

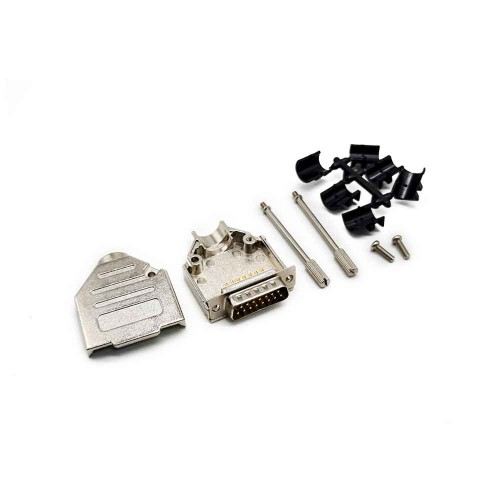

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell

Features:

  • D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
  • Precision turned contacts;
  • D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$6.00
Ex Tax: $6.00
  • Stock: In Stock
  • Model: JE00003900
  • Weight: 35.22g
  • SKU: JE00003900
Products Sold: 0
Product Views: 8
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Installation characteristics Front Open Screwlock(4-40)
Connector Type Machined D-sub
Gender Male
Number of Positions 15 pin
Continuous plating machined pin
Direction Straight
Filter No
Waterproof level Not Waterproof
Installation method Cable/PCB Mount/Panel Mount
  • Description

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics

Electrical Characteristics

  • Voltage Rating :300 V AC/rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance：5000MΩ
  • Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

  • Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

                                             DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part Material Finish
Body Steel -------
Center Contact Pin Brass Gold
Insulator Glass-filled thermoplastic
------

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
