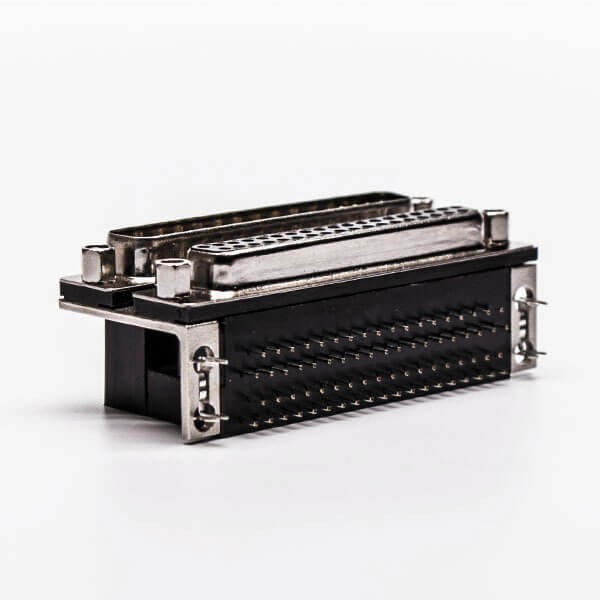

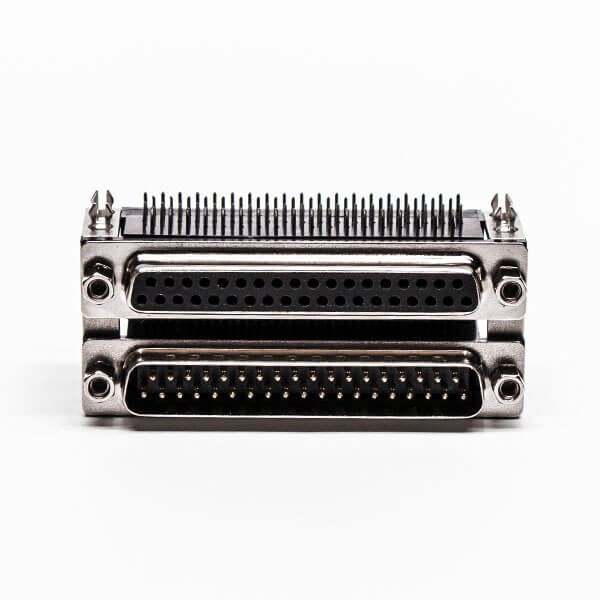

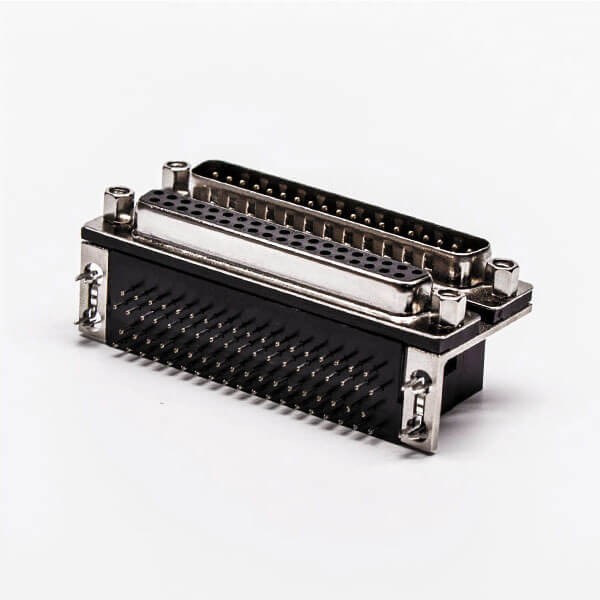

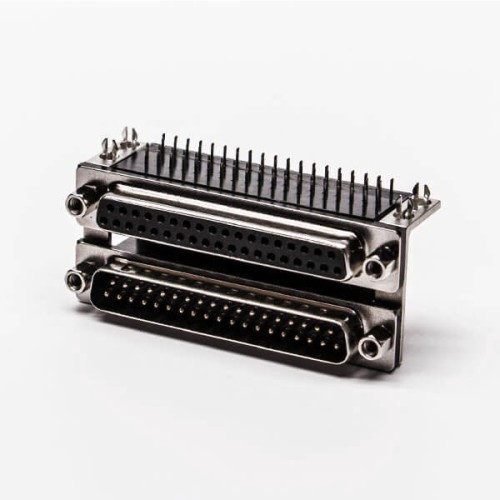

D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket

D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket

Features:

  • D-sub,Stacked,Male/Plug,Angled/90°,Through Hole,PCB Mount,Black;
  • Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
  • Inserts are flame-retardant thermoplastic;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$7.17
Ex Tax: $7.17
10 or more $6.60
30 or more $6.09
50 or more $5.74
100 or more $5.38
  • Stock: In Stock
  • Model: JE00004057
  • Weight: 53.00g
  • SKU: JE00004057
Products Sold: 0
Product Views: 6
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Front Open Screwlock(4-40)
Connector Type one pair (Plug and Socket)
Number of Positions 37 pin
Continuous plating stamped pin
Direction Right Angle
Number of Rows 2
Filter No
Waterproof level Not Waterproof
Port number Dual
Installation method PCB Mount
  • Description

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics

Electrical Characteristics

  • Voltage Rating :250V AC/ rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance 1000MΩ at 500V DC
  • Contact Resistance 20 mΩ max.

Mechanical Characteristics

  • Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
  • Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

  • Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part Material Finish
Body Steel -------
Center Contact Pin Brass Gold
Insulator Glass-filled thermoplastic
------



D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket

D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket

D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket

D Sub 37 Male Female Connector to Audio R/A Stacked Type Black Socket
