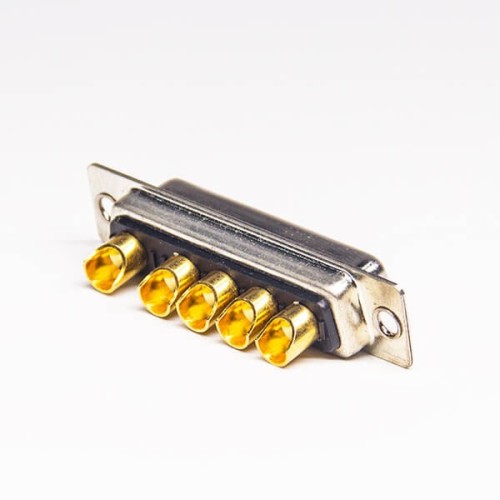

D sub 5W5 Machined Pin Straight Female Nickel Plating Solder Type
from
$6.13
Ex Tax: $6.13
10 or more $5.64
30 or more $5.21
50 or more $4.90
100 or more $4.60
- Stock: In Stock
- Model: JE00004377
- Weight: 14.78g
- SKU: JE00004377
Products Sold: 0
Product Views: 1
Ask a Question About This Product
- Description
Applications:
- medical electronics
- wireless outdoor telecom systems
- industrial automation
- oil exploration
- printers and displays
- diagnostic systems
Electrical Characteristics
- Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
- Frequency range: 0 -1 GHz
- VSWR: 1.4 (+0.04/GHz)
- Characteristic Impedance:50 Ohms
- Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
- Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
- Contact Resistance ≤5 milliohms
Mechanical Characteristics
- Mechanical operations ：up to 500
Environmental Characteristics
- Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)
Material:
| Part | Material | Finish |
| Body | Steel with tin | ------- |
| Center Contact Pin | Female：bronze Male：brass | Gold |
| Insulator | High temperature black thermoplastic | ------ |
