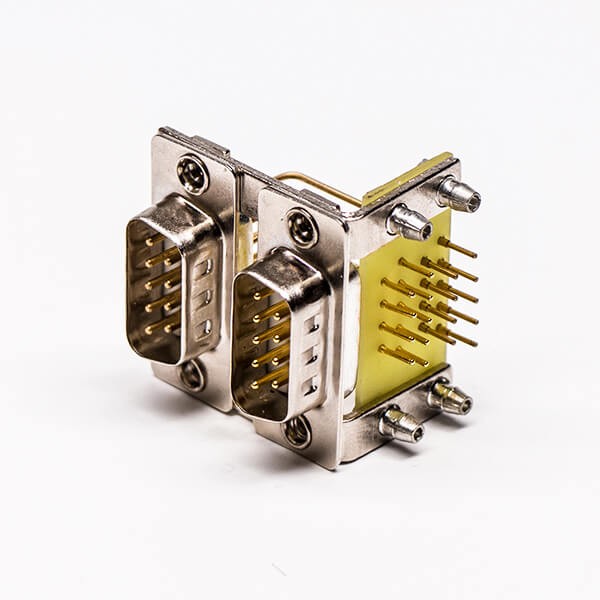

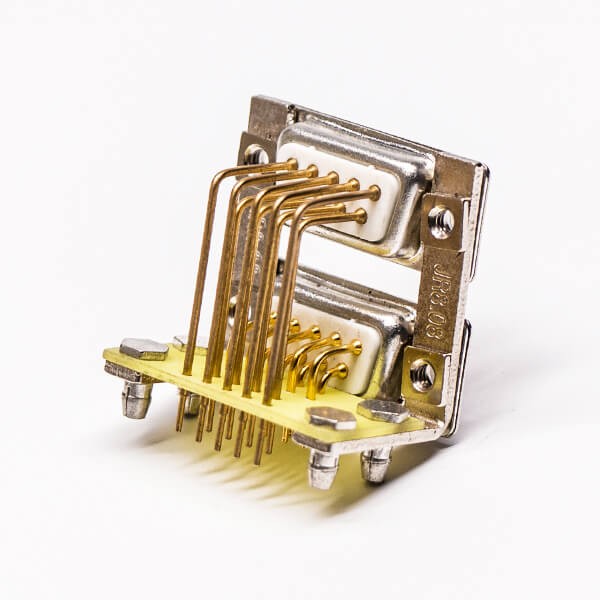

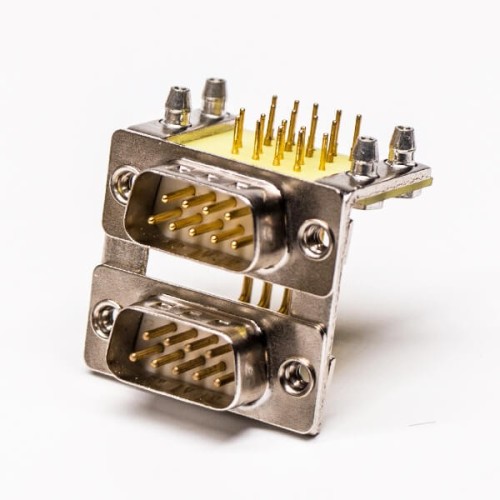

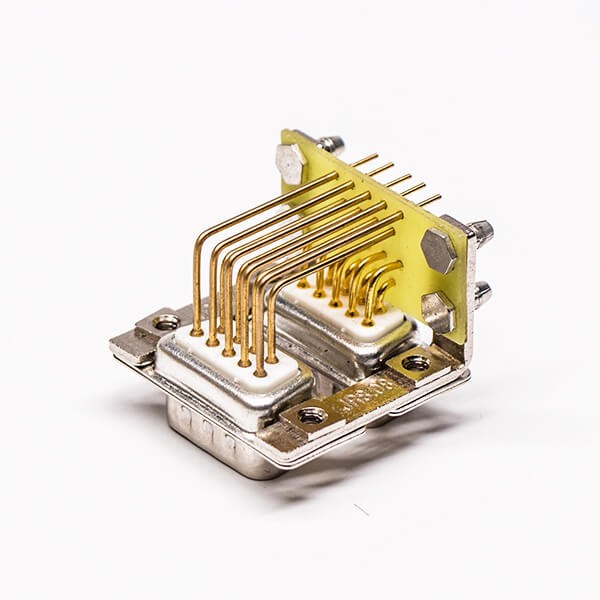

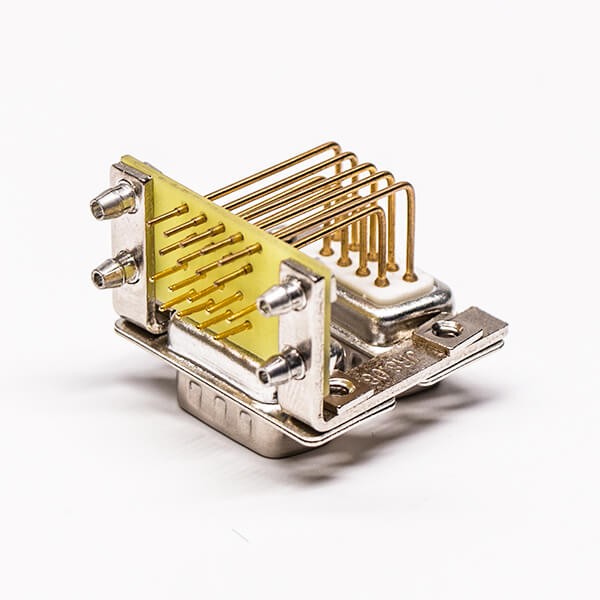

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

Features:

  • D-sub Connector,Right Angled/90°,Male/Plug,Stacked,Staking,Machined Pin,type,19.05,PCB Mount,through Hole;
  • Precision turned contacts;
  • D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$12.88
Ex Tax: $12.88
10 or more $11.85
30 or more $10.95
50 or more $10.30
  • Stock: In Stock
  • Model: JE00004483
  • Weight: 19.60g
  • SKU: JE00004483
Products Sold: 0
Product Views: 7
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Shell (M3.0)
Connector Type Plug
Number of Positions 9 pin
Continuous plating machined pin
Direction Right Angle
Number of Rows 2
Filter No
Waterproof level Not Waterproof
Port number Dual
Installation method PCB Mount
  • Description

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics

Electrical Characteristics

  • Voltage Rating :300 V AC/rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance：5000MΩ
  • Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

  • Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

                                             DF: -67°F (-55°C) to + 257°F (125°C)

Material:

PartMaterialFinish
BodySteel-------
Center Contact PinBrassGold
InsulatorGlass-filled thermoplastic
------

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
