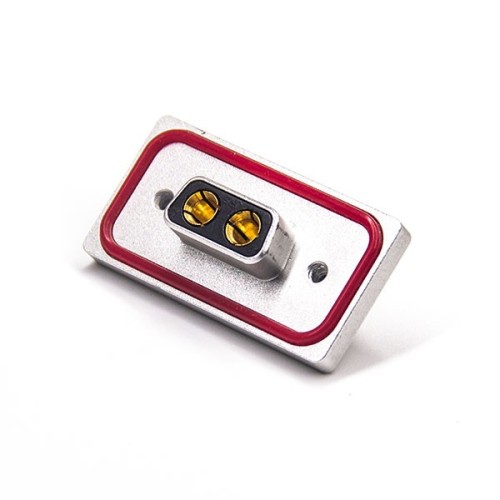

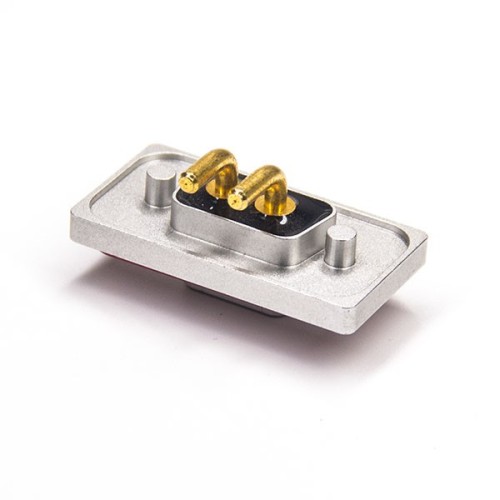

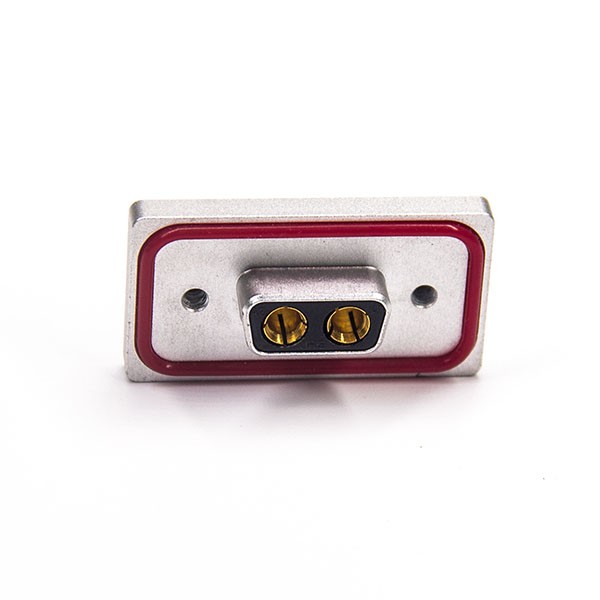

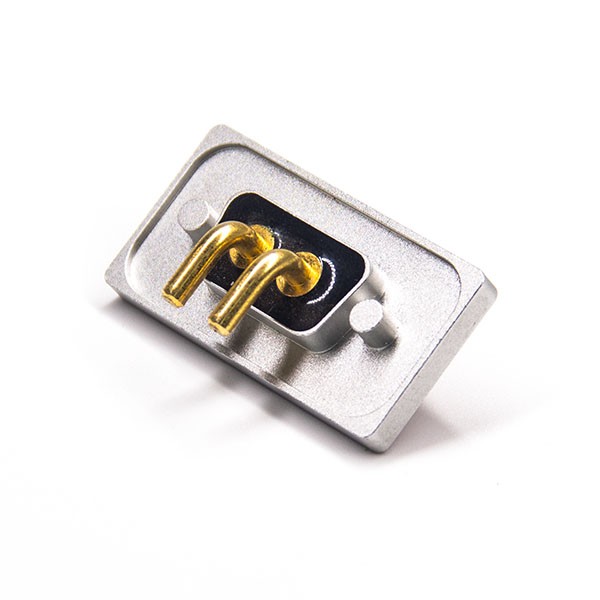

D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector

D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector
D sub 2v2 IP67 Waterproof D-sub Aluminum Alloy D-sub 2V2 Female BoarD Mount Connector

Features:

  • Waterproof D-sub,Plug,44 Pin,2 Rows,Single Port,Machined Pin,Gold plated,Solder Cup,Cable,Rear Open Screwlock,IP67,Without Filtered
  • Interfacial seal to ensure function even when immersed;
  • Better against mechanical impacts during installation;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • industrial machinery
  • medical equipment
  • test and measurement equipment

communications

from
$10.09
Ex Tax: $10.09
10 or more $9.28
30 or more $8.58
50 or more $8.07
  • Stock: In Stock
  • Model: JE00004158
  • Weight: 15.80g
  • SKU: JE00004158
Products Sold: 0
Product Views: 0

Available Options

  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Shell (M3.0)
Connector Type Socket
Number of Positions 2V2
Continuous plating machined pin
Direction Right Angle
Number of Rows 1
Filter No
Waterproof level IP67
Port number Single
Installation method PCB Mount
  • Description

Electrical Characteristics

  • Contact resistance:10 mOhm
  • Current rating signal:7,5 A
  • Dielectric with standing voltage signal:1000 V
  • Working voltage signal:125 V
  • Test voltage:1000V

Mechanical Characteristics

  • Extraction force:30N
  • Insertion force:30N

Environmental Characteristics

  • Operating Temperature:-25°C~ +125°C

Material:

Part Material Finish
Body  steel Tin
Center Contact Pin Copper alloy     hard acid gold over nickel
Insulator  Polyester GF, UL 94V-0
------
