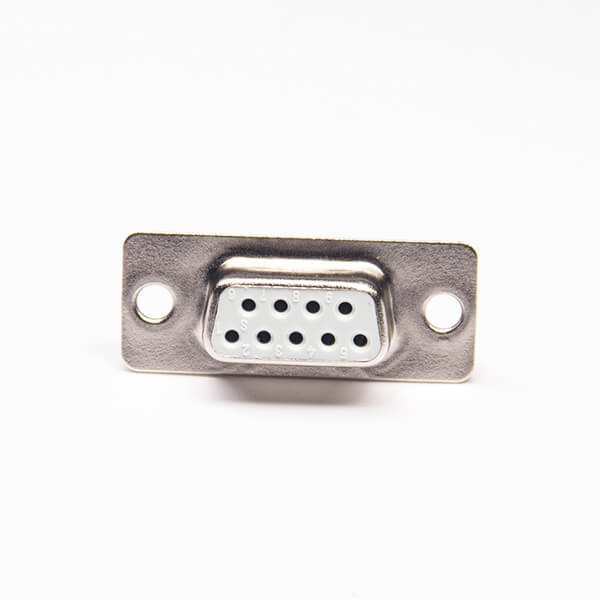

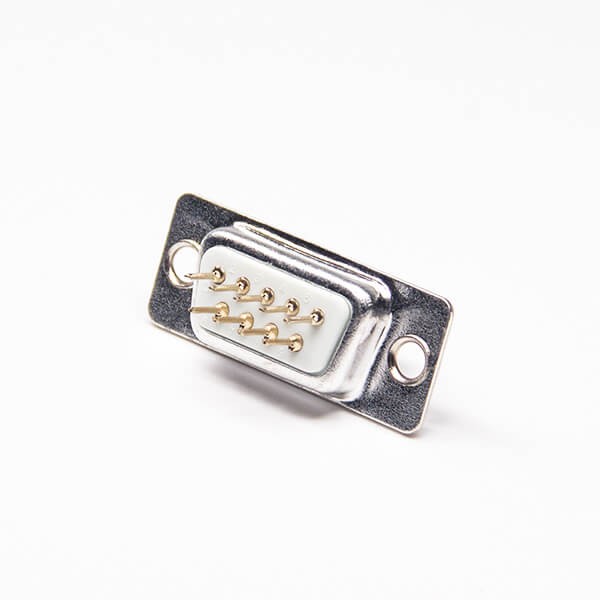

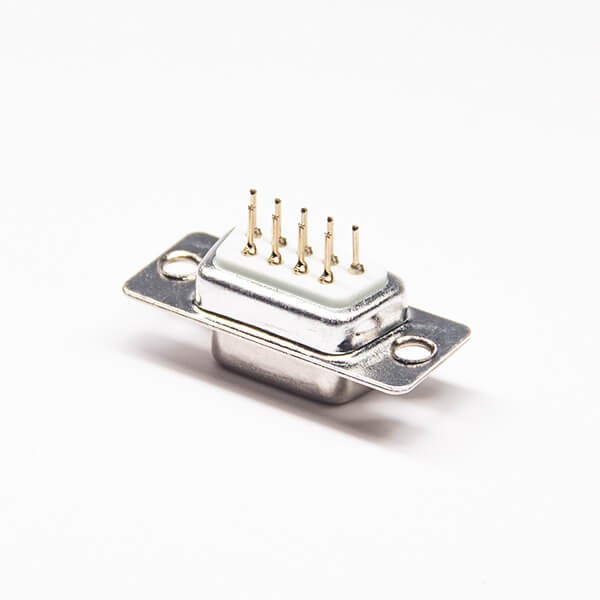

d sub 9 Pin Connector Female White insulator Male Stamped Pin Straight Through Hole 4pcs
from
$1.17
Ex Tax: $1.17
10 or more $1.08
30 or more $0.99
50 or more $0.94
100 or more $0.88
200 or more $0.82
- Stock: In Stock
- Model: JE00004397
- Weight: 15.78g
- SKU: JE00004397
Products Sold: 0
Product Views: 0
Ask a Question About This Product
- Description
Applications:
- Business equipment
- Electronic office systems
- Data communications
- Technology equipment
- Mobile communications
- Consumer electronics
Electrical Characteristics
- Voltage Rating :250V AC/ rms 50Hz
- Withstanding Voltage :1000V AC/ rms 50Hz for one minute
- Insulation Resistance 1000MΩ at 500V DC
- Contact Resistance 20 mΩ max.
Mechanical Characteristics
- Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
- Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Environmental Characteristics
- Operating Temperature:-67°F (-55°C) to +257°F (125°C)
Material:
| Part | Material | Finish |
| Body | Steel | ------- |
| Center Contact Pin | Brass | Gold |
| Insulator | Glass-filled thermoplastic | ------ |
