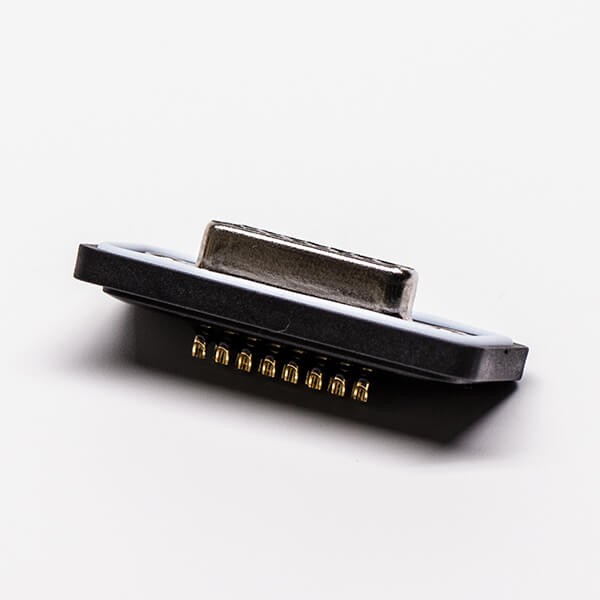

DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs

DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs
DB 15 Waterproof Insulation Female Straight Connector for Cable 20pcs

Features:

  • D-sub,Waterproof,Female/Jack,Straight/180°,Machined,9 Pin,Cable Connector,Solder Type;
  • Interfacial seal to ensure function even when immersed;
  • Better against mechanical impacts during installation;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • industrial machinery
  • medical equipment
  • test and measurement equipment

communications

from
$248.04
Ex Tax: $248.04
  • Stock: In Stock
  • Model: JE00004180
  • Weight: 13.80g
  • SKU: JE00004180
Products Sold: 0
Product Views: 1
  • Specifications
attribute-list
Terminal type Solder Cup
Installation characteristics Shell (M3.0)
Connector Type Socket
Number of Positions 15 pin
Continuous plating machined pin
Direction Straight
Number of Rows 2
Filter No
Waterproof level IP67
Port number Single
Installation method Cable
  • Description

Electrical Characteristics

  • Contact resistance:10 mOhm
  • Current rating signal:7,5 A
  • Dielectric with standing voltage signal:1000 V
  • Working voltage signal:125 V
  • Test voltage:1000V

Mechanical Characteristics

  • Extraction force:30N
  • Insertion force:30N

Environmental Characteristics

  • Operating Temperature:-25°C~ +125°C

Material:

PartMaterialFinish
Body steelTin
Center Contact PinCopper alloy    hard acid gold over nickel
Insulator Polyester GF, UL 94V-0
------
