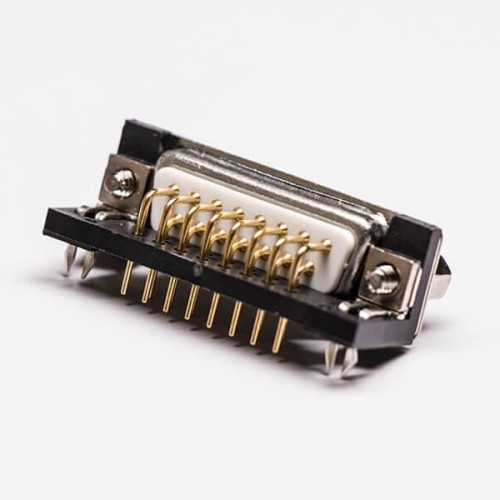

Features:

  • D-sub,Machined,Angle/90°,Male/Plug,15 Pin,Though Hole,PCB Mount
  • Precision turned contacts;
  • D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
from
$25.56
Ex Tax: $25.56
  • Stock: In Stock
  • Model: JE00004198
  • Weight: 11.50g
  • SKU: JE00004198
Products Sold: 0
Product Views: 1
  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Front Open Screwlock(4-40)
Connector Type Plug
Number of Positions 15 pin
Continuous plating machined pin
Direction Right Angle
Number of Rows 2
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method PCB Mount
  • Description

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics

Electrical Characteristics

  • Voltage Rating :300 V AC/rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance:5000MΩ
  • Contact Resistance:D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

  • Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

                                             DF: -67°F (-55°C) to + 257°F (125°C)

Material:

PartMaterialFinish
BodySteel-------
Center Contact PinBrassGold
InsulatorGlass-filled thermoplastic
------
