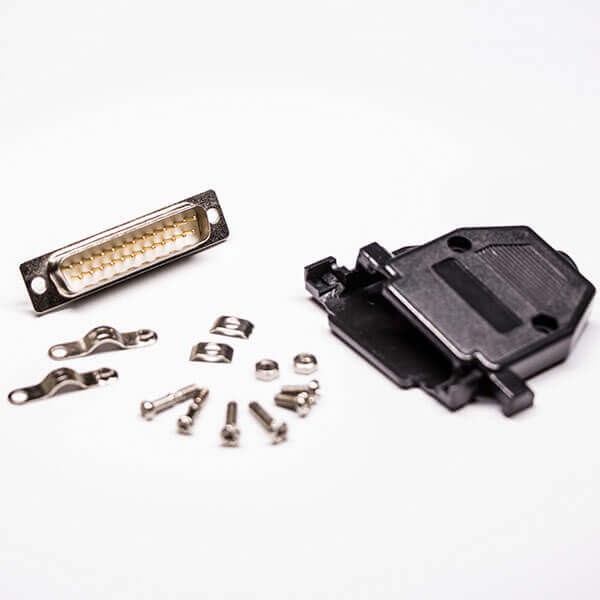

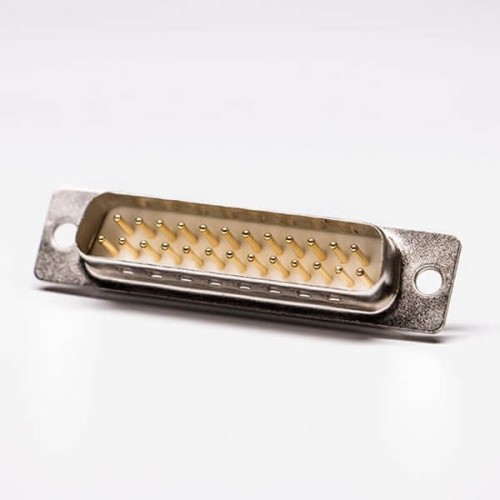

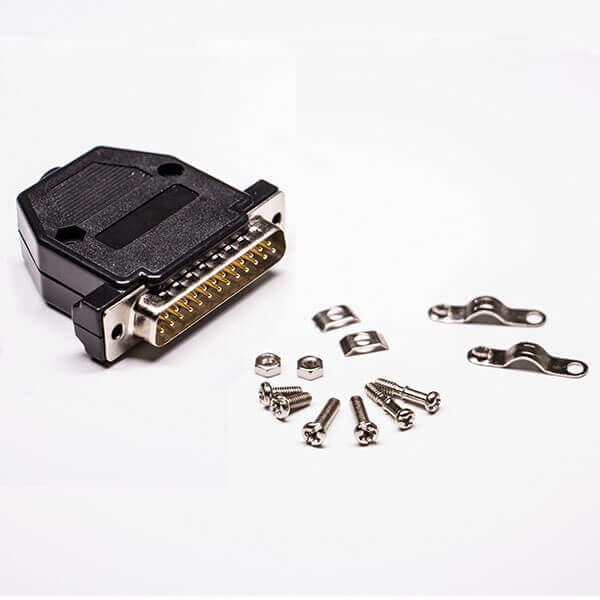

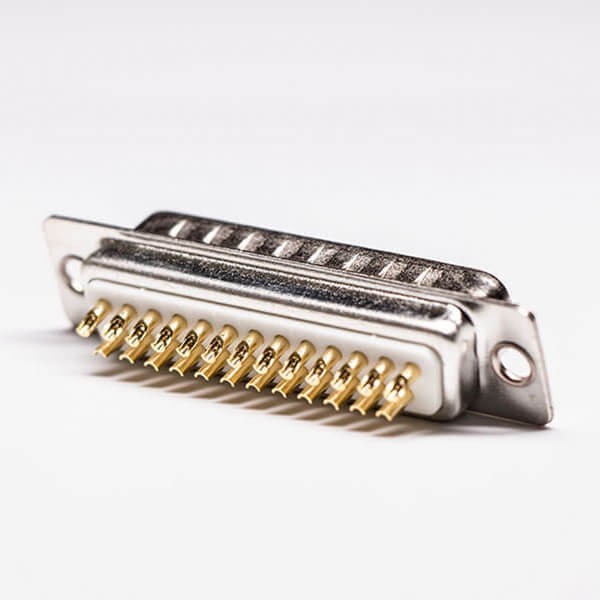

DB 25 Male Connector used with Coaxial Cable Straight Solder Type

DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type
DB 25 Male Connector used with Coaxial Cable Straight Solder Type

Features:

  • D-sub,Machined,Straight/180°,Male/Plug,25 Pin,Cable Connector,stamped pin;
  • Precision turned contacts;
  • D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$2.30
Ex Tax: $2.30
10 or more $2.12
30 or more $1.96
50 or more $1.84
100 or more $1.73
200 or more $1.61
  • Stock: In Stock
  • Model: JE00004480
  • Weight: 25.50g
  • SKU: JE00004480
Products Sold: 0
Product Views: 6
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Cup
Installation characteristics Shell (Unthreaded)
Connector Type Plug
Number of Positions 25 pin
Continuous plating machined pin
Direction Straight
Number of Rows 2
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method Cable
  • Description

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics

Electrical Characteristics

  • Voltage Rating :300 V AC/rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance：5000MΩ
  • Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

  • Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

                                             DF: -67°F (-55°C) to + 257°F (125°C)

Material:

PartMaterialFinish
BodySteel-------
Center Contact PinBrassGold
InsulatorGlass-filled thermoplastic
------

DB 25 Male Connector used with Coaxial Cable Straight Solder Type

DB 25 Male Connector used with Coaxial Cable Straight Solder Type

DB 25 Male Connector used with Coaxial Cable Straight Solder Type

DB 25 Male Connector used with Coaxial Cable Straight Solder Type
